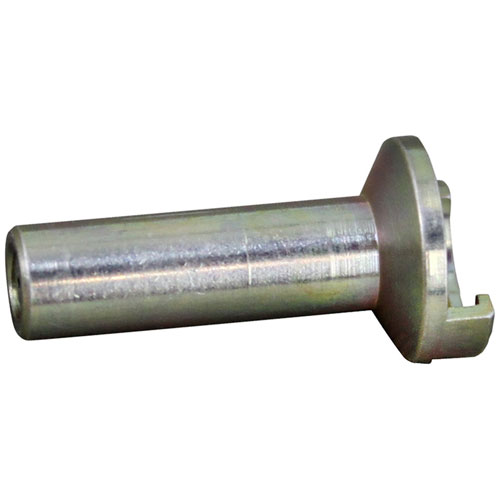

Garland 2200702 Range Pilot Orifice Natural Gas #32

SKU: 2200702 1-2200702 Brand:
Garland
Availability:
In Stock
(1)
$18.86 Price reduced from $24.17
Save $5.31
Have a Question? +1 (866) 863-0907

Specifications:

  • Nat Orifice #32 For Pilot H1004, # 511286
  • For Lp Orifice Use A2895, Q-450, # 262305

Description

The Garland 2200702 Range Pilot Orifice #32 is used to regulate the flow of natural gas to the pilot burner of commercial cooking equipment. The calibrated opening of the orifice maintains the necessary amount of fuel to be introduced to the pilot flame to ensures ignition of the main burners. It goes through the pilot assembly and connects to the gas delivery system of the appliance. It is also used in the combustion system to stabilize the pilot flame properties to ensure stable ignition performance and efficient operation in the normal cooking cycles.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 0.75 in
  • Height: 0.38 in
  • Width: 0.38 in

GARLAND:

GL2200702

Step1: Turn off the gas supply and allow the appliance to cool completely.

Step2: Remove the burner assembly to access the existing pilot orifice.

Step3: Unscrew the old orifice carefully using the correct tool.

Step4: Install the new pilot orifice and tighten securely without overtightening.

Step5: Reassemble the burner assembly, restore gas and test the pilot for proper flame and safe operation.

  • What maintenance is required for the Garland 2200702 Pilot Orifice?

    Regularly inspect the orifice for blockages or buildup that can restrict gas flow. Clean carefully using a soft brush or compressed air. Proper maintenance ensures consistent flame performance and prevents gas leaks. Always shut off gas before servicing.

  • What are common issues with the Garland 2200702 Pilot Orifice?

    • Blocked or clogged orifice reducing flame.
    • Inconsistent or weak pilot flame.
    • Gas leakage around connections.
    • Difficulty in ignition.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Efficient Pilot
    Rusten —

    Simple to use, very effective
