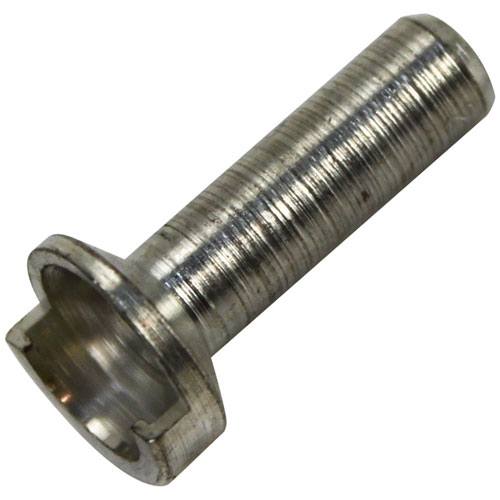

Garland 2200703 Range Pilot Orifice Propane Gas #23

SKU: 2200703 1-2200703 Brand:
Garland
Availability:
In Stock
(0)
$24.70 Price reduced from $25.20
Save $0.50
Have a Question? +1 (866) 863-0907

Specifications:

  • Lp Orifice Only, Can Be Used In Pilot H1004, # 511286
  • For Nat Orifice Use A2894, Q-449, # 262304
  • Garland Hot Top Stw286,
  • Series Master (W/Re Or Rce Suffix)

Description

The Garland 2200703 Range Pilot Orifice Propane Gas 23 is a tool used to regulate the flow of gas to provide to the pilot burner to ignite. This gas flows through the calibrated opening to sustain a constant pilot flame in the operations of the equipment. This opening is mounted on the gas pilot assembly of compatible gas ranges. It is scaled to the applications of propane gas and conventional pilot sizes. The part allows stable ignition and combines with the existing pilot tubing and fittings that are in commercial cooker applications.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 0.75 in
  • Height: 0.38 in
  • Width: 0.38 in

Step1: Turn off gas supply and electrical power to the appliance and verify no gas odor is present.

Step2: Allow unit to cool completely before servicing.

Step3: Remove burner access panel carefully.

Step4: Unscrew and remove old pilot orifice using proper tool.

Step5: Install new orifice and tighten securely by hand.

Step6: Reassemble components and ensure proper alignment.

Step7: Restore gas supply and test pilot flame for safe operation and inspect for leaks using soap solution.

  • What maintenance is required for the Garland 2200703 Pilot Orifice?

    Ensure the orifice remains clean and free of blockages by periodically inspecting and gently clearing debris. Check for proper gas flow and secure fitting. Regular upkeep prevents flame issues and supports consistent pilot performance. Always turn off gas before handling.

  • What are common issues with the Garland 2200703 Pilot Orifice?

    • Clogged or blocked orifice.
    • Restricted gas flow.
    • Irregular or weak pilot flame.
    • Improper sizing affecting performance.
    • Wear causing inconsistent operation.
