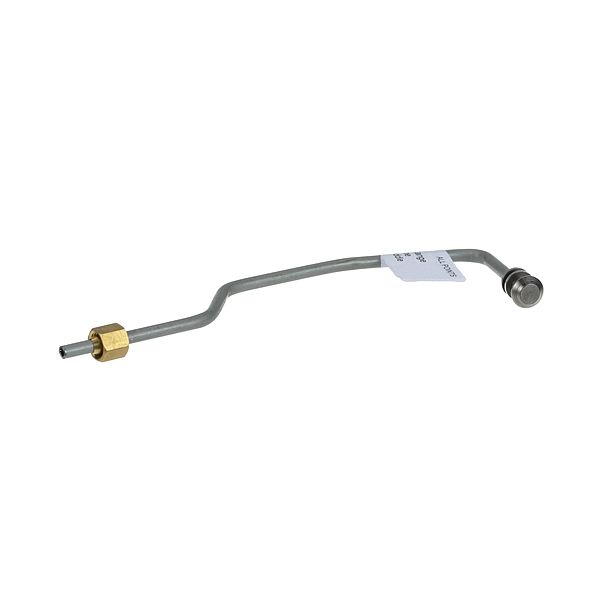

American Range A29206 Pilot Tube & Tip Assembly

Q: What is the Best Electric Griddle?

Electric Griddle is electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware.

Be the first to review this product

$42.48

In stock

SKU

A29206

Categories: Griddle & Grill Parts, Pilot Burners,

Manufacturer:

American Range

The American Range A29206 Pilot Tube & Tip Assembly supplies gas in the main supply to the pilot burner in a gas appliance. It works by directing a limited amount of gas to the pilot flame which heats up the main burners when necessary. The tube is laid between the gas manifold and the pilot assembly, and stabilized with fittings to have a closed connection. which is synchronized with the pilot burner, main gas valves, and safeties to provide ensure ignition, appropriate functioning of the flame, and safe functioning of the appliance.

Dimensions

Length: 7 In
Width: 2 In
Height: 5 In
Weight: 0.062 lbs

Product Notes

Pilot Tube For Raised Griddle
1-1/8 Slot X 3-1/2 Bend 2-3/4 At 45 Deg X 1-3/4, 7 Long X
1-1/8 To Slot, With 3/16 Nut & Sleeve
American Range Ar, Ar-C

Replaces Parts

AMERICAN RANGE:

10245, A29206

Reviews

Write Your Own Review

FAQS

Customer Questions

What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

What maintenance is required for the American Range A29206 Pilot Tube?

Inspect the pilot tube regularly for blockages or carbon buildup. Clean it gently to ensure consistent gas flow and ignition performance. Ensure connections remain tight and free from leaks to maintain better and accurate operation.

What are common issues with the American Range A29206 Pilot Tube?

Clogged pilot orifice causing weak flame.
Irregular ignition or failure to light.
Gas flow inconsistency.
Carbon buildup affecting performance.
Delayed ignition response.
Pilot flame extinguishing intermittently.
