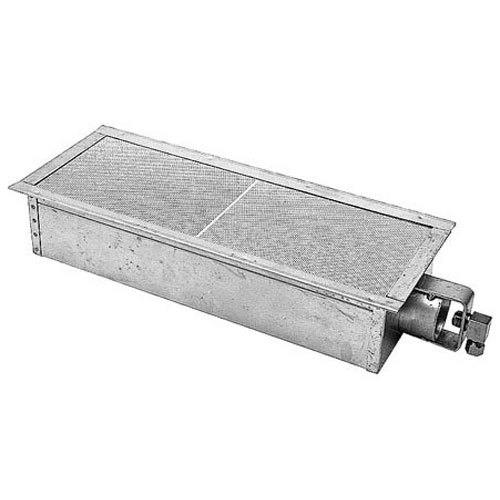

ROYAL RANGE 1604 Infrared Burner Top Box 16-3/4" X 6-3/4" Ceramic Burn Area 15-1/4" X 5-1/4"

SKU: 1604 1-1604 Brand:
ROYAL RANGE
Availability:
In Stock
(1)
$789.84 Price reduced from $1,238.00
Save $448.16
Have a Question? +1 (866) 863-0907

Specifications:

  • Infrared Burner,
  • [ Orifice - #46 W/ Thd Bracket ] 185,000 Btu
  • Top Of Box 16-3/4" X 6-3/4"
  • Ceramic Burn Area 15-1/4" X 5-1/4",
  • Box Only 15-5/8" X 5-3/4"
  • Garland
  • Rankin-Delux Broiler Rdcm 15, Rdgm Cheesemelter.
  • Vulcan Broiler Icm
  • Us Range Cheesemelter Ircma 24,48,72,96,120,144
  • This Burner Can Substitute For Jade Burner # 26-3690
  • But Is Not Exact.

Description

The ROYAL RANGE 1604 Infrared Burner Big B-20 generates heat by releasing infrared energy on its surface to provide an even heat output to cooking activities. It operates as the gas passes through the burner and burns making the ceramic or metal surface to radiate the heat effectively to the cooking space. This burner is placed in the main heating area of the unit, most are mounted above or below the cooking surface based on the design of the model and are in direct contact with cookware when in use.

Dimensions:

  • Weight: 7.4 lbs
  • Length: 19.5 in
  • Height: 3.3 in
  • Width: 7 in

GARLAND:

222105-1 222105-2

HOBART:

00-844516-00016 844516-00016 844516-16

RANDELL:

RDCM-08

RANKIN DELUX:

RDCM-08

VULCAN HART:

00-844516-00016 844516-00016 844516-16 VH844516-16

Step1: Turn off gas supply and ensure unit is completely cool before handling safely.

Step2: Remove old burner and clean mounting surface thoroughly.

Step3: Position new burner and align fittings properly.

Step4: Secure unit with screws/brackets and tighten all connections firmly.

Step5: Check for gas leaks, restore supply, and test flame operation safely.

  • What maintenance is required for the ROYAL RANGE 1604 Infrared Burner Top Box?

    Clean burner ports and ceramic surface regularly to prevent clogging and uneven heating. Inspect gas connections for leaks and tighten fittings when needed. Remove grease buildup to ensure safe ignition and consistent infrared performance.

  • What are common issues with the ROYAL RANGE 1604 Infrared Burner Top Box?

    • Uneven heating due to clogged ceramic ports.
    • Weak ignition or delayed flame start from gas flow obstruction.
    • Cracked ceramic tiles causing hot spots and performance drop.
    • Gas leakage or loose fittings affecting burner stability.
