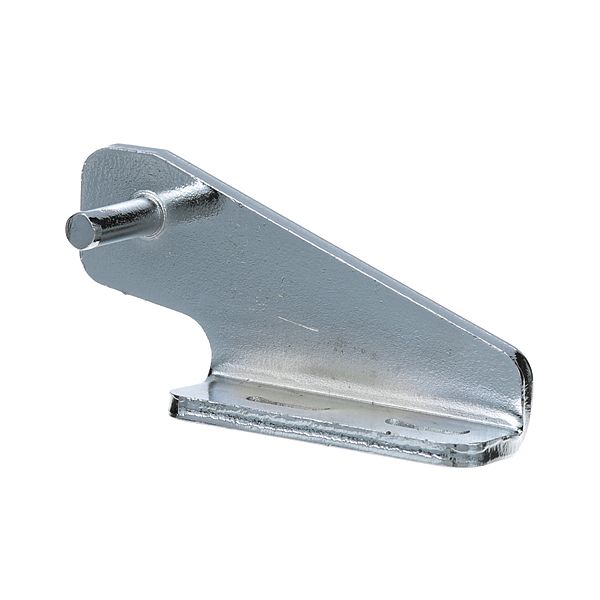

Delfield 3234229 Refrigerator Pivot Hinge Bracket Bottom Right Hand

Be the first to review this product
Special Price $16.80 Regular Price $21.00
In stock
SKU
3234229
Add to Wish List
Dishwasher Parts, Shop by manufacturers, Delfield
Manufacturer:
The Delfield 3234229 Refrigerator Pivot Hinge Bracket Bottom Right Hand is a structural mounting part that is applied in commercial refrigerators. It is mounted at the bottom right of the fridge cabinet, where it provides the point of pivot of the door and enables it to open and close under the control of the regular functioning. This bracket is used together with the upper hinge and door assembly to ensure that there is correct alignment and weight distribution. It is typically applied in food service and institutional refrigeration whereby the doors are opened regularly.

Dimensions

  • Length: 2 In
  • Width: 0.25 In
  • Height: 4.5 In
  • Weight: 0.3 lbs
https://partsfe.com/media/catalog/product/d/e/delfield-3234229-pivot-bracket-top-lt-bottom-rt-81610-2.jpg

Product Notes

  • Pivot Bracket, Top Left, Bottom Right
  • Delfield 402, 403, 406, 407, 4448N, 4448N-12, 4448N-18M,
  • 4448N-8, 4460N, 4460N-12, 4460N-12M, 4460N-18M, 4460N-24M,
  • 4460N-8, 4462N-18M, 4464N, 4464N-12, 4464N-12M, 4464N-16,
  • 4464N-24M, 4464N-30M, 4464N-8, 4472N, 4472N-12, 4472N-18M,
  • 4472N-24M, 6000Xl, 724, D4427N, D4448N, D4460N, D4464N,
  • D4472N, D4472N-18, Mfr1-S, St4448N, St4460N, St4464N,
  • St4472, St4472N, Std4448N, Std4460N, Std4464N, Std4472N,
  • Uc4048, Uc4148, Uc4448N, Uc4460N, Uc4464N, Uc4472, Uc4472N,
  • Ucd4448N, Ucd4460N, Ucd4464N, Ucd4472N
DELFIELD:
3234229, DEL3234229
Reviews
Write Your Own Review
You're reviewing:Delfield 3234229 Refrigerator Pivot Hinge Bracket Bottom Right Hand
Your Rating
FAQS
Customer Questions
What maintenance is required for the Delfield 3234229 Pivot Bracket?

Keep the pivot bracket clean and free from grease buildup or food debris. Inspect mounting points for tightness and alignment regularly. Replace worn components promptly to ensure stable support and smooth pivoting operation.

What are common issues with the Delfield 3234229 Pivot Bracket?

  • Misalignment causing uneven pivot movement.
  • Loose mounting hardware leading to instability.
  • Wear on bracket causing reduced support strength.
  • Debris buildup restricting smooth operation.
  • Noise or vibration during pivoting use issues.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power and secure unit before beginning installation.

Step2: Remove old bracket and hardware and clean surface.

Step3: Align pivot bracket to mounting points using correct orientation.

Step4: Insert screws and loosely fasten with proper screws.

Step5: Adjust alignment for smooth pivot until balanced motion.

Step6: Tighten all fasteners securely using torque specification.

Step7: Test operation and ensure stability for smooth operation.
