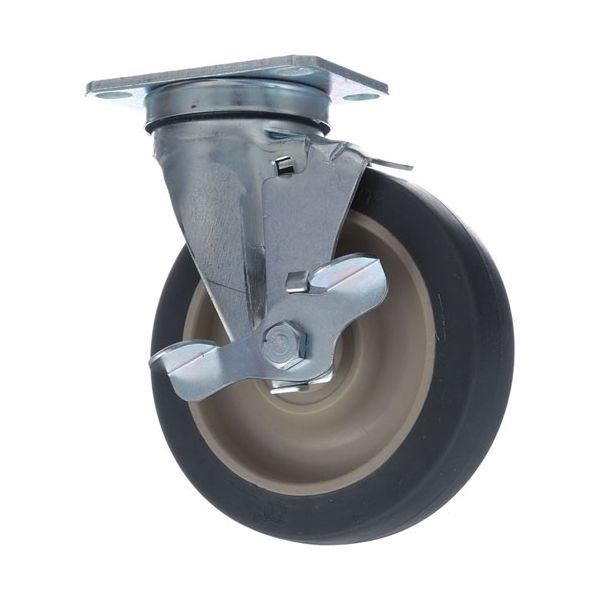

Cres Cor 0569306BK Swivel Plate Caster W/Brake 5"

Be the first to review this product
Special Price $32.69 Regular Price $42.45
In stock
SKU
0569306BK
Add to Wish List
Electrical & Hardware, Casters,
Manufacturer:
The Cres Cor 0569306BK Swivel Plate Caster W/Brake 5" works by enabling the caster to swivel and roll, and has a braking system to keep the movement in check when used. It works by means of a plate-mounted caster assembly with an in-built brake that secures the rotation of the wheels when necessary. It has a mounting plate, which allows it to be mounted steadily. It is a caster mount designed for the base of mobile foodservice equipment and placed at the corners so that the mobility can be controlled and the position can be fixed during the operation.

Dimensions

  • Length: 2.375 In
  • Width: 5 In
  • Height: 6 In
  • Weight: 2.5 lbs
https://partsfe.com/media/catalog/product/c/r/cres-cor-0569306bk-plate-mount-caster-w-brk-5-w-2-3-8-x-3-5-8-56766-2.jpg

Product Notes

  • [5"Dia] X [1-1/4" Wide], Plate Mount Caster, W/Brake
  • (3/8" Axle), (1/2" Bore), (1-1/2" Hub Width)
  • Tread Type-Flat, Delrin Bearing, 300 Lbs
  • (Plate Size 2-3/8" X 3-5/8") And (1-3/4" X 3" Hole Centers)
  • (Load Height-6")(Wheel Only # 28-1311
  • Cres-Cor 137, 151, 339
  • Frymaster Fryer 1824/2424G, 1824E, 1824G, 2424E,2424G, 2836
  • With Float Switch, 8Bc, 8C, 8Sms, Bid80, D20, D50, D50G,
  • D50Gdd, D60, D80, Fbcr18, Fbkr18, Fbr18, Fbra18, Fe155,
  • Fm35, Fm45, Fm47, Fmcfe, Fmcfec, Fp128, Fp136, Fp236, Fp28,
  • Fp36, Fpd565, Fpd65, Fpd665, Gf14, Gf40, H14, H17, H22,
  • Hd60, J3F, J65X, Jcfx, Kj3Fc, Mj35, Mj45, Mj47, Mjcf,Mjcfe,
  • Mjcfec, Pmj35, Sm20, Sm220, Sm35, Sm40, Sm50, Sm60, Sm80,
  • Sr114E, Sr38, Sr42, Sr52, Sr62, Sinbad, Sinbad Ii, Super
  • Runner 52, Wfp347Ecse
DYNAMIC COOKING SYSTEMS:
Reviews
Write Your Own Review
You're reviewing:Cres Cor 0569306BK Swivel Plate Caster W/Brake 5"
Your Rating
FAQS
Customer Questions
What maintenance is required for the Cres Cor 0569306BK Plate Mount Caster?

Clean the caster wheel and mounting plate regularly to remove grease, dirt, and debris that may affect movement. Lubricate the wheel axle and brake mechanism periodically for smooth operation. Inspect for looseness, damage, and ensure secure mounting bolts to maintain safe movement and stability.

What are common issues with the Cres Cor 0569306BK Plate Mount Caster?

  • Brake mechanism may fail to lock securely under load.
  • Wheel stiffness or resistance due to debris buildup or lack of lubrication.
  • Mounting plate loosening causing instability during equipment movement.
  • Uneven rolling or wobbling from worn or damaged caster components.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off equipment, empty contents, and ensure stable surface.

Step2: Position caster plate on base, align all mounting holes accurately.

Step3: Secure with correct bolts and washers, tighten evenly in a cross pattern.

Step4: Check alignment and ensure caster sits flush before final tightening.

Step5: Connect and release brake to verify locking function works smoothly.

Step6: Test wheel rotation and load stability before placing equipment back into service.
