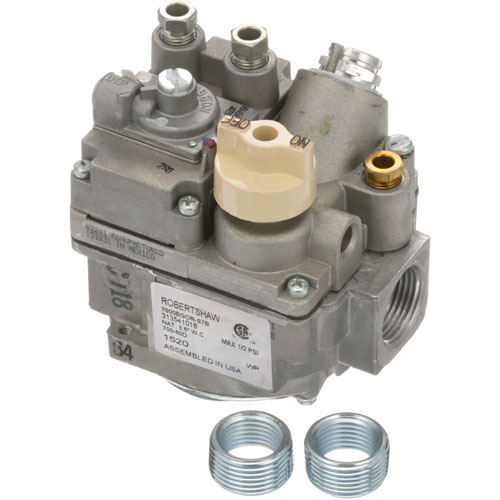

Pitco PP11001 Fryer Natural Gas Bleed Gas Actuator 3/4" FPT 300,000 BTU
Specifications:
- [ Nat Gas ] [ Size 3/4" Fpt ] [ Nat Safety ][ 3.5"Wc ]
- [Bleed Gas Actuator] [ Width 4"] [ Brand Rsw ]
- 1/4" Cct Pilot Out Only, W/Slotted Thermocouple Magnet
- 3/4 X 1/2" Reducer Bushings, Model 7000 7000 Bgor-S7B
- Bleed Gas Ports 1/4" Cct, 300,000 Btu
- Use Coaxial Thermocouple
- For Lp Gas Valve Use # 54-1000
- Southbend
Description
Dimensions:
- Weight: 2.1 lbs
- Length: 4.5 in
- Height: 3.5 in
- Width: 5.75 in
A gas control component used in fryer gas systems, the Pitco PP11001 bleed gas actuator regulates the flow of natural gas within the gas control assembly. It functions as part of the safety gas system by controlling bleed gas flow and working with related components, including the pilot assembly and thermocouple system, to support proper burner operation. The actuator features a 3/4" FPT connection, 3.5" WC gas pressure rating, and 300,000 BTU capacity. It is installed in natural gas fryer systems where bleed gas control and safety system operation are required.
Equipment Compatibility:
Designed for use with compatible Pitco and Southbend fryer equipment where natural gas flow and bleed gas control are required.
Product Specifications:
SKU: PP11001
Manufacturer: Pitco
Gas Type: Natural Gas
Connection Size: 3/4" FPT
Gas Pressure: 3.5" WC
Capacity: 300,000 BTU
Component Type: Bleed Gas Actuator
Key Features:
- Regulates bleed gas flow within the fryer gas control assembly.
- Designed for natural gas operation with a 300,000 BTU capacity.
- Features a 3/4" FPT connection for gas valve assembly installation.
- Includes 1/4" CCT bleed gas ports and pilot connection.
- Works with slotted thermocouple magnet and coaxial thermocouple configurations.
The fryer was having trouble regulating the gas supply, and replacing the worn actuator fixed the gas flow issue.
Step1: Shut off the gas supply and disconnect electrical power before servicing.
Step2: Access the gas valve assembly and locate the existing bleed gas actuator.
Step3: Disconnect all gas lines and wiring connected to the old actuator.
Step4: Remove the old actuator and clean the mounting surface.
Step5: Install the new bleed gas actuator and reconnect all connections securely.
Step6: Restore gas and power, then test for proper operation and check for leaks.
-
What maintenance is required for the Pitco PP11001 Bleed Gas Actuator?
Inspect the fryer gas actuator regularly for proper operation and secure mounting to ensure better gas flow control. Check for gas leaks at the connections using approved leak-detection methods. Clean external components to prevent grease buildup in fryer condition. Verify smooth actuator response during scheduled system testing to maintain better performance.
-
What are common issues with the Pitco PP11001 Bleed Gas Actuator?
- Fryer gas leakage at threaded FPT connections.
- Actuator sticking or failing to open/close properly.
- Inconsistent gas flow is affecting fryer performance.
- Damage to internal seals is causing pressure irregularities.
