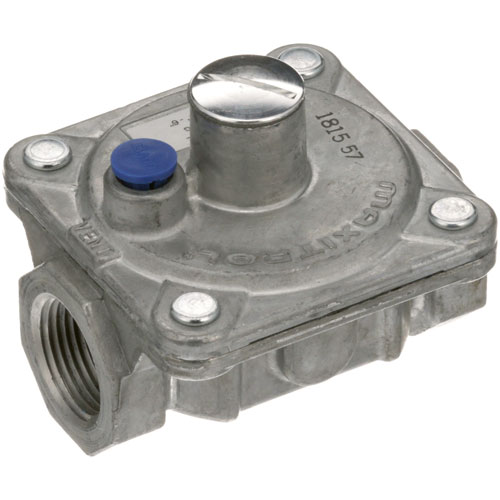

Keating 004236 Pressure Regulator Natural Gas 3/4" FPT 3"- 6"WC 1/2 PSI

SKU: 004236 1-004236 Brand:
Keating
Availability:
In Stock
(0)
$33.82 Price reduced from $59.42
Save $25.60
Have a Question? +1 (866) 863-0907

Specifications:

  • Nat Gas, 3/4" Fpt Gas In/Out, 3"- 6" Wc, 1/2 Psi
  • 250,000 Btu, Maxitrol Rv48L-66-0001 Preset At Factory To 3.5
  • American Range
  • Bakers Pride Oven Where Applicable.
  • Blodgett Oven Series: 900, 999, 1000, Bcg, Fa, Gzl.
  • Garland Griddle Series: Gd, Broiler G-80, Ir
  • Groen Kettle Ah/1, Ah/1E
  • Imperial Oven Ir,Ihr
  • Keating Fryer Bb, Cc & Ts: 18" & Up.
  • Southbend Oven Series: 300.
  • Griddle Series: Sg Counter Top
  • Vulcan Broiler, Grill, Warmer Where Applicable.
  • Fryer 7594G, Oven Series 7000
  • Range 24L, 36L/Lc, 48L/Lc, 148L/Lc, 60L/Lc/Lcc, 161L/Lc,
  • 260L/Lc/Lcc.

Description

The Keating 004236 Pressure Regulator regulates the flow of natural gas by lowering high inlet pressure to a constant outlet pressure to ensure that related appliances are functioning properly. It works on a diaphragm principle which automatically adapts to variations in supply pressure to keep the output constant at 1/2 PSI in the 3" to 6" WC range. This regulator is designed to fit in a 3/4" FPT gas line and can be placed in a position ahead of stoves, ovens, or any other gas-powered equipment so that pressure can be regulated safely and correctly and the system can be easily operated.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 4.5 in
  • Height: 3 in
  • Width: 3 in

AMERICAN RANGE:

10480 A80110

BAKERS PRIDE:

AS-M1008A BKPM1008A M1008A M1008X

BLODGETT:

04527 4527 4589 5118 90013 BL4527 BL4589 BL5118 BL90013 Z1160205

CECILWARE:

GML053A GML053F L053A L053F

CLEVELAND:

2127502 2127503 CLE2127503 KE54618-2

DORMONT:

R48N42-0306-3.5

DYNAMIC COOKING SYSTEMS:

13006-3

GARLAND:

1019000 1019003 1019010 1019012 2127502 2127503 228052-13 G01740 GL1019000 GL1019003 GL1019010 GL1019012 GL2127502 GLG01740

GRINDMASTER:

L053A

GROEN:

000345 101570A Z000345

HOBART:

00-408279-00001 00-408279-00009 00-408279-00020 00-408279-00022 00-408279-00024 00-408279-00025 108279-1 108279-20 108279-22 108279-9 19954 20024 408279-00001 408279-00009 408279-00020 408279-00022 408279-00024 408279-00025 408279-1 408279-20 408279-22 408279-24 408279-25 408279-9 719954 720024 720064

IMPERIAL:

1050 IMP1050

JADE RANGE:

460-135-000 4613500000

LANG:

2V-80501-04 80501-04

MAGIKITCH'N:

2701-0028200 270100282 27010028200 37N MK2701-0028200 MK270100282 MK27010028200 MK37N MKRP1011 RP1011

MONTAGUE:

01039-1 1039-1 2139-3 R96-1

NIECO:

2195

RANDELL:

RDLR-06C RDLR06-3/4

RANKIN DELUX:

GT15 RANGT15 RANRDCM02 RDCM02 RDLR-06C RDLR06-3/4

ROYAL RANGE:

1618

SOUTHBEND:

1160164 1160176 1160205 SOU1160164 SOU1160176 SOU1160205

STAR MFG:

2J-0028200 2J-39007 2J39007 2V-80501-04 59007

STERO:

WEL2J-39007 WEL2J39007

VULCAN HART:

00-408279-00001 00-408279-00009 00-408279-00020 00-408279-00022 00-408279-00024 00-408279-00025 108279-1 108279-20 108279-22 108279-9 19954 20024 408279-00001 408279-00009 408279-00020 408279-00022 408279-00024 408279-00025 408279-1 408279-20 408279-22 408279-24 408279-25 408279-9 719954 720024 720064 844516-8 VH108279-1 VH408279-1 VH408279-20 VH844516-8

Step1: Shut off the gas supply and disconnect appliance power before starting installation.

Step2: Remove the old regulator and clean the pipe threads and fittings.

Step3: Apply gas-approved thread sealant to male threads only.

Step4: Mount the new regulator with the flow arrow pointing toward the appliance.

Step5: Secure all connections firmly while avoiding excessive force.

Step6: Turn the gas supply back on and test all connections with a soap-and-water leak solution.

Step7: Confirm the outlet pressure is within the range before operating equipment.

  • What maintenance is required for the Keating 004236 Pressure Regulator?

    Inspect the regulator routinely for leaks and ensure stable gas output pressure. Clean exterior surfaces to prevent grease or dust accumulation that could affect operation. Verify all threaded connections remain secure. Replace internal seals or diaphragm components if pressure becomes inconsistent.

  • What are common issues with the Keating 004236 Pressure Regulator?

    • Unstable or drifting gas pressure readings.
    • Gas leakage at threaded connections.
    • Internal diaphragm wear reducing control accuracy.
    • Restricted gas flow from internal blockage.
    • Failure to maintain consistent outlet pressure.
