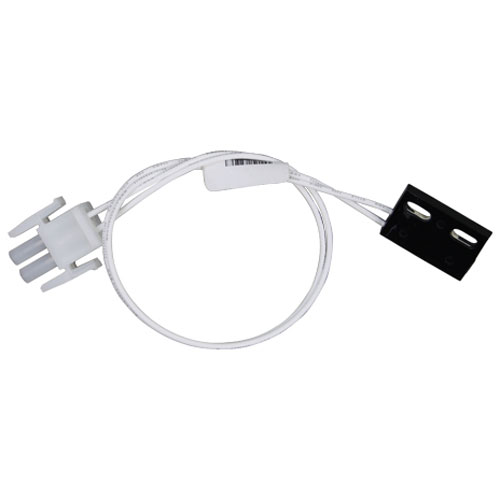

Pitco PTB5305001 Fryer Drain Valve Interlock Switch W/ Connector

SKU: PTB5305001 1-PTB5305001 Brand:
Pitco
Availability:
In Stock
(0)
$126.17 Price reduced from $243.00
Save $116.83
Have a Question? +1 (866) 863-0907

Specifications:

  • Dvi Switch
  • Same As #42-1313 Except It Comes With The Connector
  • Pitco Fryer 4Ssh75Csfd, 5Ssh75Csfd, Fg-Sgh50-Fd-50-Bt-50-2,
  • Lj-Fbg18, Lj-Fbg24, Lj-Fbgd18, Lj-Fbgd24, Me2, Meii, Se14,
  • Se147, Se148X, Se14R, Se14T, Se14Tr, Se14Tx, Se14X, Se18,
  • Se18R, Se18S, Se714, Sebnb14, Sebnb18, Seh50, Sfse14,
  • Sfse14R, Sfse14T, Sfse14Tr, Sfse14Tx, Sfse14X, Sfse18,
  • Sfse18R, Sg14, Sg14Di, Sg14R, Sg14Rdi, Sg14Rs, Sg14S-D,
  • Sg14T, Sg14Tdi, Sg18, Sg18Di, Sg18F, Sg18S, Sg18S-D, Sgc,
  • Sgh50, Sgm1824, Sgm24, Sgm34, Sgsebnb-14, Sgsebnb-18, Ssh55,
  • Ssh60, Ssh75, Ssh75Rs

Description

The Pitco PTB5305001 Fryer Drain Valve Interlock Switch is an essential safety mechanism . It uses a magnetic reed fitting to enable the fryer’s drain valve to open and close safely and effectively, without triggering a drain during the frying process. This change also improves safety by engaging with the fryer’s system so that the it cannot be drained while it is in operation. Advantages are the possibility of installation without additional tools, compatibility with more than 100 models , and higher reliability of frying equipment, which makes it an indispensable part for ensuring the safety and productivity of commercial kitchens.

Dimensions:

  • Length: 6.5 in
  • Height: 1 in
  • Width: 4 in

This Part Fits the Following Models

128 models
Pitco 3SSH75RSSTC-S-FD Pitco 4SSH75CSFD Pitco 4SSH75RSSTC-S-FD Pitco 5SSH75CSFD Pitco AE14S Pitco AG14 Pitco AW-SG14R Pitco AW-SG14R-2 Pitco AW-SG14R-3-FD Pitco AW-SG14R-4-FD Pitco AW-SGF14R Pitco BK-SEH50 Pitco BK-SG14RS-PCFM Pitco BK-SGH50 Pitco BKSSH60W Pitco CKSSH55C Pitco CKSSH60WC Pitco DD24RUFM Pitco LJ-FBG18 Pitco LJ-FBG24 Pitco LJ-FBGD18 Pitco LJ-FBGD24 Pitco ME2 Pitco MEII Pitco MGII Pitco PG14D Pitco PH-SG14R Pitco PH-SG14R-2 Pitco PH-SG14R-3 Pitco PH-SG14R-4 Pitco PH-SGF14R Pitco SE14 Pitco SE147 Pitco SE148X Pitco SE14R Pitco SE14T Pitco SE14TR Pitco SE14TX Pitco SE14X Pitco SE18 Pitco SE18R Pitco SE18S Pitco SE714 Pitco SEBNB14 Pitco SEBNB18 Pitco SEF184 Pitco SEH50 Pitco SELV14 Pitco SELV14T Pitco SFSE14 Pitco SFSE14R Pitco SFSE14T Pitco SFSE14TR Pitco SFSE14TX Pitco SFSE14X Pitco SFSE18 Pitco SFSE18R Pitco SFSG14 Pitco SFSG14C-S Pitco SFSG14R Pitco SFSG14RS Pitco SFSG14S Pitco SFSG14T Pitco SFSG14TS Pitco SFSG18 Pitco SFSG18S Pitco SFSG6H Pitco SFSSH55R Pitco SFSSH55T Pitco SFSSH55TR Pitco SFSSH60 Pitco SFSSH60R Pitco SFSSH60W Pitco SFSSH60WR Pitco SFSSH75 Pitco SFSSH75R Pitco SG14 Pitco SG14DI Pitco SG14R Pitco SG14RDI Pitco SG14RS Pitco SG14S Pitco SG14S-D Pitco SG14T Pitco SG14TDI Pitco SG14TS Pitco SG18 Pitco SG18DI Pitco SG18F Pitco SG18HP Pitco SG18S Pitco SG18S-D Pitco SG6H Pitco SGC Pitco SGF18 Pitco SGH50 Pitco SGH50T Pitco SGM1824 Pitco SGM24 Pitco SGM34 Pitco SGSEBNB-14 Pitco SGSEBNB-18 Pitco SPINFRESH Pitco SRTE Pitco SRTG Pitco SRTG14 Pitco SRTG14S Pitco SSH55 Pitco SSH55-2FD Pitco SSH55R Pitco SSH55SSTC-2FD Pitco SSH55T Pitco SSH55TR Pitco SSH60 Pitco SSH60C-S/FD Pitco SSH60R Pitco SSH60W Pitco SSH60W/C-S/FD Pitco SSH60WR Pitco SSH75 Pitco SSH75R Pitco SSH75RS Pitco SSHLV14 Pitco SSHLV184 Pitco TB-SG14 Pitco TB-SG14R Pitco TB-SGF14 Pitco TB-SRTG
Showing of 128.0

MAGIKITCH'N:

B5305001

PITCO:

B5305001

Step1: Disconnect fryer from power supply and allow it to cool completely before beginning any work to avoid electric shock or burns.

Step2: Open control panel and locate drain valve interlock switch assembly.

Step3: Remove faulty switch and disconnect wiring connector carefully.

Step4: Install new switch aligning mounting points and reconnect connector securely.

Step5: Restore panel, test drain valve interlock before full operation and verify safety interlock works correctly.

  • What maintenance is required for the Pitco PTB5305001 Drain Valve Interlock Switch?

    Regularly inspect the interlock switch for secure mounting and proper alignment with the drain valve mechanism. Clean away grease and debris that may affect actuator movement or electrical contact. Check the connector and wiring for tightness, corrosion, or heat damage. Ensure the switch connects and disconnect smoothly during normal valve operation.

  • What are common issues with the Pitco PTB5305001 Drain Valve Interlock Switch?

    • Failure to detect the drain valve position.
    • Intermittent switch operation is causing unexpected shutdowns.
    • Damaged or loose connector leading to loss of interlock signals.
    • Misalignment between the reed switch and actuator is causing false readings.
    • Wire insulation damage is causing erratic electrical behaviour.
