Southbend 1195164 Range Quadrant Assembly W/1/2" OD Tube &1/8" Steel Plate

Be the first to review this product
Special Price $49.63 Regular Price $87.53
In stock
SKU
1195164
Add to Wish List
Plumbing Parts, Adapters,
Manufacturer:

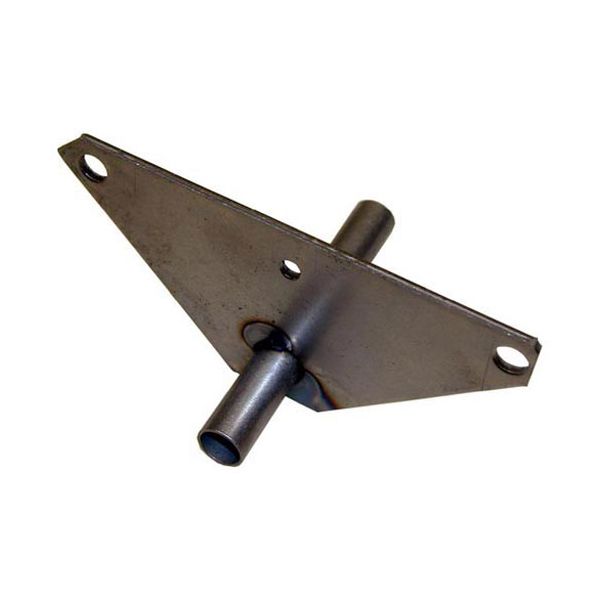

The Southbend 1195164 Range Quadrant Assembly is a mechanical control part that fits in the compatible commercial ranges. This assembly uses a 1/2" exterior diameter tube with a 1/8" plate of steel to create a robust pivot and guide interface for the range control lever. Fitted within the control linkage area of the range, it links the user controls to the internal components of the range, the valve stems or the selector shafts. Being the control systems of the range, it allows one to select and adjust the operation of burners accurately.

Dimensions

  • Length: 5 In
  • Width: 2.5 In
  • Height: 3.5 In
  • Weight: 0.4 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1195164-quadrant-assembly-w-1-2-od-tube-and-1-8-steel-plate-58725-2.jpg

Product Notes

  • Quadrant Assembly,
  • 4-5/16" Hole Ctrs, 1/2" Od Tube 1-1/4" Out One Side
  • And 2-1/4" Out The Other Side, 1/8" Steel Plate
  • Overall Tube Length = 3 5/8"
  • Tube 1/2" Od, .425" Id
  • Southbend Oven Series: 324,336,348,360,424,436,448,460
SOUTHBEND:
Reviews
Write Your Own Review
You're reviewing:Southbend 1195164 Range Quadrant Assembly W/1/2" OD Tube &1/8" Steel Plate
Your Rating
FAQS
Customer Questions
What maintenance is required for the Southbend 1195164 Quadrant Assembly?

Regularly check the quadrant assembly for alignment and secure connections. Clean any debris or buildup around moving parts. Lubricate pivot points lightly to ensure smooth operation and prevent jamming. Proper care avoids operational issues and maintains safety.

What are common issues with the Southbend 1195164 Quadrant Assembly?

  • Misalignment causing binding or uneven movement.
  • Wear on pivot points or connecting hardware.
  • Corrosion on metal surfaces.
  • Difficulty in smooth rotation or operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off the gas and electrical supply to the appliance.

Step2: Remove the control panel to access quadrant assembly.

Step3: Disconnect the old quadrant, and mounting hardware from the bracket assembly.

Step4: Install new quadrant assembly, align tube and plate securely.

Step5: Secure all fasteners, ensure smooth movement, then test burner operation.
