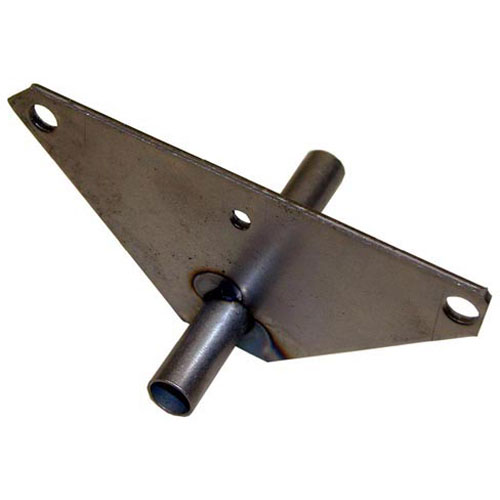

Southbend 1195164 Range Quadrant Assembly W/1/2" OD Tube &1/8" Steel Plate

SKU: 1195164 1-1195164 Brand:
Southbend
Availability:
In Stock
(0)
$57.90 Price reduced from $91.90
Save $34.00
Have a Question? +1 (866) 863-0907

Specifications:

  • Quadrant Assembly,
  • 4-5/16" Hole Ctrs, 1/2" Od Tube 1-1/4" Out One Side
  • And 2-1/4" Out The Other Side, 1/8" Steel Plate
  • Overall Tube Length = 3 5/8"
  • Tube 1/2" Od, .425" Id
  • Southbend Oven Series: 324,336,348,360,424,436,448,460

Description

The Southbend 1195164 Range Quadrant Assembly is a mechanical control part that fits in the compatible commercial ranges. This assembly uses a 1/2" exterior diameter tube with a 1/8" plate of steel to create a robust pivot and guide interface for the range control lever. Fitted within the control linkage area of the range, it links the user controls to the internal components of the range, the valve stems or the selector shafts. Being the control systems of the range, it allows one to select and adjust the operation of burners accurately.

Dimensions:

  • Weight: 0.4 lbs
  • Length: 5 in
  • Height: 3.5 in
  • Width: 2.5 in

SOUTHBEND:

1180859

Step1: Shut off the gas and electrical supply to the appliance.

Step2: Remove the control panel to access quadrant assembly.

Step3: Disconnect the old quadrant, and mounting hardware from the bracket assembly.

Step4: Install new quadrant assembly, align tube and plate securely.

Step5: Secure all fasteners, ensure smooth movement, then test burner operation.

  • What maintenance is required for the Southbend 1195164 Quadrant Assembly?

    Regularly check the quadrant assembly for alignment and secure connections. Clean any debris or buildup around moving parts. Lubricate pivot points lightly to ensure smooth operation and prevent jamming. Proper care avoids operational issues and maintains safety.

  • What are common issues with the Southbend 1195164 Quadrant Assembly?

    • Misalignment causing binding or uneven movement.
    • Wear on pivot points or connecting hardware.
    • Corrosion on metal surfaces.
    • Difficulty in smooth rotation or operation.
