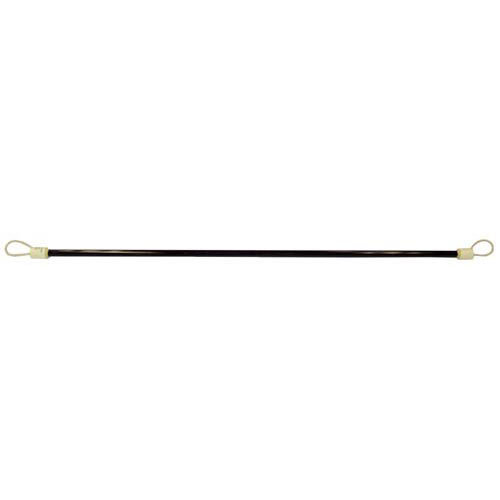

Star Mfg K9-11160-21 Range Quartz Heater Element 31 W/ 6" Wire Lead 3/4" White

SKU: K9-11160-21 1-K9-11160-21 Brand:
Star Mfg
Availability:
In Stock
(1)
$191.10 Price reduced from $372.30
Save $181.20
Have a Question? +1 (866) 863-0907

Specifications:

  • Quartz White, Note: White And Red Have Same Functionality
  • [ 104V 1800W ] [ 31 3/4" End To End] {6" Wire Lead }
  • For Red Quartz Tube Use # 34-1328
  • Lang Broiler/Cheesmelter mm-36

Description

The Star Mfg K9-11160-21 Range Quartz Heater 31-3/4" 1800W 104V operates through the generation of radiant heat when electrical current is passed through the filament contained in its quartz tube. It works by a regulated heating mechanism that spreads the energy uniformly along its length of operation. This heater is installed in the special mounting channel of the appliance and is connected to the electrical terminals and it is directed to the reflector or internal housing that guides its radiant energy.

Dimensions:

  • Weight: 2.8 lbs
  • Length: 37 in
  • Height: 2 in
  • Width: 2 in

LANG:

11160-21 LG11160-21 LGK9-11160-21

STAR MFG:

11160-21

STERO:

STA11160-21 STAK9-11160-21

Step1: Disconnect main power supply completely.

Step2: Remove front panel cover carefully.

Step3: Detach old heater element wiring connections.

Step4: Install new quartz element, align mounting brackets, ensure correct alignment.

Step5: Reconnect wire leads securely to terminals.

Step6: Refit cover and tighten fasteners firmly.

Step7: Restore power and test heating operation for proper operation.

  • What maintenance is required for the Star Mfg K9-11160-21 Quartz Heater Element?

    Inspect range quartz heater element and white ceramic body for cracking or dark spots during operation checks. Ensure wire lead connections remain secure, free from heat damage. Disconnect power before servicing and avoid moisture on terminals for stable heating performance.

  • What are common issues with the Star Mfg K9-11160-21 Quartz Heater Element?

    • Cracking in quartz heater tube.
    • Intermittent heating from loose 6-inch lead.
    • Burn marks on white ceramic surface.
    • Reduced output due to terminal oxidation.
    • Electrical short from heat stress.
    • Loose wire connection points.
