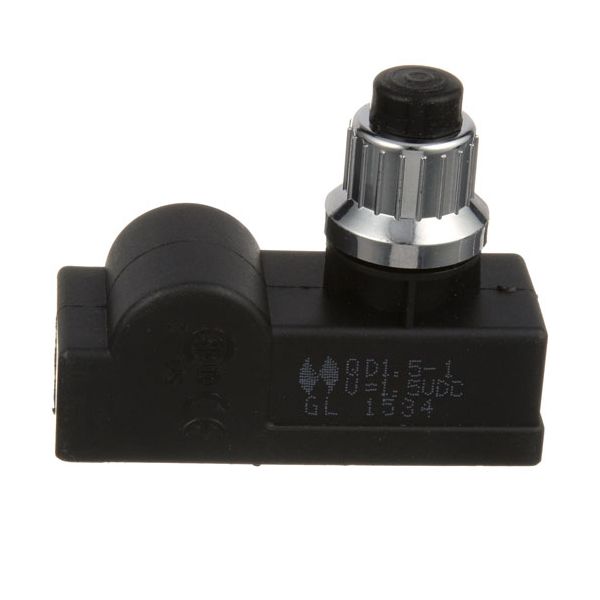

Southbend 1189809 Range Quickliter 3-1/8"L X 1-1/4"W X 2-1/2"H 1.5 VDC

Rating:
5 5 4
4  Reviews Add Your Review
Special Price $48.40 Regular Price $76.83
In stock
SKU
1189809
Add to Wish List
Other Categories, Additional Parts, General Parts
Manufacturer:
The Southbend 1189809 Range Quickliter is a small ignition element that is used to provide a steady spark to start burners in commercial cooking appliances. It is 3-1/8" long, 1-1/4" wide, and 2-1/2" high, and runs on 1.5 VDC to enable it to start efficiently in gas-powered ranges. This is applied in restaurant kitchens, institutional foodservice facilities and other commercial applications that need secure ignition. It is installed in the ignition system of the range and assists in the start of burner operation.

Dimensions

  • Length: 3 In
  • Width: 1.25 In
  • Height: 2.5 In
  • Weight: 0.08 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1189809-quickliter-1-5-vdc-3-1-8-l-x-1-1-4-w-x-2-1-2-h-74889-2.jpg

Product Notes

  • 1.5 Vdc, 3-1/8" L X 1-1/4" W X 2-1/2" H
  • Southbend Platinum Series
Generates the electrical spark required to ignite the gas burner during the range's startup sequence. The Southbend 1189809 Quickliter operates as an ignition component that produces a 1.5 VDC spark when the ignition system is activated. Measuring 3-1/8" L × 1-1/4" W × 2-1/2" H, it is positioned at the designated burner ignition area to provide the required spark. The Quickliter works with the range's gas delivery and ignition controls to initiate burner combustion. Its operation supports consistent burner startup during normal cooking cycles.

Spark Generation:
Produces a controlled electrical spark when the ignition sequence is activated. The spark reaches the burner area and provides the ignition source for the gas-air mixture supplied during startup. Consistent spark generation helps support prompt and repeatable burner ignition.

Burner Ignition Support:
Works with the gas control and ignition system during burner startup. When heat is requested, the Quickliter provides the electrical spark while gas is supplied to the burner, allowing the ignition sequence to establish the flame. Once ignition occurs, the burner continues operating according to the equipment's heating cycle.

Replacement Guidelines:
Provides a dedicated ignition component for the range's Quickliter system. The Southbend 1189809 Range Quickliter uses a 1.5 VDC electrical supply to support the ignition process. Its function is centered on initiating ignition within the range's burner system rather than regulating gas flow or controlling cooking temperature.

Common Failure Symptoms:

  • Ignition does not respond normally during the applicable ignition sequence.
  • Ignition operation becomes intermittent.
  • Quickliter shows visible physical damage or deterioration.
  • Electrical ignition response becomes unresponsive.
  • Ignition performance becomes inconsistent during range operation.

Equipment Compatibility:
The Southbend 1189809 Quickliter is intended for equipment applications requiring this specific ignition component. Verify the equipment model and part number before ordering to confirm the correct application.

Technical Specifications:
Brand: Southbend
Part Number: 1189809
Component Name: Quickliter
Equipment Type: Commercial Range
Width: 1-1/4"
Height: 2-1/2"
Voltage Rating: 1.5 VDC

Replaces Parts
SOUTHBEND:
Reviews 4
Write Your Own Review
You're reviewing:Southbend 1189809 Range Quickliter 3-1/8"L X 1-1/4"W X 2-1/2"H 1.5 VDC
Your Rating
FAQS
Customer Questions
What maintenance is required for the Southbend 1189809 Quickliter?

Regularly clean the Quickliter to prevent the buildup of grease or debris that could affect performance. Inspect all connections and moving parts for wear or damage. Lubricate any hinges if applicable and ensure the unit operates smoothly to maintain safety and efficiency.

What are the common issues with the Southbend 1189809 Quickliter?

  • Failure to illuminate or intermittent operation
  • Loose or corroded electrical connections
  • Actual damage from impacts
  • Overheating if the voltage exceeds specifications.

What is the Southbend 1189809 Quickliter used for?

It provides the electrical spark needed to ignite the gas burner during the range's ignition sequence.

What should be inspected during routine maintenance of the Southbend 1189809 Quickliter?

Check the Quickliter periodically for visible wear, physical damage, loose components, or deterioration. Any unusual condition should be evaluated by a qualified technician.

What are common signs of a faulty Quickliter?

Typical signs include failure to produce a spark, delayed ignition, intermittent ignition, or difficulty starting the burner.

Does the Quickliter stay on while the burner is operating?

No. It is primarily used during the burner ignition sequence to establish the initial flame.
