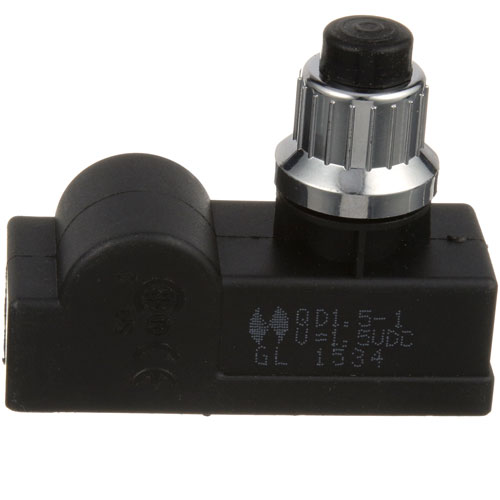

Southbend 1189809 Range Quickliter 3-1/8"L X 1-1/4"W X 2-1/2"H 1.5 VDC
Specifications:
- 1.5 Vdc, 3-1/8" L X 1-1/4" W X 2-1/2" H
- Southbend Platinum Series
Description
Dimensions:
- Weight: 0.08 lbs
- Length: 3 in
- Height: 2.5 in
- Width: 1.25 in
Spark Generation:
Produces a controlled electrical spark when the ignition sequence is activated. The spark reaches the burner area and provides the ignition source for the gas-air mixture supplied during startup. Consistent spark generation helps support prompt and repeatable burner ignition.
Burner Ignition Support:
Works with the gas control and ignition system during burner startup. When heat is requested, the Quickliter provides the electrical spark while gas is supplied to the burner, allowing the ignition sequence to establish the flame. Once ignition occurs, the burner continues operating according to the equipment's heating cycle.
Replacement Guidelines:
Provides a dedicated ignition component for the range's Quickliter system. The Southbend 1189809 Range Quickliter uses a 1.5 VDC electrical supply to support the ignition process. Its function is centered on initiating ignition within the range's burner system rather than regulating gas flow or controlling cooking temperature.
Common Failure Symptoms:
- Ignition does not respond normally during the applicable ignition sequence.
- Ignition operation becomes intermittent.
- Quickliter shows visible physical damage or deterioration.
- Electrical ignition response becomes unresponsive.
- Ignition performance becomes inconsistent during range operation.
Equipment Compatibility:
The Southbend 1189809 Quickliter is intended for equipment applications requiring this specific ignition component. Verify the equipment model and part number before ordering to confirm the correct application.

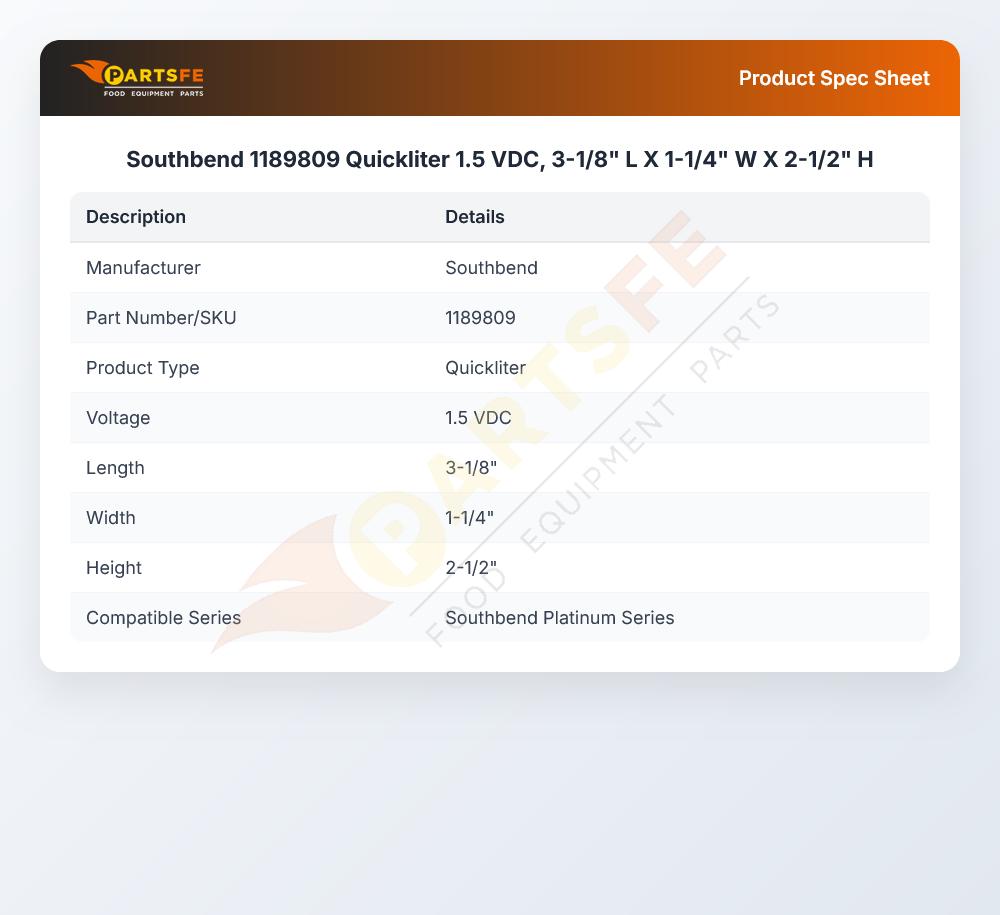

Technical Specifications:
Brand: Southbend
Part Number: 1189809
Component Name: Quickliter
Equipment Type: Commercial Range
Width: 1-1/4"
Height: 2-1/2"
Voltage Rating: 1.5 VDC
SOUTHBEND:
Step1: Turn off the power to the appliance before installation.
Step2: Remove any existing light module carefully.
Step3: Position the Quickliter into the designated mounting slot.
Step4: Ensure the unit sits flush and fasten if necessary.
Step5: Restore power and verify that the light functions properly.
Step6: Follow standard electrical safety precautions throughout.
-
What maintenance is required for the Southbend 1189809 Quickliter?
Regularly clean the Quickliter to prevent the buildup of grease or debris that could affect performance. Inspect all connections and moving parts for wear or damage. Lubricate any hinges if applicable and ensure the unit operates smoothly to maintain safety and efficiency.
-
What are the common issues with the Southbend 1189809 Quickliter?
- Failure to illuminate or intermittent operation
- Loose or corroded electrical connections
- Actual damage from impacts
- Overheating if the voltage exceeds specifications.
-
What is the Southbend 1189809 Quickliter used for?
It provides the electrical spark needed to ignite the gas burner during the range's ignition sequence.
-
What should be inspected during routine maintenance of the Southbend 1189809 Quickliter?
Check the Quickliter periodically for visible wear, physical damage, loose components, or deterioration. Any unusual condition should be evaluated by a qualified technician.
-
What are common signs of a faulty Quickliter?
Typical signs include failure to produce a spark, delayed ignition, intermittent ignition, or difficulty starting the burner.
-
Does the Quickliter stay on while the burner is operating?
No. It is primarily used during the burner ignition sequence to establish the initial flame.
-
Can a faulty Quickliter prevent a gas burner from igniting?
Yes. If the Quickliter cannot produce the required ignition spark, the burner may fail to light or may experience delayed ignition.
