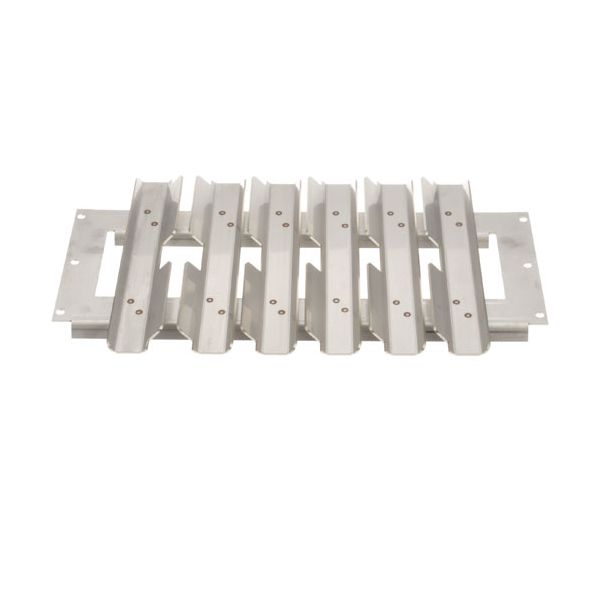

main product photo

Southbend 1183676 Range Radiant Charbroiler Assembly 19" x 10.5" 7.5 lbs

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $423.28 Regular Price $825.10
In stock
SKU
1183676
Add to Wish List
Plumbing Parts, Washers,
Manufacturer:
The Southbend 1183676 Radiant Weldment Assembly is an essential element in commercial gas ranges that is necessary to maintain even heat distribution under the cooking surface. It assists in the uniformity of cooking performance through the even distribution of heat throughout the burner to help in the maintenance of uniform temperature during cooking. This assembly is an essential part of the restaurant ranges and is a vital component of the heating system that helps in effective transfer of energy and better performance in the kitchen conditions.

Dimensions

  • Length: 19.125 In
  • Width: 10.625 In
  • Height: 1.625 In
  • Weight: 7.62 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1183676-range-radiant-charbroiler-assembly-19-x-10-5-7-5-lbs-13963-2.jpg

Product Notes

  • Charbroiler Radiant Assembly W/A
  • Length- 19"
  • Width- 10 1/2"
  • 7-1/2Lbs
  • Lang Lgr24C-Cc, Lgr24N-Cc, Lgr36A-Ccc, Lgr36C-Ccc,
  • Lgr36D-Ccc, Lgr36N-Ccc, Lgr48A-Cccc, Lgr48C-Cccc,
  • Lgr48D-Cccc, Lgr48N-Cccc,
  • Southbend P16C-C, P16N-C, P24C-Cc, P24N-Cc,
  • P32A-Cc, P32C-Cc, P32D-Cc, P32N-Cc, P36A-Ccc, P36C-Ccc,
  • P36D-Ccc, P36N-Ccc, P48A-Cccc, P48C-Cccc, P48D-Cccc,
  • P48N-Cccc
BLODGETT:
SOUTHBEND:
Reviews 2
Write Your Own Review
You're reviewing:Southbend 1183676 Range Radiant Charbroiler Assembly 19" x 10.5" 7.5 lbs
Your Rating
Related Posts
  1. Vulcan Charbroiler Troubleshooting Made Simple: Step-by-Step Fixes
FAQS
Customer Questions
What maintenance is required for the Southbend 1183676 Radiant Assembly?

Regularly inspect the charbroiler radiant assembly for grease buildup and debris. Clean gently to prevent flare-ups and ensure even heat distribution. Check for warping or cracks that could affect performance. Always cool the unit before handling for safety.

What are the common issues with the Southbend 1183676 Radiant Assembly?

  • Uneven heating across the cooking surface.
  • Cracks or warping of the radiant panels.
  • Excessive flare-ups from grease accumulation.
  • Reduced heat output due to clogged or worn elements.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the gas supply and power to the charbroiler.

Step2: Remove the old radiant assembly and clean the burner tray.

Step3: Inspect the burners and gas lines for corrosion or damage.

Step4: Place the new radiant assembly into the correct slots over the burners.

Step5: Ensure alignment with all brackets and support rails.

Step6: Secure any mounting clips or screws to hold the assembly in place.

Step7: Reconnect the gas and test for leaks.

Step8: Ignite the charbroiler and verify even heating across the surface.
