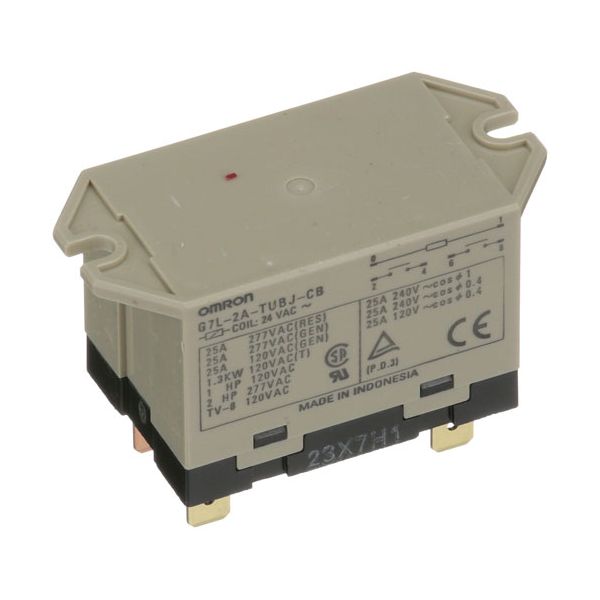

Blodgett 37058 Oven DPST Relay W/ 6 Terminals 25AMP 24V

SKU: 37058 1-37058 Brand:
Blodgett
Availability:
In Stock
(0)
$69.81 Price reduced from $137.57
Save $67.76
Have a Question? +1 (866) 863-0907

Specifications:

  • Relay, 24V, 6 Terminals, Dpst, 25Amp
  • Blodgett Ac-500 Xcel, Dfg-100 Xcel, Mark V Xcel Series,
  • Sho-G
  • Pitco Lj-Fbg18, Lj-Fbg24, Lj-Fbgd18, Lj-Fbgd24, Me2, Meii,
  • Mgii, Se14, Se147, Se148X, Se14R, Se14T, Se14Tr, Se14Tx,
  • Se14X, Se18, Se18R, Se18S, Se714, Sebnb14, Sebnb18, Seh50,
  • Sfse14, Sfse14R, Sfse14T, Sfse14Tr, Sfse14Tx, Sfse14X,
  • Sfse18, Sfse18R, Sg Series, Sg14, Sg14Di, Sg14R, Sg14Rdi,
  • Sg14Rs, Sg14S-D, Sg14T, Sg14Tdi, Sg18, Sg18Di, Sg18F, Sg18S,
  • Sg18S-D, Sgc, Sgh50, Sgm1824, Sgm24, Sgm34, Sgsebnb-14,
  • Sgsebnb-18, Ssh55, Ssh75, Ssh75Rs

Description

The Blodgett 37058 Oven Relay DPST 25A 24V works by regulating electrical current to the heating elements, turning them on or off based on the signals of the control system of the oven. It has a 25 amps, 24 volt, double-pole, single-throw design that provides a more accurate operation in the circuit. This relay is installed in the control compartment of the oven and it links the existing wiring harness without any problem to control the flow of electricity.

Dimensions:

  • Length: 3 in
  • Height: 2 in
  • Width: 1.25 in

This Part Fits the Following Models

135 models
Blodgett AC-500 XCEL Blodgett BDO-100-G-ES Blodgett BDO-G Blodgett BLCT-101-E-H Blodgett BLCT-102-E-H Blodgett BLCT-10E-H Blodgett BLCT-61-E-H Blodgett BLCT-62-E-H Blodgett BLCT-6E-H Blodgett BLCT-6E-H-MCD Blodgett DFG-100 Blodgett DFG-100 XCEL Blodgett DFG-100-ES Blodgett DFG-200 Blodgett DFG-200-ES Blodgett MARK V KFC Blodgett MARK V Series Blodgett MARK V XCEL SERIES Blodgett Mark V-100 Blodgett MARK V-100 XCEL Blodgett SHO-100-E Blodgett SHO-100-G Blodgett SHO-E Blodgett SHO-G Blodgett Zephaire Blodgett ZEPHAIRE 240E PLUS Blodgett ZEPHAIRE 240G PLUS Blodgett ZEPHAIRE E PLUS Blodgett ZEPHAIRE G Blodgett ZEPHAIRE G PLUS Blodgett Zephaire-100-E Blodgett Zephaire-100-G Blodgett Zephaire-100-G-ES Blodgett Zephaire-200-E Blodgett Zephaire-200-G Blodgett Zephaire-200-G-ES Pitco AW-SG14R Pitco AW-SG14R-2 Pitco AW-SG14R-3-FD Pitco AW-SG14R-4-FD Pitco AW-SGF14R Pitco BK-SG14RS-PCFM Pitco LJFBG18 Pitco LJFBG24 Pitco LJFBGD18 Pitco LJFBGD24 Pitco ME2 Pitco MEII Pitco PH-SG14R Pitco PH-SG14R-2 Pitco PH-SG14R-3 Pitco PH-SG14R-4 Pitco PH-SGF14R Pitco SE14 Pitco SE147 Pitco SE14R Pitco SE14T Pitco SE14TR Pitco SE14TX Pitco SE14X Pitco SE18 Pitco SE18R Pitco SE18S Pitco SE714 Pitco SEBNB14 Pitco SEBNB18 Pitco SEF184 Pitco SEH50 Pitco SFSE14 Pitco SFSE14R Pitco SFSE14T Pitco SFSE14TR Pitco SFSE14TX Pitco SFSE14X Pitco SFSE18 Pitco SFSE18R Pitco SFSG14 Pitco SFSG14C-S Pitco SFSG14R Pitco SFSG14RS Pitco SFSG14S Pitco SFSG14T Pitco SFSG14TS Pitco SFSG18 Pitco SFSG18S Pitco SFSG6H Pitco SFSSH55R Pitco SFSSH55T Pitco SFSSH60W Pitco SFSSH75 Pitco SG14 Pitco SG14DI Pitco SG14R Pitco SG14RDI Pitco SG14RS Pitco SG14S Pitco SG14SD Pitco SG14T Pitco SG14TDI Pitco SG14TS Pitco SG18 Pitco SG18DI Pitco SG18F Pitco SG18HP Pitco SG18S Pitco SG18SD Pitco SG6H Pitco SGC Pitco SGF18 Pitco SGH50 Pitco SGH50T Pitco SGM1824 Pitco SGM24 Pitco SGM34 Pitco SRTG Pitco SRTG14 Pitco SSH55 Pitco SSH55-2FD Pitco SSH55R Pitco SSH55SSTC-2FD Pitco SSH55T Pitco SSH55TR Pitco SSH60 Pitco SSH60C-S/FD Pitco SSH60R Pitco SSH60W Pitco SSH60W/C-S/FD Pitco SSH60WR Pitco SSH75 Pitco SSH75R Pitco SSH75RS Pitco TB-SG14 Pitco TB-SG14R Pitco TB-SGF14 Pitco TB-SRTG
Showing of 135.0

MAGIKITCH'N:

60104701

PITCO:

60104701

Step1: Turn off power and gas supply, allow oven to cool fully to secure from shock or burns.

Step2: Remove access panel and document wiring positions on existing relay.

Step3: Disconnect old terminal relay carefully and check terminals for corrosion or damage.

Step4: Mount new relay securely and reconnect wires to matching terminals.

Step5: Restore power and test oven operation, ensuring proper switching and no overheating or abnormal cycling.

  • What maintenance is required for the Blodgett 37058 Relay?

    Regularly inspect the oven relay terminals for signs of heat discoloration or loose wiring connections to prevent electrical arcing. Keep the component area free of grease and dust buildup to ensure proper heat dissipation. Always disconnect power before performing inspections to ensure technician safety and prevent accidental shorts.

  • What are common issues with the Blodgett 37058 Relay?

    • Contacts welding shut causing the oven to heat continuously.
    • Pitting or carbon buildup on internal contact points.
    • Coil failure preventing the oven relay from connection.
    • Audible chattering or humming during operation.
    • Intermittent power loss to heating elements.
