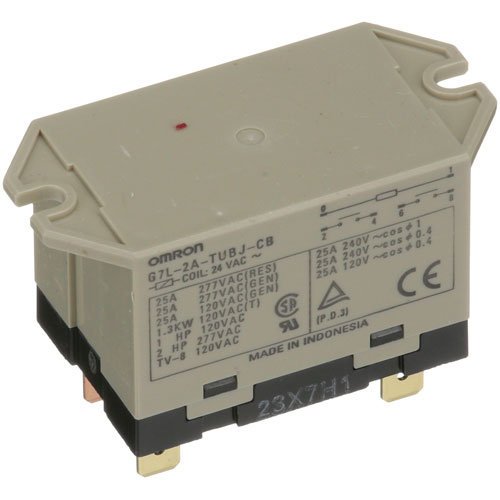

Blodgett 37058 Oven DPST Relay W/ 6 Terminals 25AMP 24V

SKU: 37058 1-37058 Brand:
Blodgett
Availability:
In Stock
(0)
$69.81 Price reduced from $137.57
Save $67.76
Have a Question? +1 (866) 863-0907

Specifications:

  • Relay, 24V, 6 Terminals, Dpst, 25Amp
  • Blodgett Ac-500 Xcel, Dfg-100 Xcel, Mark V Xcel Series,
  • Sho-G
  • Pitco Lj-Fbg18, Lj-Fbg24, Lj-Fbgd18, Lj-Fbgd24, Me2, Meii,
  • Mgii, Se14, Se147, Se148X, Se14R, Se14T, Se14Tr, Se14Tx,
  • Se14X, Se18, Se18R, Se18S, Se714, Sebnb14, Sebnb18, Seh50,
  • Sfse14, Sfse14R, Sfse14T, Sfse14Tr, Sfse14Tx, Sfse14X,
  • Sfse18, Sfse18R, Sg Series, Sg14, Sg14Di, Sg14R, Sg14Rdi,
  • Sg14Rs, Sg14S-D, Sg14T, Sg14Tdi, Sg18, Sg18Di, Sg18F, Sg18S,
  • Sg18S-D, Sgc, Sgh50, Sgm1824, Sgm24, Sgm34, Sgsebnb-14,
  • Sgsebnb-18, Ssh55, Ssh75, Ssh75Rs

Description

The Blodgett 37058 Oven Relay DPST 25A 24V works by regulating electrical current to the heating elements, turning them on or off based on the signals of the control system of the oven. It has a 25 amps, 24 volt, double-pole, single-throw design that provides a more accurate operation in the circuit. This relay is installed in the control compartment of the oven and it links the existing wiring harness without any problem to control the flow of electricity.

Dimensions:

  • Length: 3 in
  • Height: 2 in
  • Width: 1.25 in

MAGIKITCH'N:

60104701

PITCO:

60104701

Step1: Turn off power and gas supply, allow oven to cool fully to secure from shock or burns.

Step2: Remove access panel and document wiring positions on existing relay.

Step3: Disconnect old terminal relay carefully and check terminals for corrosion or damage.

Step4: Mount new relay securely and reconnect wires to matching terminals.

Step5: Restore power and test oven operation, ensuring proper switching and no overheating or abnormal cycling.

  • What maintenance is required for the Blodgett 37058 Relay?

    Regularly inspect the oven relay terminals for signs of heat discoloration or loose wiring connections to prevent electrical arcing. Keep the component area free of grease and dust buildup to ensure proper heat dissipation. Always disconnect power before performing inspections to ensure technician safety and prevent accidental shorts.

  • What are common issues with the Blodgett 37058 Relay?

    • Contacts welding shut causing the oven to heat continuously.
    • Pitting or carbon buildup on internal contact points.
    • Coil failure preventing the oven relay from connection.
    • Audible chattering or humming during operation.
    • Intermittent power loss to heating elements.
