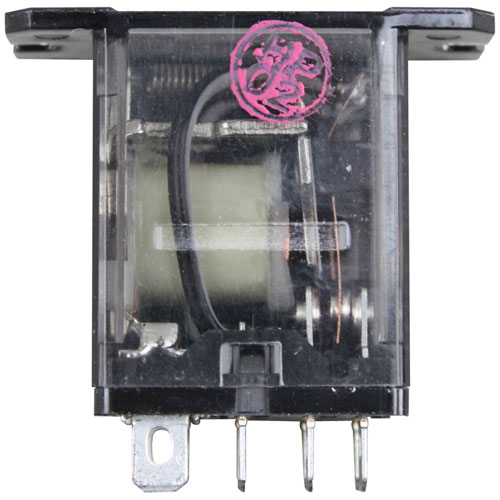

Star Mfg 2E-Z14428 Oven Relay W/8 Terminals, 120V AC Coil

SKU: 2E-Z14428 1-2E-Z14428 Brand:
Star Mfg
Availability:
In Stock
(0)
$59.47 Price reduced from $94.40
Save $34.93
Have a Question? +1 (866) 863-0907

Specifications:

  • (8) Terminals, 120V Coil, 50/60Hz
  • Globe 2750, 2850V, 2875V, 3500, 3600, 3750, 3850(V), 3875V,
  • 3950

Description

The Star Mfg 2E-Z14428 Relay with 8 terminals and a 120V AC coil is an essential device to regulate the power supply in ovens. It works by receiving a signal from the control circuit and making the relay turn the power switch on or off to the heaters. The 8 terminals enable different wiring, and there is confidence that the interconnections will be perfect. Compared to the previous relay, this relay emerges as much more hard-wearing, as well as stable in performance, with short response times that allow the equipment to operate at maximum efficiency and prevent overheating.

Dimensions:

  • Weight: 0.07 lbs
  • Length: 2 in
  • Height: 1 in
  • Width: 2 in

GLOBE:

952-9

HOBART:

00-856699-00001 856699-00001 856699-1

VULCAN HART:

00-856699-00001 856699-00001 856699-1

Step1: Turn off power at breaker and confirm zero voltage with a tester.

Step2: Remove oven control panel or access cover.

Step3: Label existing terminal wiring.

Step4: Disconnect wires from old relay.

Step5: Mount new relay securely in same position.

Step6: Reconnect wires to matching terminals per diagram.

Step7: Reassemble panel, restore power, test oven operation.

Step8: Keep hands clear of live circuits and check operation cycle.

  • What maintenance is required for the Star Mfg 2E-Z14428 Relay?

    Inspect the relay terminals regularly for loose connections, corrosion, or heat discoloration. Keep the relay compartment clean and free from grease or moisture buildup. Verify proper voltage supply and secure wiring to maintain accurate switching performance. Always disconnect electrical power before inspecting or replacing the relay to prevent shock hazards.

  • What are common issues with the Star Mfg 2E-Z14428 Relay?

    • Burnt or pitted contact points causing intermittent power.
    • Coil failure resulting in the oven relay failing to connecting.
    • Audible clicking without electrical throughput.
    • Terminal corrosion leading to high resistance and overheating.
