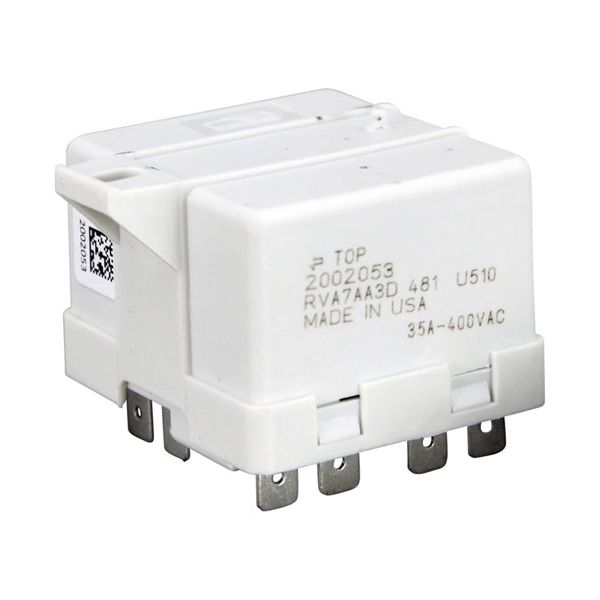

Manitowoc 2002053 Ice Machine Start Potential Relay

Product Overview:
Used within the compressor starting circuit, the Manitowoc 2002053 Ice Machine Start Potential Relay is an OEM electrical component that helps control the electrical connection required during compressor startup. The relay responds to changing electrical conditions and supports the transition from the starting stage to normal compressor operation. Its function is important to the ice-making cycle because an incorrect starting sequence may prevent the compressor from operating properly.

Compressor Starting Control:
At the beginning of the compressor cycle, the start potential relay responds to the electrical conditions in the motor circuit. Its switching action helps manage the starting components until the compressor reaches the required operating condition. Once the compressor moves into normal operation, the relay changes the circuit according to the equipment’s design. Contact wear, electrical damage, or an incorrect relay configuration may interrupt this sequence and affect compressor performance.

Electrical Circuit Coordination:
The start potential relay works as part of the compressor’s electrical control arrangement. It coordinates with the starting components, wiring, and related electrical parts to support the proper sequence from startup to continuous operation. When the relay does not switch correctly, the compressor may fail to start, cycle repeatedly, or remain inactive. Correct terminal arrangement and electrical specifications are necessary for the relay to function with the intended ice machine circuit.

Replacement Guidelines:
A replacement may be required when the Manitowoc 2002053 Ice Machine Start Potential Relay no longer controls the compressor starting circuit correctly. Compressor startup failure, intermittent operation, repeated clicking, or an incomplete freezing cycle may indicate a relay-related issue. Visible damage to the housing, terminals, or electrical connections is another reason to consider replacement.

Common Failure Symptoms:

• The compressor does not start.
• The compressor starts intermittently.
• The ice machine stops before completing the freezing cycle.
• Repeated clicking or cycling occurs during startup.
• The relay housing or terminals show visible damage.
• The compressor struggles to transition into normal operation.
• The relay does not match the original electrical configuration.

Equipment Compatibility:
The Manitowoc 2002053 Ice Machine Start Potential Relay is an OEM component intended for selected Manitowoc ice machine applications. Compatibility must be confirmed using the complete equipment model and serial number, the existing part number, relay markings, terminal arrangement, and electrical specifications.

Technical Specifications:
Manufacturer: Manitowoc
Product Type: Start Potential Relay
Part Number: 2002053
Equipment Type: Ice machine

Step1: Disconnect power to the ice machine to prevent electrical shock.

Step2: Access the electrical control panel, typically located behind the front or side cover.

Step3: Locate the faulty start relay and carefully disconnect the attached wires, noting their positions.

Step4: Install the new relay by connecting wires to the corresponding terminals.

Step5: Secure the relay in its mounting position.

Step6: Restore power and test the unit to ensure the compressor starts properly.

• What maintenance is required for the Manitowoc 2002053 Start Potential Relay?

  Inspect the relay periodically for secure electrical connections and signs of overheating. Keep the area dry and free from dust. Ensure proper voltage supply to avoid pressure on components.

• What are the common issues with the Manitowoc 2002053 Start Potential Relay?

  • Compressor failing to start due to relay malfunction.
  • Clicking sounds indicate relay failure.
  • Overheating or burnt relay contacts.
  • Intermittent operation is causing inconsistent compressor performance.
