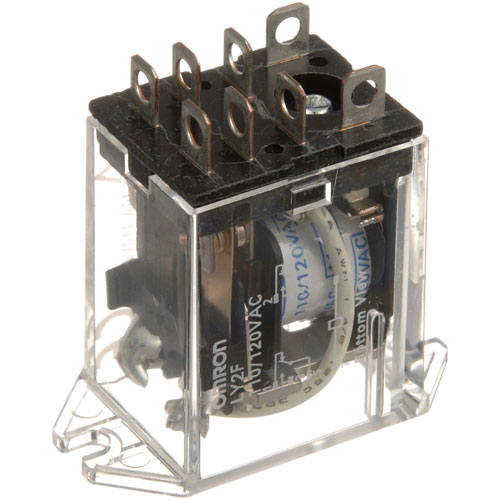

Vulcan Hart 00-416535-00006 Fryer Relay 10A 110/120V

SKU: 00-416535-00006 1-00-416535-00006 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$79.35 Price reduced from $122.28
Save $42.93
Have a Question? +1 (866) 863-0907

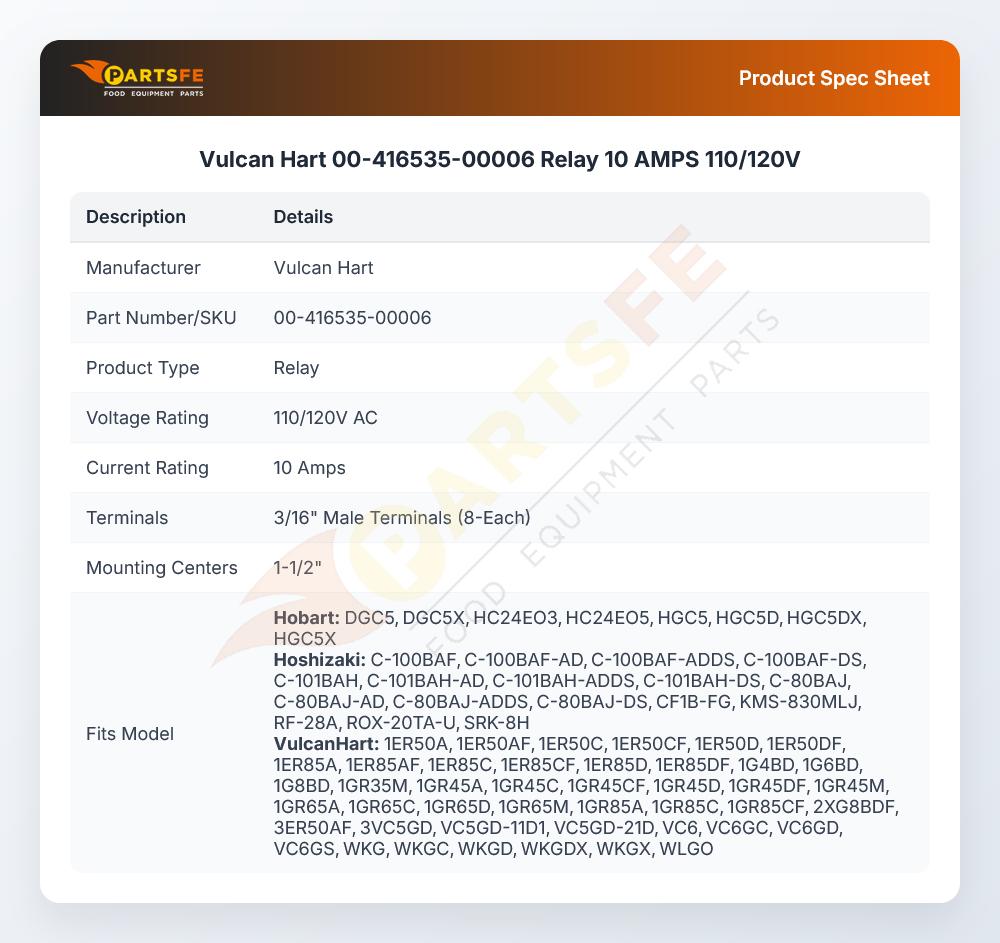

Specifications:

  • Relay, [10 Amps] [110/120V ] [ 8Ea 3/16" Male Terminals]
  • [1-1/2" Mt Ctrs ] [Omron ] Note: For 240V Use # 44-1435.
  • Vulcan Fryer Series Er, Erc225, Erc225F, Erc40, Erc40F,
  • Erc50, Erc50F, Erc85, Erc85F, Erd225, Erd225F, Erd40,
  • Erd40F, Erd50, Erd50F, Erd85, Erd85F,
  • Oven Sg4C, Sg4D, Sg6C, Sg6D, Vc4Gc, Vc4Gd, Vc4Gs, Vc6Gc,
  • Vc6Gd, Vc6Gs,
  • Convection Steamer C24Ga10, C24Ga6,

Description

The Vulcan Hart 00-416535-00006 Relay 10 AMPS 110/120V switches electrical power by opening or closing the internal contacts of the relay when the control circuit coil is activated. When a voltage is applied, the relay coil opens the input to the output to enable the flow of current to the controlled component. The contacts are open to terminate the flow. It is installed in the electrical compartment of the equipment and is incorporated into the control wiring where circuits have to be switched. This relay is designed to replace the one that starts to fail in connecting and disconnecting during normal operation.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.75 in
  • Height: 1.75 in
  • Width: 1 in

HOBART:

416535-00006 416535-6

HOSHIZAKI:

406132-07 HOS406132-07

VULCAN HART:

416535-00006 416535-6 VH416535-00006 VH416535-6

Step1: Power off the appliance completely before starting.

Step2: Remove the old relay by disconnecting all wires and unscrewing any mounting brackets.

Step3: Match and connect wires from the new relay to the corresponding terminals.

Step4: Secure the relay in place using screws or clips provided.

Step5: Check all connections for tightness and correct placement.

Step6: Restore power and test the appliance to ensure proper operation.

  • What maintenance is required for the Vulcan Hart 00-416535-00006 Relay?

    Inspect all connections for tightness and signs of corrosion. Clean the surrounding grease and dust from the relay housing. Test relay actuation with appliance power off.

  • What are common issues with the Vulcan Hart 00-416535-00006 Relay?

    • Burner elements fail to energize.
    • Buzzing without switching.
    • Loose or frayed wiring.
    • Overheating during extended operation.
