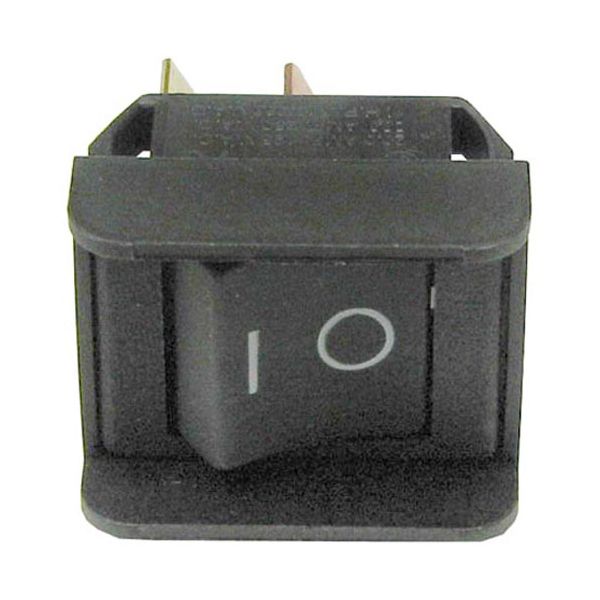

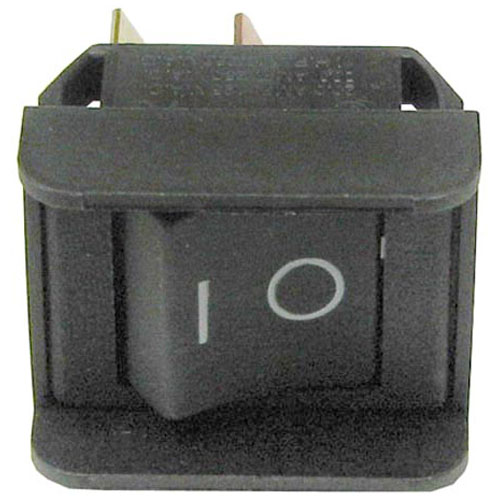

APW 89501 Rocker Switch 20 AMP 15/16" X 1-1/8"
Specifications:
- [ Rocker ] [ Fits Hole 15/16" X 1-1/8" ] [ On/Off ]
- [ Dpst ] [ Black/Black] [ Terminals (4) 1/4" Tabs) ]
- [ 20A/125V/250V ] [ Markings O/I ]
- American Permanent Ware
- At Express, At-10, At-30, At-5, Hdx-1, Hdx-2, Hdx-3, Hdx-4,
- M-83, M-91, M-95-2, M-95-3, M-95-3-Wd, M2000, M2000-Jib,
- M95-2-Jib, M952L-W, Wd-1Cmf, Wd-2Cmf, Wd-2Cmf-Dhc, Wd-3Cmf
- Hot Dog Roaster Dr-1A, Dr-2A
Description
Dimensions:
- Weight: 0.1 lbs
- Length: 1.2 in
- Height: 1.4 in
- Width: 1.1 in
Step1: Turn off the appliance power supply to prevent electrical hazards.
Step2: Access the control panel where the switch will be installed.
Step3: Remove the faulty switch by releasing its retaining clips or screws.
Step4: Identify and label the wires before disconnecting them.
Step5: Connect the wires to the rocker switch terminals.
Step6: Snap or secure the switch firmly into the panel cutout.
Step7: Restore power and verify the switch operates correctly within the unit.
-
What maintenance is required for the APW 89501 Rocker Switch?
Periodically test the switch for a consistent on/off response to ensure stable operation. Inspect the housing for heat damage or discoloration from electrical load. Verify wiring insulation remains intact. Keep the switch dry and protected from grease buildup to avoid electrical faults.
-
What are the common issues with the APW 89501 Rocker Switch?
- Switch fails to toggle power on or off properly.
- Intermittent electrical connection due to worn internal contacts.
- Burnt or damaged terminals from electrical load pressure.
- Loose mounting or wiring is causing inconsistent operation.
