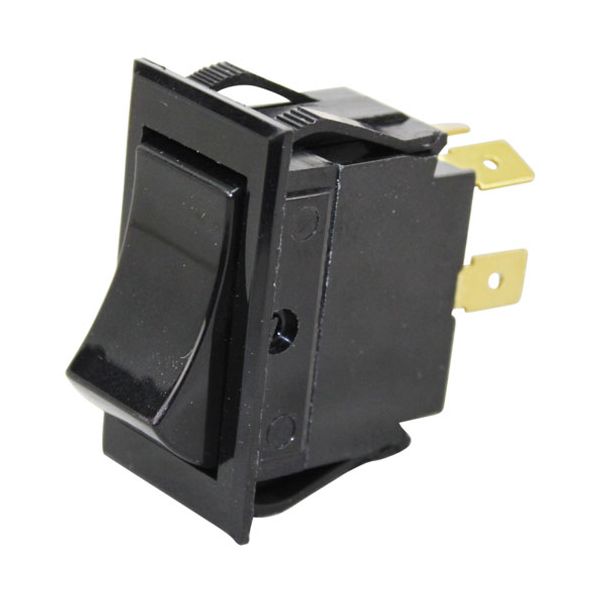

main product photo

Southbend 1177541 Rocker Switch 7/8 X 1-1/2 DPST

Be the first to review this product
Special Price $21.43 Regular Price $23.38
In stock
SKU
1177541
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Southbend 1177541 Rocker Switch 7/8″ × 1-1/2″ DPST is a two-circuit electrical switch that is used to open or close internal contacts when the rocker is switched. Upon actuation, the switch causes the contacts to be moved to either permit current to pass through both poles or break it, giving synchronized on/off control with a single actuator. It is attached to the control panel of compatible equipment and mounted via a cutout with terminals available to make wiring connections. The double-pole/single-throw type will allow two circuits in food service or industrial appliances to be controlled simultaneously.

Dimensions

  • Length: 1.75 In
  • Width: 2 In
  • Height: 1 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1177541-rocker-switch-7-8-x-1-1-2-dpst-65328-2.jpg

Product Notes

  • [ Rocker ] [ Fits Hole 7/8" X 1-1/2" ] [ On/Off ] [ Dpst ]
  • [Terminals 4Ea (1/4" Tabs) ] [ 125/277V 20Amp]
  • [ Color Black]
  • Bloomfield
  • Coffee 8707, 8710, 8711, 8712, 8713, 8714, 8715, 8716,
  • 8717, 8718, 8751, 8752, 8753, 8754, 8755, 8756,
  • 8757, 8758, 9104.
  • Crescor Warmer Phu-18-747-(35,36). Series: 120-Cr, 121-Cr,
  • H-339-(124,127,128,188,188-Pt, 1813,Ua-8), H137.
  • 129-005 Cabinet, 0617.
  • Southbend Griddle Sg,
  • Oven Marathon Gold, Saffire, Dilverstar
  • Wells Mod Wv-Fg
CRES COR:
0808 116K, 0808-116, 0808-116-K, 0808-116K, 0808116, 0808116K, 808-116-K, 808-116K, CRE0808-116-K, CRE808-116-K, CRE808-116K
DELFIELD:
2194409, DEL2194409
HOBART:
00-87711-219-1, 87711-219-1, HOB00-87711-219-1, HOB87711-219-1
JACKSON:
Reviews
Write Your Own Review
You're reviewing:Southbend 1177541 Rocker Switch 7/8 X 1-1/2 DPST
Your Rating
FAQS
Customer Questions
What maintenance is required for the Southbend 1177541 Rocker Switch?

Keep the rocker switch clean by wiping away grease, dust, and debris regularly to ensure essential operation. Inspect wiring connections for looseness or corrosion and tighten when needed. Avoid moisture exposure. Maintenance ensures consistent electrical performance and reduces failure risk.

What are common issues with the Southbend 1177541 Rocker Switch?

  • Loose or intermittent electrical connection causing switching failure.
  • Internal contact wear leading to inaccurate actuation.
  • Switch sticking or not returning to position.
  • Burn marks or overheating from electrical overload conditions.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power to the appliance before replacing the switch.

Step2: Remove the control panel and disconnect the wires from the old rocker switch.

Step3: Insert the new DPST rocker switch into the mounting opening until it snaps securely in place.

Step4: Reconnect the wires to the matching terminals according to the equipment wiring diagram.

Step5: Restore power and test the switch to confirm proper on/off operation.
