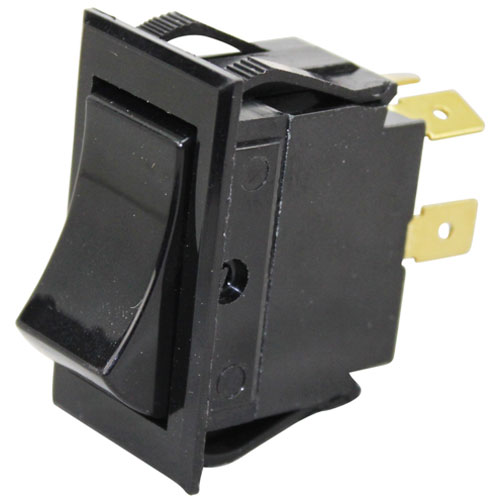

Southbend 1177541 Rocker Switch 7/8 X 1-1/2 DPST

SKU: 1177541 1-1177541 Brand:
Southbend
Availability:
Out of Stock
(0)
$21.43 Price reduced from $23.38
Save $1.95
Have a Question? +1 (866) 863-0907

Specifications:

  • [ Rocker ] [ Fits Hole 7/8" X 1-1/2" ] [ On/Off ] [ Dpst ]
  • [Terminals 4Ea (1/4" Tabs) ] [ 125/277V 20Amp]
  • [ Color Black]
  • Bloomfield
  • Coffee 8707, 8710, 8711, 8712, 8713, 8714, 8715, 8716,
  • 8717, 8718, 8751, 8752, 8753, 8754, 8755, 8756,
  • 8757, 8758, 9104.
  • Crescor Warmer Phu-18-747-(35,36). Series: 120-Cr, 121-Cr,
  • H-339-(124,127,128,188,188-Pt, 1813,Ua-8), H137.
  • 129-005 Cabinet, 0617.
  • Southbend Griddle Sg,
  • Oven Marathon Gold, Saffire, Dilverstar
  • Wells Mod Wv-Fg

Description

The Southbend 1177541 Rocker Switch 7/8″ × 1-1/2″ DPST is a two-circuit electrical switch that is used to open or close internal contacts when the rocker is switched. Upon actuation, the switch causes the contacts to be moved to either permit current to pass through both poles or break it, giving synchronized on/off control with a single actuator. It is attached to the control panel of compatible equipment and mounted via a cutout with terminals available to make wiring connections. The double-pole/single-throw type will allow two circuits in food service or industrial appliances to be controlled simultaneously.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.75 in
  • Height: 1 in
  • Width: 2 in

BLOOMFIELD:

2E-70395 8528-40 BLM8528-40

CRES COR:

0808 116K 0808-116 0808-116-K 0808-116K 0808116 0808116K 808-116-K 808-116K CRE0808-116-K CRE808-116-K CRE808-116K

DELFIELD:

2194409 DEL2194409

HOBART:

00-87711-219-1 87711-219-1 HOB00-87711-219-1 HOB87711-219-1

JACKSON:

05930-011-49-55 5930-011-49-55 59300114955 JAC5930-011-49-55

SOUTHBEND:

1186598 SOU1177541 SOU1186598

STAR MFG:

2E-70395 2E70395 WS-8528-40

Step1: Disconnect power to the appliance before replacing the switch.

Step2: Remove the control panel and disconnect the wires from the old rocker switch.

Step3: Insert the new DPST rocker switch into the mounting opening until it snaps securely in place.

Step4: Reconnect the wires to the matching terminals according to the equipment wiring diagram.

Step5: Restore power and test the switch to confirm proper on/off operation.

  • What maintenance is required for the Southbend 1177541 Rocker Switch?

    Keep the rocker switch clean by wiping away grease, dust, and debris regularly to ensure essential operation. Inspect wiring connections for looseness or corrosion and tighten when needed. Avoid moisture exposure. Maintenance ensures consistent electrical performance and reduces failure risk.

  • What are common issues with the Southbend 1177541 Rocker Switch?

    • Loose or intermittent electrical connection causing switching failure.
    • Internal contact wear leading to inaccurate actuation.
    • Switch sticking or not returning to position.
    • Burn marks or overheating from electrical overload conditions.
