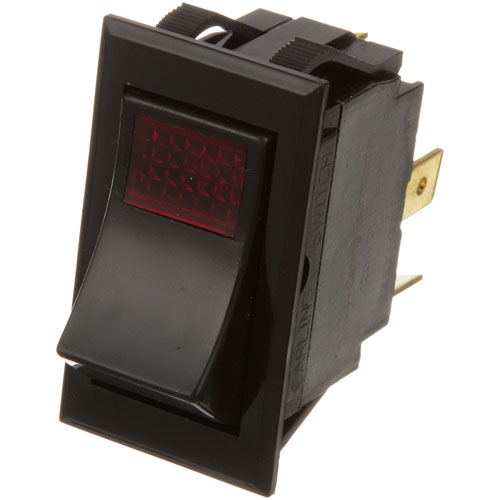

Pitco 60046201 Red Rocker Switch W/1/4" Tabs 7/8" x 1-1/2" 20A/250V SPST

SKU: 60046201 1-60046201 Brand:
Pitco
Availability:
In Stock
(0)
$14.34 Price reduced from $14.63
Save $0.29
Have a Question? +1 (866) 863-0907

Specifications:

  • [ Rocker Switch ] [ Fits Hole 7/8" X 1-1/2" ] [ On/Off ]
  • [ Spst ] [ Terminals 3 (1/4" Tabs) ] [ Amp/Volt 20A/250V ]
  • Color Red Light/Black ]
  • Anets Fryer Di-11-17 & 22~
  • E-11-17 & 22~
  • Sx-14 (Aa & E).
  • Bloomfield
  • Coffee 8702, 8706, 8707, 8710, 8711, 8712, 8713, 8714,
  • 8715, 8716, 8717, 8718, 8740, 8741, 8742, 8746,
  • 9102, 9104.
  • Carter-Hoffman
  • Warmer Th15, Cc, Series: Bc

Description

The Pitco 60046201 Red Rocker Switch W/1/4" Tabs 7/8" x 1-1/2" 20A/250 V SPST is used to switch electrical current on or off as the rocker is pressed to complete or interrupt the circuit. The integrated rocker causes the contacts to be open or closed to allow or prevent current flow on a single circuit, respectively. It is mounted in the control panel of compatible equipment and is a set of tab terminals that can be wired. The system allows easy on/off control in the Operator.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.7 in
  • Height: 2 in
  • Width: 0.9 in

ANETS:

P9100-60

BLOOMFIELD:

2E-70411 8707-34

MIDDLEBY MARSHALL:

P9100-60

PITCO:

P9100-60

STAR MFG:

2E-70411 WS-8707-34

Step1: Turn off and disconnect power to secure from the electric shock.

Step2: Mount switch into panel cutout until it clicks or seats firmly.

Step3: Connect tab terminals: line to one side, load to other.

Step4: Ensure secure crimp connections and no exposed wire.

Step5: Restore power and test switch operation.

Step6: Check the red rocker illuminates/operation works; replace if loose.

Step7: Always ensure the circuit is rated and use insulated tools.

  • What maintenance is required for the Pitco 60046201 Rocker Switch?

    Regularly inspect the rocker switch for loose tab connections, discoloration, or signs of electrical wear. Keep the switch surface clean and dry to prevent contact issues and overheating. Disconnect equipment power before servicing. Periodically test the switch for smooth on/off operation and proper illumination response if lighted.

  • What are common issues with the Pitco 60046201 Rocker Switch?

    • Contact wear causing intermittent switching.
    • Terminal loosening leading to power loss.
    • Switch overheating under high load.
    • Mechanical sticking or rocker misalignment.
    • Internal contact oxidation reducing conductivity.
