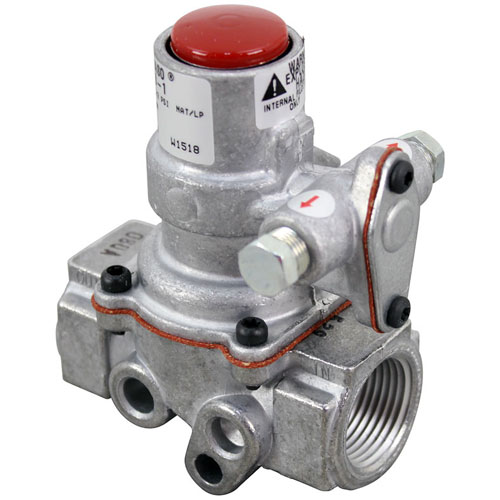

APW 2092702 Gas Griddle Pilot Safety Valve

SKU: 2092702 1-2092702 Brand:
APW
Availability:
In Stock
(0)
$268.03 Price reduced from $660.18
Save $392.15
Have a Question? +1 (866) 863-0907

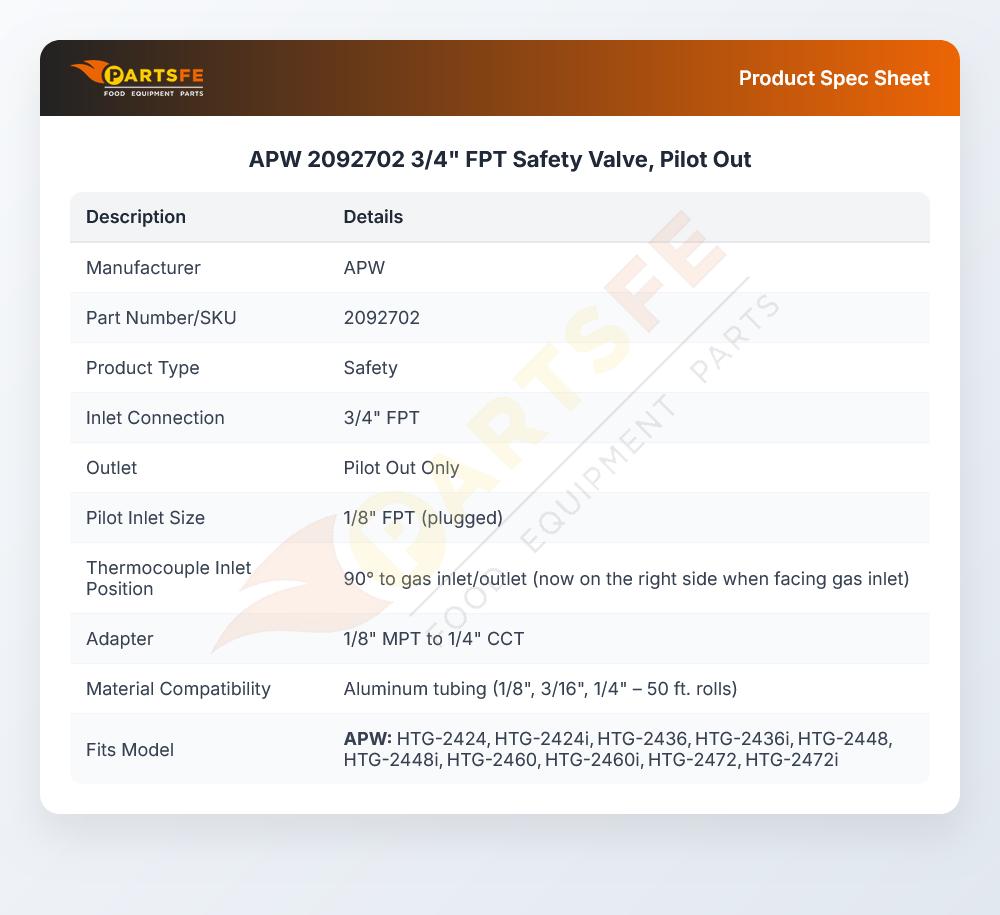

Specifications:

  • New Style Baso Valve
  • Baso Safety 3/4" Fpt, Pilot Out Only, 1/8" Fpt,
  • Pilots Plugged.
  • For 1/8" Mpt To 1/4" Cct Use # 26-1397 Adaptor
  • American Permanent Ware
  • Broiler Gcb, Gcrb
  • Griddle Ggm, Ggt
  • New Style Has Thermocouple Inlet 90 Degrees To Gas In/Out.
  • Product Change: Baso Has Changed This Valve.
  • They Turned The Thermocouple Hole 90 Deg.
  • It Now Is On The Right Side When Facing The Gas Inlet.
  • - Not On The End.

Description

The APW 2092702 Gas Griddle Pilot Safety Valve controls the supply of gas to the pilot and lights up when needed and closes off the fuel when there is no flame present. It is an automatic system that reacts to the pilot flame condition to ensure constant gas control. The valve is installed in the gas line of a commercial griddle so that it is placed close to the pilot assembly to fit into the ignition system of the appliance and to ensure that it works as it should without disrupting other parts of the appliance.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 4.5 in
  • Height: 2.5 in
  • Width: 3.5 in

APW WYOTT:

AS-2092702

Step1: Shut off system pressure and isolate line before starting.

Step2: Remove old valve and clean threads thoroughly.

Step3: Apply thread sealant and install new valve in correct flow direction.

Step4: Tighten securely without over-torquing.

Step5: Restore pressure slowly and test for leaks; ensure proper relief operation. Wear protective gear and follow safety procedures.

  • What maintenance is required for the APW 2092702 Safety Valve?

    Inspect and test the valve regularly to ensure proper pressure relief and pilot operation. Clean deposits from the seat and check for leaks. Routine servicing prevents malfunction and maintains safe system pressure control under varying operating conditions.

  • What are common issues with the APW 2092702 Safety Valve?

    • Pressure leakage from worn seat or seal failure.
    • Pilot malfunction causing improper relief response.
    • Valve sticking due to debris or scale buildup.
    • Inconsistent pressure regulation under high load.
    • Erratic opening pressure or delayed reset performance.
