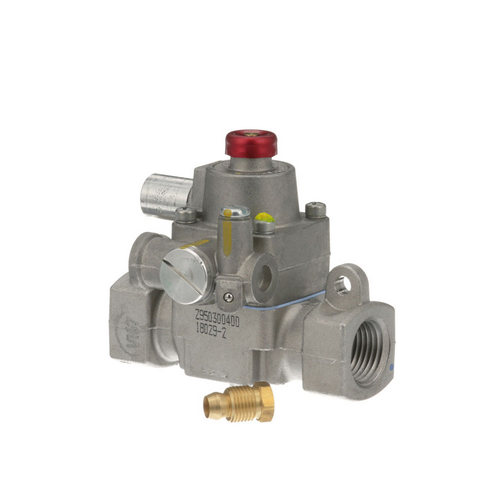

Blodgett 55127 Oven Pilot Safety Valve TS11 1/4" Tube Fitting

Gas Flow Control:
Controls the movement of gas from the supply connection to the burner assembly according to the oven's operating requirements. When the heating system calls for burner operation, the valve permits the required fuel flow toward the burner. When the heating cycle ends or the control sequence requires shutdown, the valve interrupts the gas supply. Consistent valve operation helps provide controlled fuel delivery and supports the intended relationship between the gas supply, burner, and oven controls.

Heating Cycle Support:
Supports the oven's heating process by coordinating gas availability with burner operation throughout the cooking cycle. The valve works with the ignition and control components so that fuel is available during the appropriate stages of heating. As the oven cycles through heating and shutdown conditions, the valve responds to the control sequence to regulate fuel delivery accordingly. Proper operation helps maintain consistent burner activity and supports stable heat generation during repeated oven cycles.

Replacement Guidelines:
Replace the Oven Safety Valve if it is damaged, cracked, corroded, leaking, or no longer provides proper gas-flow control. The part number 55127 and TS configuration should be verified before replacement to ensure the correct oven safety valve is selected. Replace the valve if deterioration affects gas flow, connection integrity, sealing, safety control, or normal oven operation. Gas-system service should be performed by a qualified technician.

Common Failure Symptoms:

• Burner does not receive gas as expected during a heating cycle.
• Gas flow becomes inconsistent during burner operation.
• Valve fails to interrupt gas flow when required by the control sequence.
• Visible cracking, corrosion, or physical damage develops.
• Signs of gas leakage appear around the valve or connections.

Equipment Compatibility:
The Blodgett 55127 Oven Safety Valve 1/4" Tube Fitting TS11 is intended for the specified Blodgett oven application requiring this valve configuration. Confirm the applicable equipment information before selecting the component.

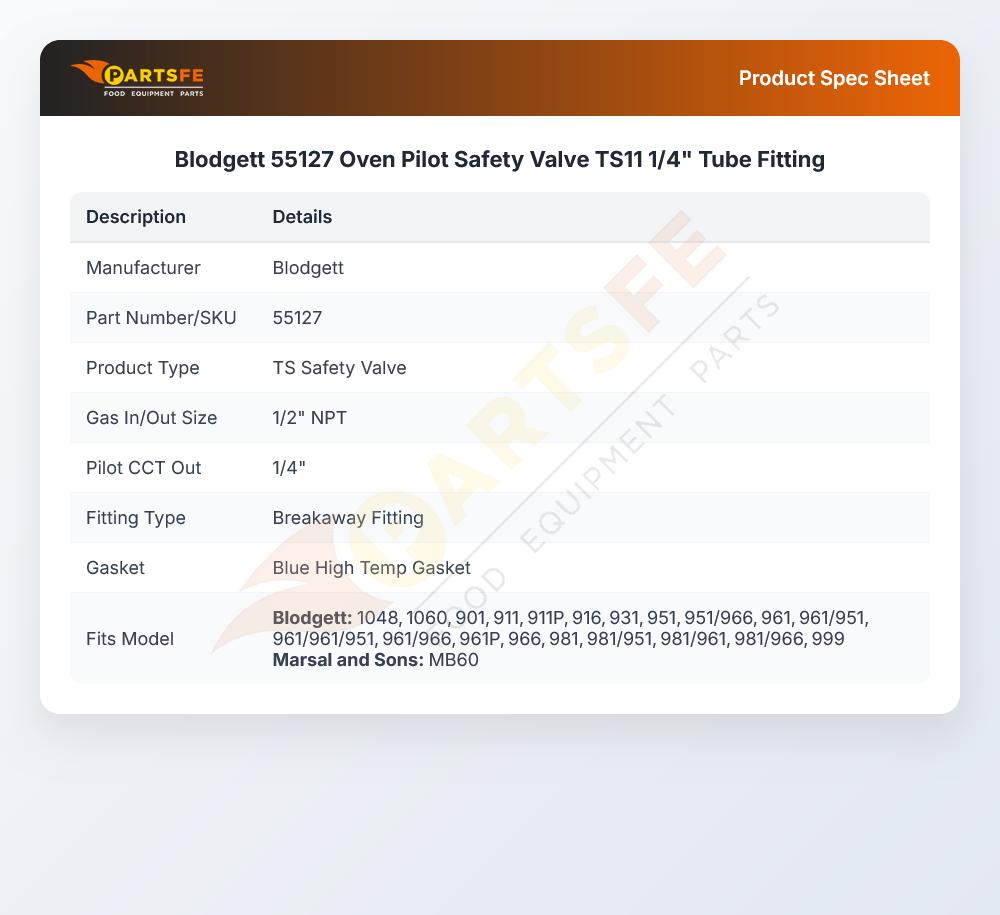

Technical Specifications:
Brand: Blodgett
Part Number: 55127
Product Name: Safety Valve
Equipment Type: Commercial Gas Oven
Tube Fitting: 1/4"
Configuration: TS11

Step1: Turn off the gas supply and unplug the oven to prevent fire hazards.

Step2: Remove the access panel to reach the existing pilot valve.

Step3: Disconnect the gas tubing and mounting screws from the old valve.

Step4: Position the new pilot safety valve and secure it with screws.

Step5: Reconnect the gas tubing carefully, ensuring tight, leak-free connections.

Step6: Restore gas supply, check for leaks, and test pilot ignition.

• What maintenance is required for the Blodgett 55127 Pilot Safety Valve?

  Periodically check the valve for proper seating and smooth operation. Inspect the tube fitting for leaks or looseness. Test the pilot function to ensure consistent ignition, and verify that gas flows freely without obstruction during operation.

• What are common issues with the Blodgett 55127 Pilot Safety Valve?

  • Pilot fails to ignite.
  • Gas flow irregularities.
  • Valve sticking or binding.
  • Intermittent shutoff during operation.

• What does the Blodgett 55127 oven safety valve do?

  It regulates gas delivery to the oven burner according to the equipment's heating and control sequence.

• How does the safety valve support burner operation?

  It permits gas to reach the burner when required for heating and interrupts fuel delivery when the operating sequence calls for shutdown.

• Can a safety valve affect oven heating performance?

  Yes. Improper gas-flow control can contribute to interrupted burner operation, inconsistent heating, or failure to maintain normal oven operation.

• How does the safety valve work with the ignition system?

  The valve manages gas delivery while the ignition components handle burner ignition. Both systems operate together during the burner startup sequence.

• What happens when the safety valve does not open correctly?

  If the valve fails to permit the required gas flow, the burner may not ignite or the oven may experience interrupted heating operation.
