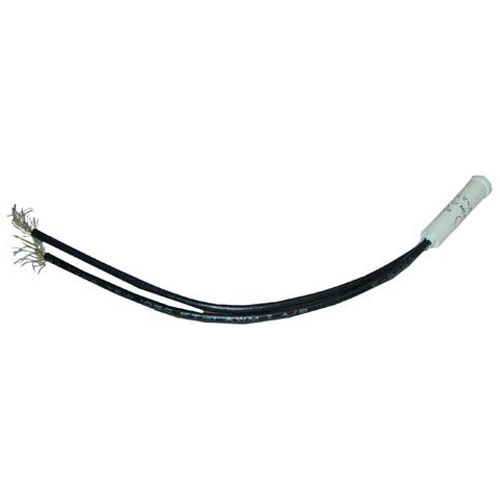

Star Mfg C9-3B82D0181 Warmer Indicator Light Red 5/16" Hole 250V

SKU: C9-3B82D0181 1-C9-3B82D0181 Brand:
Star Mfg
Availability:
In Stock
(0)
$10.14
Have a Question? +1 (866) 863-0907

Specifications:

  • 250 V [ Fits Hole 5/16" ] [10" Leads ] [Color Red]
  • [ Type Hat Flat ][ Bezel White]
  • Fastener Clip # 26-2263 Not Included.
  • Cleveland
  • Hobart Warmer, Fryer Ck91, Ck93
  • Lang Broilers: Ggb-(24Ti,36Ti,48Ti).
  • Cheesemelters: 0-2-10-(3,4,5,Including Chill'S
  • Models), mm-(2,3,4,24,36,48).
  • Fryer C-28, C-28M, C-40.
  • Grill G-(3E,4E,5E,6E,3Ei,4Ei,5Ei,6Ei(All With S/N E51388
  • To E89816 & Beg With F89817)), G-(24Ti,36Ti,48Ti,60Ti,
  • 72Ti), Gc-(24T,24Ti,36T,36Ti,48T,48Ti,60T,60Ti,72T,
  • 72Ti), Lg-(24,36,48,60,72(Excluding 380V Models)),
  • Lg-(24S,36S,48S,60S,72S), Lgr-48, Sxl-(24,36,48,60,
  • 72), Usa 24-6, Xl-(24,36,48,60,72).

Description

The Star Mfg C9-3B82D0181 Indicator Light Red works by switching on when electrical current is applied to pass through the internal element to indicate that the control circuit of the warmer is active. The light is low power consuming to be on when connected to the wiring of the equipment. It is attached to the front panel of warmers or buffet units, where it fits into a 5/16" hole. This red indicator is intended to run at 250 volts and can be regarded as a visible sign of the presence of electricity without interfering with the usual functioning of the warmer in service.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 11 in
  • Height: 0.5 in
  • Width: 0.5 in

BLOOMFIELD:

WS-50385

CLEVELAND:

109899

GENERAL ELECTRIC:

XNC25X78

HOBART:

00-342347-00001 342347-1 XNC25X78/342347-1

LANG:

31601-01 Y9-31601-01-1

MARKET FORGE:

10-5499 90-8926 S10-5499

MIDDLEBY MARSHALL:

3B82D0181 A710E0021 E336A0116

STAR MFG:

2J-31601-01 3B82D0181 A710E0021 C9-E336A0116 E336A0116 SY9-31601-01-1 Y9-31601-01-1

VULCAN HART:

00-342347-00001 342347-1

Step1: Turn off power and check circuit is de-energized.

Step2: Insert indicator light into panel hole and secure mounting nut firmly.

Step3: Connect leads to correct terminals per wiring diagram provided.

Step4: Tighten all connections and ensure insulation is properly seated.

Step5: Restore power and test indicator light operation.

Step6: Check for secure fit, correct illumination, and safe operation.

  • What maintenance is required for the Star Mfg C9-3B82D0181 Indicator Light?

    Keep terminals clean and ensure wiring is securely fastened to prevent intermittent contact. Periodically wipe the lens to maintain visibility and inspect for heat damage. Verify correct voltage operation and replace if flickering or dimming occurs.

  • What are common issues with the Star Mfg C9-3B82D0181 Indicator Light?

    • Loose terminal connections are causing intermittent illumination.
    • Flickering or dim output under voltage fluctuations.
    • Overheating of housing during extended use.
    • Moisture ingress leading to internal corrosion or failure.
    • LED degradation over time causes reduced brightness.
