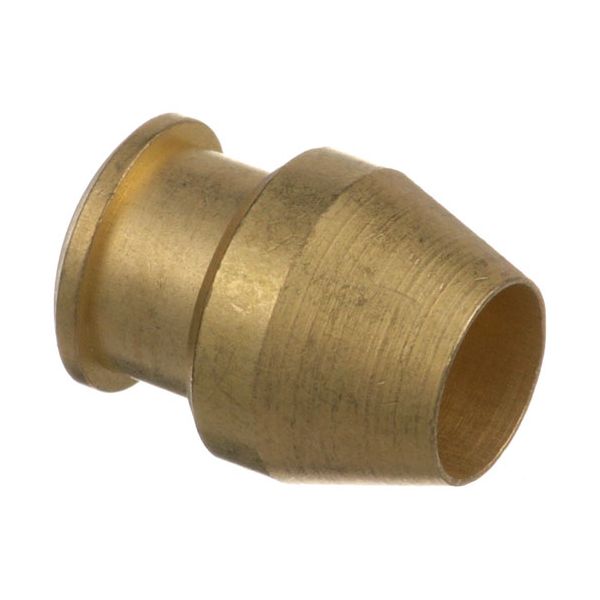

main product photo

Garland 2200705 Range Olive Ball Sleeve 3/16"

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $7.68 Regular Price $9.61
In stock
SKU
2200705
Add to Wish List
Plumbing Parts, Fittings/Couplings,
Manufacturer:
The Garland 2200705 Range Olive Ball Sleeve 3/16" regulates the flow of gas by creating a compression seal when clamped around the tubing to allow the flow of fuel through the pilot line. The shell is deformed as the fitting is clamped to form a close fit between the tube and the components. This is applied in gas range systems to assist in the uniform operation. Its size is equal to 3/16-inch tubing applied in compatible assemblies. The component is a constituent of the entire gas distribution route.

Dimensions

  • Length: 0.25 In
  • Width: 0.25 In
  • Height: 0.5 In
  • Weight: 0.25 lbs
https://partsfe.com/media/catalog/product/g/a/garland-2200705-3-16-olive-sleeve-for-51-1286-pilot-assembly-24954-2.jpg

Product Notes

  • Olive 3/16" Sleeve Only For # 51-1286 Pilot Assembly.
  • Garland
GARLAND:
Reviews 2
Write Your Own Review
You're reviewing:Garland 2200705 Range Olive Ball Sleeve 3/16"
Your Rating
FAQS
Customer Questions
What are the common issues with the Garland 2200705 Ball Sleeve?

  • Cracking or splitting from heat or pressure exposure.
  • Poor sealing leading to leaks.
  • Deformation affects proper fit and performance.
  • Wear from repeated use or installation.
  • Loose-fitting causes inconsistent performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the range gas supply before starting installation.

Step2: Disconnect the gas line fitting where the sleeve is used.

Step3: Remove the old ball sleeve from the connection.

Step4: Place the new ball sleeve onto the tubing correctly.

Step5: Reconnect and tighten the fitting securely.

Step6: Turn on the gas and check for leaks.
