Southbend SOU1177111 Range Burner Assembly Cast Iron 7-3/4" Long

SKU: SOU1177111 1-SOU1177111 Brand:
Southbend
Availability:
In Stock
(0)
$173.64 Price reduced from $326.99
Save $153.35
Have a Question? +1 (866) 863-0907

Specifications:

  • Cast Iron Burner Assembly,
  • 7-3/4" Long Overall
  • Southbend Restaurant Range Series 300, 400, Series S
  • Air Mixer Plate # Soup1146-- 262230

Description

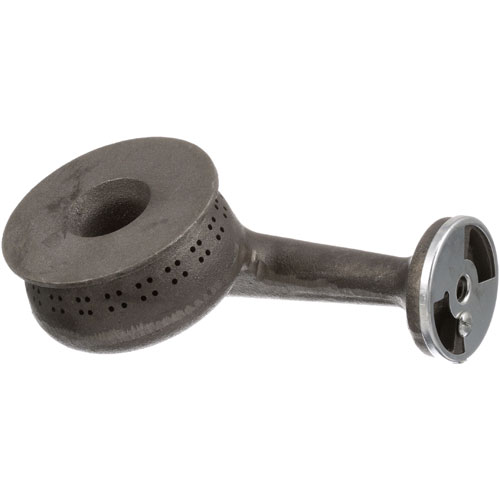

The Southbend SOU1177111 Range Cast Iron Burner Assembly directs gas into its ports and allows combustion to take place when ignited to create a flame on the top surface to cook on. It is attached to the burner box of the range and fits into position with the gas valve and source of ignition to cause the flame to be spread along its length of 7-3/4". The burner is placed under the grates of the cooktop, and it is on the surface where the pots and pans come in contact with the heat.

Dimensions:

  • Weight: 7.05 lbs
  • Length: 3.1 in
  • Height: 1.45 in
  • Width: 2.56 in

SOUTHBEND:

1177111

Step1: Turn off the gas supply and unplug the appliance.

Step2: Remove the old burner assembly by loosening mounting screws.

Step3: Clean the burner area of any debris or grease.

Step4: Position the new burner assembly and secure it with screws.

Step5: Reconnect any gas lines according to manufacturer guidelines.

Step6: Test the burner carefully for proper ignition and ensure there are no gas leaks.

  • What maintenance is required for the Southbend SOU1177111 Burner Assembly?

    Clean burner ports regularly to remove grease and debris buildup. Inspect for cracks or corrosion. Ensure proper alignment and secure installation. Routine maintenance ensures even flame distribution, efficient combustion, and secure cooking operation.

  • What are common issues with the Southbend SOU1177111 Burner Assembly?

    • Clogged burner ports causing uneven or weak flame output.
    • Cracks or warping from prolonged exposure to high heat.
    • Corrosion reducing burner efficiency and structural integrity.
    • Improper alignment leading to inconsistent heating patterns.
    • Delayed ignition due to restricted gas flow through ports.
