Southbend SOU3103902 Oven Blower Wheel 9-7/8" DIA 2-1/8"W 5/8" Bore
Special Price $154.10 Regular Price $290.21
In stock
SKU
SOU3103902
Manufacturer:

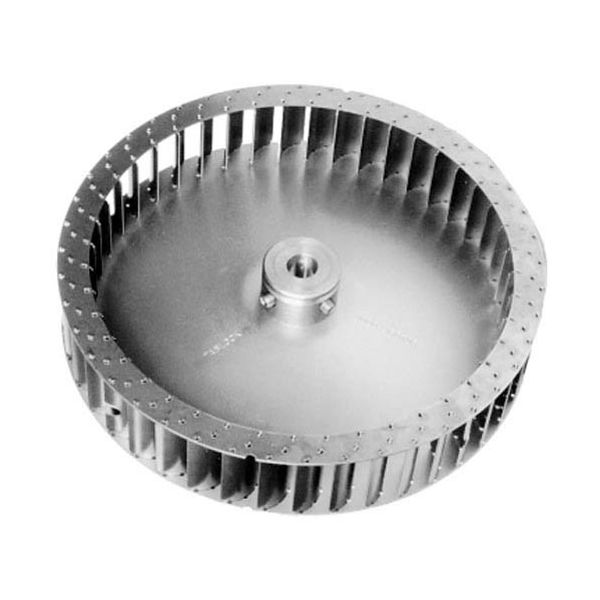

The Southbend SOU3103902 Oven Blower Wheel propels air through the chamber as the shaft turns. Its 9-7/8" measurement defines the outer circular diameter range, and the 2-1/8" dimension establishes the width of the rotating section. The 5/8" bore provides the central shaft opening, allowing rotary force to reach the assembly. Angled vanes capture air and redirect it through the circulation route, while the centered hub maintains alignment during rotation. The continuous airflow spreads heated air across the enclosed cooking area during heating phases.
Dimensions
- Length: 9.8 In
- Width: 9.8 In
- Height: 2 In
- Weight: 1.95 lbs
Product Notes
- Blower Wheel,
- 9-7/8" Diameter~
- Shaft Bore =5/8", 2-1/8" Wide,
- Flat Back, Changed To Concave Back.
- Ccw, Smooth Hub, Changed To Puller Hub.
- 2 Set Screws. Added Key Way & Key.
- Hobart Oven Cn & Most Other Convection Ovens.
- Vulcan Oven
- Southbend Mh36, Rh36
- Toastmaster Oven
