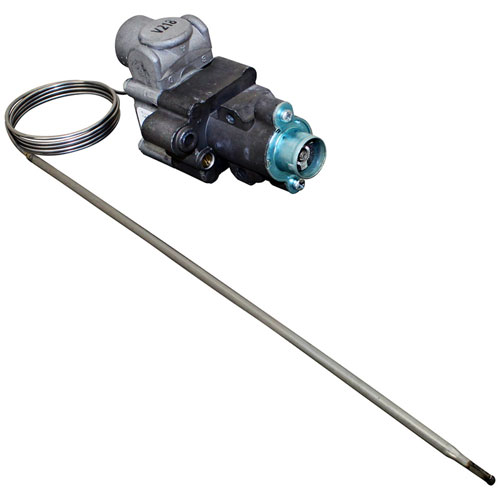

Southbend SOUB94-00002-01 Thermostat BJWA 3/16" X 12" Blub 36" Capillary

SKU: SOUB94-00002-01 1-SOUB94-00002-01 Brand:
Southbend
Availability:
In Stock
(0)
$161.12 Price reduced from $248.25
Save $87.13
Have a Question? +1 (866) 863-0907

Specifications:

  • Viewed From Rear:See Addl Image "Outlet Positions"
  • Temp Low-150-500, Bulb 3/16" X 12", Cap 36", Out 7/16" Cct
  • "C" Rear, Rotation 90 Cw
  • For 300 & 400 Series Use Dial # 22-1381 W/ 1-3/8"
  • Stem. Southbend Oven Series: 400 After 10/97. Series: 300
  • 1/88 & After. (Units Prior To 1/88 Use Type Bjfma T'Stat
  • # 46-1048 W/[Pilot Fitting )
  • Dial To Use # 22-1210 Off-Low-250-500
  • ***461285 Is Thermostat Only.
  • If Southbend B94-00002-01 Kit Is Needed, Use Ap# 8013586.
  • If Southbend B94-00001-01 Kit Is Needed, Use Ap# 8013587
  • ***

Description

The Southbend SOUB94-00002-01 Thermostat is a temperature control system that is installed in cooking appliances to regulate the amount of heat. It has a sensing bulb 3/16-inch by 12-inch with a 36-inch capillary, which senses the change in temperature in the cooking area. Depending on the perceived temperature, the thermostat opens and closes the control valve to regulate the flow of gas to achieve the desired temperature. It is installed as a component of the gas control system of the appliance, and it has a direct effect on the operation of the burners.

Dimensions:

  • Weight: 1.02 lbs
  • Length: 12.5 in
  • Height: 2 in
  • Width: 6.7 in

This Part Fits the Following Models

175 models
Southbend 300 SERIES Southbend 324E Southbend 336A Southbend 336A-1GL Southbend 336A-2GL Southbend 336A-2GR Southbend 336A-2TL Southbend 336A-2TR Southbend 336A-3G Southbend 336A-3T Southbend 336D Southbend 336D-1GL Southbend 336D-2GL Southbend 336D-2GR Southbend 336D-2TL Southbend 336D-2TR Southbend 336D-3G Southbend 336D-3T Southbend 348EE Southbend 348EE-2GL Southbend 348EE-2GR Southbend 348EE-2TL Southbend 348EE-2TR Southbend 35K Southbend 360AA Southbend 360AA-2GL Southbend 360AA-2GR Southbend 360AA-2RR Southbend 360AA-2TL Southbend 360AA-2TR Southbend 360AA-3GL Southbend 360AA-3GR Southbend 360AA-3TL Southbend 360AA-3TR Southbend 360AD Southbend 360AD-2GL Southbend 360AD-2GR Southbend 360AD-2RR Southbend 360AD-2TL Southbend 360AD-2TR Southbend 360AD-3GL Southbend 360AD-3GR Southbend 360AD-3TL Southbend 360AD-3TR Southbend 360DD Southbend 360DD-2GL Southbend 360DD-2GR Southbend 360DD-2RR Southbend 360DD-2TL Southbend 360DD-2TR Southbend 360DD-3GL Southbend 360DD-3GR Southbend 360DD-3TL Southbend 360DD-3TR Southbend 36N-XX Southbend 400 SERIES Southbend 424E Southbend 436A Southbend 436A-1GL Southbend 436A-2GL Southbend 436A-2GR Southbend 436A-2TL Southbend 436A-2TR Southbend 436A-3G Southbend 436A-3T Southbend 436D Southbend 436D-1GL Southbend 436D-2GL Southbend 436D-2GR Southbend 436D-2TL Southbend 436D-2TR Southbend 436D-3G Southbend 436D-3T Southbend 448EE Southbend 448EE-2GL Southbend 448EE-2GR Southbend 448EE-2TL Southbend 448EE-2TR Southbend 448EE-3GL Southbend 448EE-3GR Southbend 448EE-3TL Southbend 448EE-3TR Southbend 448EE-4G/T Southbend 448EE-HH Southbend 460AA Southbend 460AA-2GL Southbend 460AA-2GR Southbend 460AA-2RR Southbend 460AA-2TL Southbend 460AA-2TR Southbend 460AA-3GL Southbend 460AA-3GR Southbend 460AA-3TL Southbend 460AA-3TR Southbend 460AA-4GL Southbend 460AA-4GR Southbend 460AA-4TL Southbend 460AA-4TR Southbend 460AD Southbend 460AD-2GL Southbend 460AD-2GR Southbend 460AD-2TL Southbend 460AD-2TR Southbend 460AD-3GL Southbend 460AD-3GR Southbend 460AD-3TL Southbend 460AD-3TR Southbend 460AD-4GL Southbend 460AD-4GR Southbend 460AD-4TL Southbend 460AD-4TR Southbend 460DD Southbend 460DD-2GL Southbend 460DD-2GR Southbend 460DD-2TL Southbend 460DD-2TR Southbend 460DD-3GL Southbend 460DD-3GR Southbend 460DD-3TL Southbend 460DD-4GL Southbend 460DD-4GR Southbend 460DD-4TL Southbend 460DD-4TR Southbend B12C-B Southbend B12C-G Southbend B12C-H Southbend B12N-B Southbend B12N-G Southbend B12N-H Southbend B24C-BB Southbend B24C-BBB-SU Southbend B24C-BB-SU Southbend B24C-GG Southbend B24C-HH Southbend B24C-TT Southbend B24D-BBB-SU Southbend B24N-BB Southbend B24N-BBB-SU Southbend B24N-BB-SU Southbend B24N-GG Southbend B24N-HH Southbend B24N-TT Southbend B36A Southbend B36A-CCC Southbend B36A-GGG Southbend B36A-GRAD Southbend B36A-HHH Southbend B36A-TTT Southbend B36A-XX Southbend B36C-BBB Southbend B36C-GGG Southbend B36C-GRAD Southbend B36C-HHH Southbend B36C-TTT Southbend B36C-XX Southbend B36D-BBB Southbend B36D-GRAD Southbend B36D-HHH Southbend B36D-TTT Southbend B36D-XX Southbend B36N-BBB Southbend B36N-GGG Southbend B36N-GRAD Southbend B36N-HHH Southbend B36N-TTT Southbend B48A-CCCC Southbend B48A-GGGG Southbend B48A-TTTT Southbend B48D-CCCC Southbend B48D-GGGG Southbend B48D-TTTT Southbend B48N-CCCC Southbend B48N-GGGG Southbend B48N-TTTT Southbend BBB45K
Showing of 175.0
