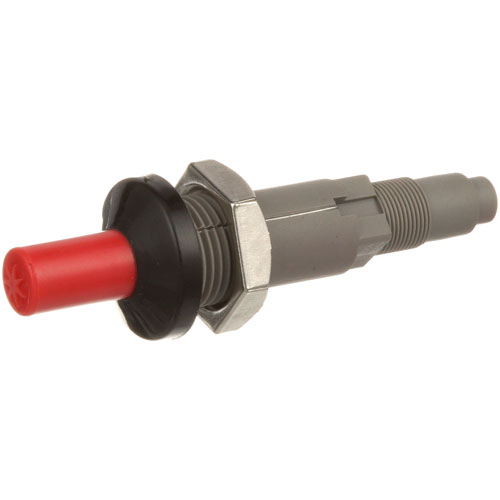

Frymaster 8101001 Piezo Ignition Spark Lighter W/ Palnut & 23" Wire

SKU: 8101001 1-8101001 Brand:
Frymaster
Availability:
In Stock
(0)
$3.52
Have a Question? +1 (866) 863-0907

Specifications:

  • Spark Lighter W/ Palnut, Piezo Ignition
  • 3-1/2" Long, Fits 3/4" Hole, Mount Has Built-In Ground.
  • For Black Electrode Wire Lead, 23" Wire 1/8" Round Female
  • Push-On X 1/8" Flat Female Push-On # 38-1333
  • For Orange Electrode Wire Lead, 20" Wire 1/8" Round Female
  • Push-On X 1/8" Flat Female Push-On # 38-1556
  • American Range
  • Anets Fryer Where Applicable
  • Griddle Scg24
  • Garland Fryer
  • Oven G284Rc, Stw286, Tg2A, Ttg2A.Series: H280.
  • Griddle Series: Gd,
  • Imperial Oven Series: Ihr & Ir W/Standard Oven.
  • Magikitchn Mkg(48,60,72)

Description

The Frymaster 8101001 Piezo Ignition Spark Lighter with Palnut produces a high-voltage spark when its actuator is touched, which lights gas in the burner to allow start-up. This is connected to a 23″ wire which in turn has the spark tip, and the palnut provided holds the igniter and wire in place. It is mounted on gas equipment that is compatible, and the spark tip connects with the gas flow to create ignition when the actuator is turned on. This system uses external sources of ignition and is accurate and hands-free in starting the appliance when it is operating normally.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3.5 in
  • Height: 1 in
  • Width: 1 in

AMERICAN RANGE:

10434 A10010 AMRA10010

ANETS:

60141501 9131-76 P9131-76

BAKERS PRIDE:

310123 AS-310123

DEAN:

810-1001

FRYMASTER:

810-1001 FM810-1001 FM8101001

GARLAND:

1309201 227158 GL1309201

GLOBE:

U03991290085

GRINDMASTER:

410-00334

GROEN:

159625

IMPERIAL:

1075 IMP1075

KEATING:

010946-IGNITER_ONLY

LOLO COMMERCIAL FOODSERVICE EQUIPMENT:

159847

MAGIKITCH'N:

2J-60141501

MONTAGUE:

25716-8

PITCO:

2J-60141501 60141501 P9131-76

RANDELL:

RDLR-E-10

RANKIN DELUX:

RDLR-E-10

ROYAL RANGE:

2173

SOUTHBEND:

1176119 SOU1176119

STAR MFG:

2J-60141501

TRI-STAR:

AS-310123

U-LINE:

10-344

Step1: Turn off gas and disconnect power to the fryer before starting installation.

Step2: Remove the access panel and locate the existing ignition lighter assembly.

Step3: Disconnect the old ignition spark lighter wire carefully and remove the retaining hardware or palnut.

Step4: Install the new ignition spark lighter securely and route the wire away from hot surfaces.

Step5: Reconnect wiring, restore power and gas, then test ignition for a consistent spark operation.

  • What maintenance is required for the Frymaster 8101001 Piezo Ignition Spark Lighter Wire?

    Keep the electrode and spark tip clean and free of grease buildup for reliable ignition performance. Inspect the wire and nut connection for looseness or wear and tighten as needed. Test Spark output periodically for safety.

  • What are common issues with the Frymaster 8101001 Piezo Ignition Spark Lighter Wire?

    • Weak or inconsistent spark output due to electrode wear or contamination.
    • Broken or frayed wire causing intermittent ignition failure.
    • Loose palnut connection leading to poor grounding and unreliable triggering.
    • Corroded ignition tip reducing conductivity and delayed spark response.
