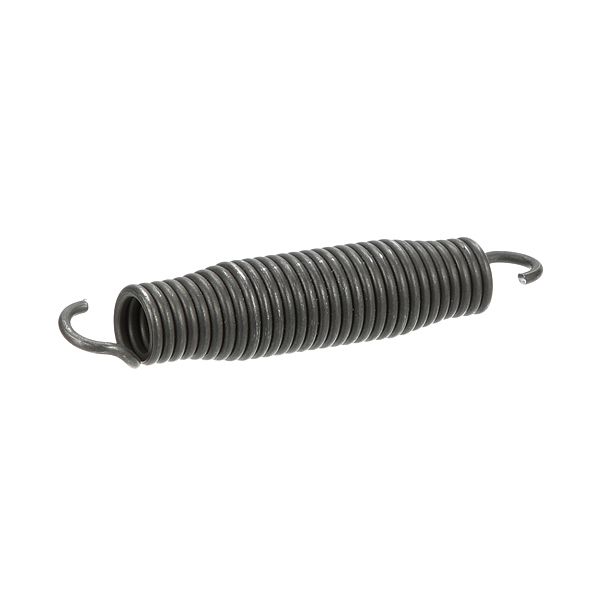

Southbend 1186547 Infrared Broiler Door Spring 0.156"

Rating:

17 Reviews Add Your Review

Special Price $39.56 Regular Price $62.81

In stock

SKU

1186547

Categories: Electrical & Hardware, Springs,

Manufacturer:

Southbend

The Southbend 1186547 Door Spring 0.156" is used to provide a regulated tension which aids in the opening and closing action of the broiler door. It works by counterbalancing of the door and allows it to move easily when it is used regularly. This spring is located between the door assembly and the supporting design and is a vital connection point of the door mechanism. Its exact size of 0.156" allows a better fit and stable operation in the appliance system. This element is to be fitted with the assembly, to ensure the required tension needed to the door moves correctly.

Dimensions

Weight: 1.26 lbs

Details

Supporting controlled movement of the broiler door, the Southbend 1186547 Infrared Broiler Door Spring is a mechanical component used within commercial infrared broiler door assemblies. The spring provides tension within the door mechanism to assist with controlled door movement and positioning. Its function works with the connected door hardware to support the intended opening and closing action of the broiler door.

Door Operation:
The spring provides tension within the oven door mechanism, helping counterbalance the door during its opening and closing cycle. This support helps control door movement and allows the door to operate more smoothly during regular commercial kitchen use.

Door Alignment:
Maintains spring tension within the door assembly to support consistent door positioning. Proper spring action works with the hinge mechanism to help the door follow its intended movement path and remain properly positioned against surrounding components.

Replacement Guidelines:
Replace the Infrared Broiler Door Spring if it is stretched, broken, deformed, corroded, or no longer provides the required spring tension for proper door movement. The part number 1186547 should be verified before replacement to ensure the correct oven door spring is selected. Replace the spring if deterioration affects door balance, movement, positioning, or normal oven operation.

Common Failure Symptoms:

Oven door feels heavier than usual.
Door opens or closes unevenly.
Door does not remain properly balanced.
Door appears misaligned.
Spring shows visible wear or damage.

Equipment Compatibility:
Designed for use with compatible Southbend commercial Infrared Broiler Door Spring. Verify the equipment model and manufacturer part number 1186547 before purchasing to help ensure the correct oven door spring is selected.

Technical Specifications:
Brand: Southbend
Part Number: 1186547
Component Name: Door Spring
Equipment Type: Commercial Oven

Replaces Parts

SOUTHBEND:

1183756, 1184998, 1186547, SOU1186547

Reviews 17

Write Your Own Review

FAQS

Customer Questions

Can I adjust the tension of the door springs to make the oven door easier or harder to open and close?

Some models of door springs allow for tension adjustment, which can customize the feel of the oven door. Consult your oven's user manual for information on adjustment.

How can I tell if my oven's door springs need replacement, and what are the signs of worn-out or damaged springs?

Signs of worn-out or damaged door springs may include difficulty in opening or closing the door, uneven door movement, or unusual sounds when operating the door.

What are tips for maintaining springs for oven doors to extend their lifespan?

Keep the area around the oven door springs clean and free of debris, grease, and food particles. Use a soft brush or a cloth to wipe away any buildup.

What maintenance is required for the Southbend 1186547 Door Spring?

Inspect the door spring regularly for signs of fatigue, stretching, or rust that may reduce tension and proper door closure. Ensure the spring maintains adequate tension to support smooth opening and closing of the broiler door. Lubricate pivot points if applicable to reduce friction and wear. Always disconnect power and allow components to cool before performing maintenance to ensure safety.

What are common issues with the Southbend 1186547 Door Spring?

Spring losing tension or elasticity.
Rust or corrosion from moisture exposure.
Door not close or open smoothly.
Occasional squeaking or misalignment.

What does the Southbend 1186547 Infrared Broiler Door Spring do?

The Southbend 1186547 Infrared Broiler Door Spring provides spring-assisted support for the broiler door during opening and closing.
