Genuine OEM Part

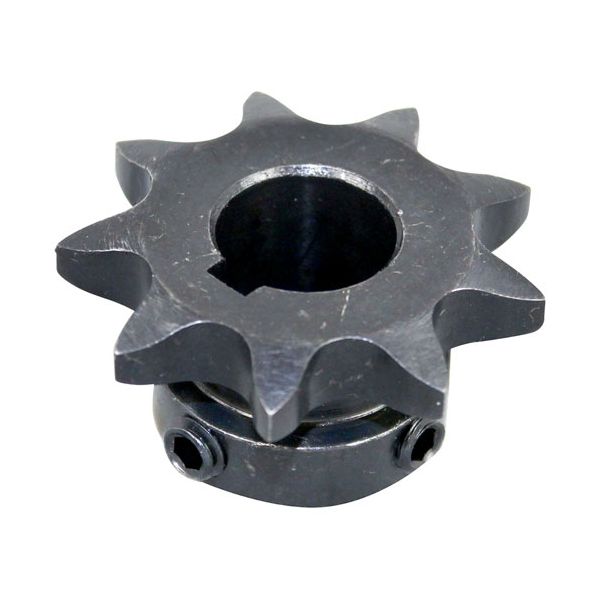

main product photo

Middleby Marshall 22152-0017 Oven Drive Shaft Sprocket 9-Tooth #40 Chain 5/8" Bore

Be the first to review this product
Special Price $32.76 Regular Price $35.95
In stock
SKU
22152-0017
Add to Wish List
Electrical & Hardware, Conveyor Parts,
Manufacturer:
The Middleby Marshall 22152-0017 Oven Drive Shaft Sprocket 9-Tooth 40-Chain 5/8" Bore is a rotating motion transfer machine that pushes a chain to move related mechanical parts. When the shaft rotates, the teeth of the sprocket contact the chain to ensure that they move in unison. This is a sprocket attached to a drive shaft in the conveyor or drive assembly of the oven. It is made to match similar chains and bearings in the system. The component is a part of the motion control mechanism, which assists in coordinating the work of internal assemblies in the process of cooking.

Dimensions

  • Length: 2 In
  • Width: 2 In
  • Height: 1 In
  • Weight: 0.19 lbs
https://partsfe.com/media/catalog/product/m/i/middleby-marshall-22152-0017-drive-shaft-sprocket-55249-2.jpg

Product Notes

  • Drive Sprocket, 9 Teeth~
  • 5/8" Shaft Bore, 1 11/16" Diameter.
  • Middleby Marshall
  • Oven Ps300, Ps310, Ps350, Ps360, Ps360Wb70, Js350.
MIDDLEBY MARSHALL:
Reviews
Write Your Own Review
You're reviewing:Middleby Marshall 22152-0017 Oven Drive Shaft Sprocket 9-Tooth #40 Chain 5/8" Bore
Your Rating
FAQS
Customer Questions
What maintenance is required for the Middleby Marshall 22152-0017 Drive Shaft Sprocket?

Inspect the sprocket for wear and proper alignment on the oven or conveyor. Bearings and ensure smooth rotation before operating the appliance.

What are the common issues with the Middleby Marshall 22152-0017 Drive Shaft Sprocket?

  • Chain slippage or misalignment.
  • Excessive wear on teeth.
  • Bearing noise or seizing.
  • Rust or contamination interfering with movement.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power to the appliance for safety.

Step2: Remove any covers or guards to access the existing sprocket.

Step3: Loosen and remove the old sprocket from the drive shaft.

Step4: Slide the new sprocket onto the shaft, aligning it with the chain or belt.

Step5: Tighten set screws or mounting bolts securely.

Step6: Replace guards and restore power.
