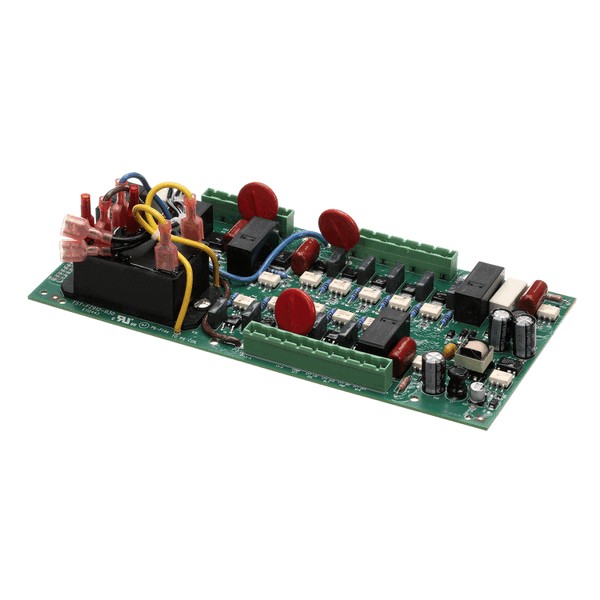

Stoelting 521514 Freezer Relay Board Service Part

SKU: 521514 1-521514 Brand:
Stoelting
Availability:
In Stock
(0)
$1,236.90
Have a Question? +1 (866) 863-0907

Specifications:

  • Type: Relay Board

Description

The Stoelting 521514 Freezer Relay Board Service Part is an electronic control component for commercial soft-serve equipment to control, and distribute electrical signals between system operations, during freezing and dispensing cycles. It works by accepting inputs from sensors and control switches, and distributing power and signals to motors, compressors, and other internal components to control the operation of the machine. This unit is a service replacement relay board and is mounted in the interior of compatible soft-serve freezer control cabinets to interface with wiring harnesses and electronic modules that control the system sequencing and operation.

Provides electrical switching and signal control for connected components. The Stoelting 521514 Relay Board switches electrical circuits in response to operating commands and coordinates electrical functions within the freezer control system. As part of the electronic control assembly, the relay board manages signal transfer between connected control sections and electrical components.

Equipment Compatibility:
Designed for use with compatible Stoelting commercial freezer models including DQU421, F122, F231, O231, O431, SU444, U421, U431, and U431X. The relay board is used within the electrical control system to provide circuit switching and signal transfer between connected components.

Product Specifications:
SKU: 521514
Manufacturer: Stoelting
Product Type: Relay Board
Application: Freezer

Key Features:

  • Controls electrical switching within the control circuit.
  • Switches electrical circuits in response to operating commands.
  • Transfers signals between connected control sections.
  • Interfaces between control inputs and outputs.
  • Connects with electronic control assemblies.

The freezer had improper electrical control, and replacing the relay board helped restore circuit switching and control system operation.

Step1: Turn off and unplug the freezer to prevent electrical shock.

Step2: Open the control panel to access the existing relay board.

Step3: Carefully disconnect all wiring from the old relay board.

Step4: Install the new relay board and reconnect all wires correctly.

Step5: Secure the board with screws and close the panel.

Step6: Restore power and test the freezer to ensure the relay operations properly.

  • What maintenance is required for the Stoelting 521514 Relay Board Service Part?

    Inspect the relay board regularly for loose connections, burnt components, or moisture buildup. Keep the control area clean and dry to prevent electrical faults. Ensure proper voltage supply and avoid overloading circuits. Always disconnect power before servicing to prevent electrical hazards.

  • What are the common issues with the Stoelting 521514 Relay Board Service Part?

    • The relay is failing to switch on or off.
    • Burnt contacts or arcing.
    • Intermittent electrical operation affecting cooling.
    • Board overheating under load.
    • Loose or damaged wiring connections.
