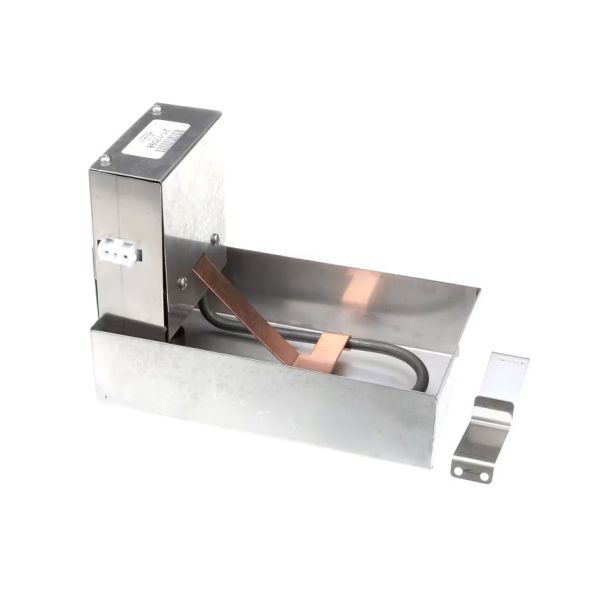

Structural Concepts 21-17098 Evaporator Pan Assembly W/Element

Rating:
5 5 1
1  Review Add Your Review
Special Price $593.68 Regular Price $775.95
In stock
SKU
21-17098
Add to Wish List
Manufacturer:
The Structural Concepts 21-17098 Evaporator Pan Assembly With Element collects, and evaporates condensate, and provides heat to eliminate ice formation by assembling pan with an in-built heating element. It operates by directing the condensate into the pan where the electric component heats the surface, resulting in the collected water vaporizing and returning to the airflow rather than pooling. This assembly is installed below the evaporator coils in the refrigeration unit and is placed at the bottom of the cold compartment, interconnected with the drain and electrical connections.

Dimensions

  • Weight: 0 lbs
https://partsfe.com/media/catalog/product/s/t/structural-concepts-21-17098-evaporator-pan-assembly-w-element-133010.jpg
Write Your Own Review
You're reviewing:Structural Concepts 21-17098 Evaporator Pan Assembly W/Element
Your Rating
FAQS
Customer Questions
What maintenance is required for the Structural Concepts 21-17098 Evaporator Pan Assembly?

Regularly clean the pan to remove frost or debris. Inspect for leaks, cracks, or corrosion. Ensure proper alignment with the evaporator coil. Proper control maintains efficient operation and prevents water overflow.

What are the common issues with the Structural Concepts 21-17098 Evaporator Pan Assembly?

  • Water pooling or leaks.
  • Cracks or warping of the pan.
  • Improper drainage is causing ice buildup.
  • Loose connections to the evaporator coil.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Unplug the unit to ensure safety during installation.

Step2: Remove the old evaporator pan carefully from its position.

Step3: Inspect the area for debris or damage before installing the new pan.

Step4: Install the new evaporator pan in the same orientation.

Step5: Secure with clips or screws, ensuring the pan sits level.

Step6: Reconnect any attached drain lines or sensors.

Step7: Restore power and check that the system cools properly and drains correctly.
