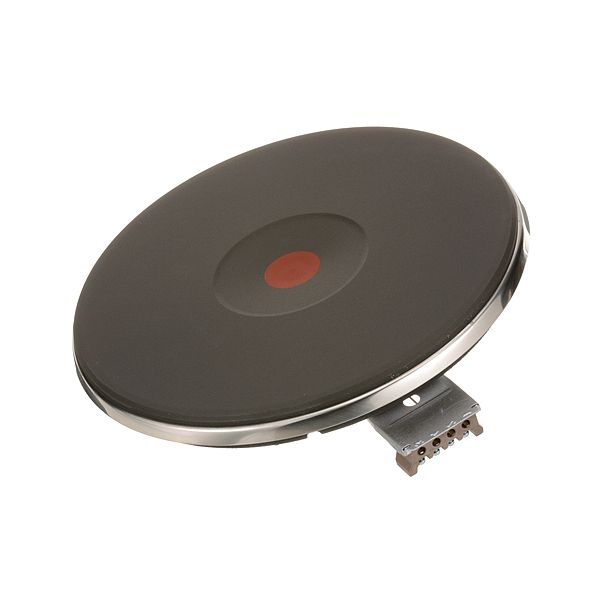

Southbend 1132B8703 Hot Plate Element W/4 Pin Terminals 9" DIA 2600W 240V
Special Price $125.80 Regular Price $236.92
In stock
SKU
1132B8703
Manufacturer:
The Southbend 1132B8703 Hot Plate Element is an electric heating element designed for commercial hot plates and cooking equipment requiring controlled surface heat generation. The 9" diameter element operates at 2600W on a 240V electrical supply and uses 4-pin terminals for connection to the appliance wiring system. It converts electrical energy into radiant heat for cooking applications such as heating cookware, simmering, and food preparation in commercial kitchens. This component is installed beneath the cooking surface of compatible hot plates and operates as the primary heat-producing section within the appliance’s electrical heating system during operation.
Dimensions
- Length: 9 In
- Width: 9 In
- Height: 2 In
- Weight: 8.1 lbs
Product Notes
- Solid Top Surface Heater, "French Plate"[ 240V 2600W ]
- [ 9.25" Dia.] [ Fits 8-3/4" Hole ][Terminals 4Ea Pin
- W/Screw, Bottom Has Centered Mounting Stud 1/4-20 Threads
- And Offset Pin.
- For Mouting Bracket Use # 26-2514
- Hobart Solid Range Top Units
- Toastmaster Solid Range Top
- Vulcan Range E24L, E36L, E48L, E60L, Vr3C, Vr4C, Vr6C, Vr7C
- Wells Hot Plate 501Fd, 501Ff, 502Fa, 502Fd, 502Ff, 502Fz
