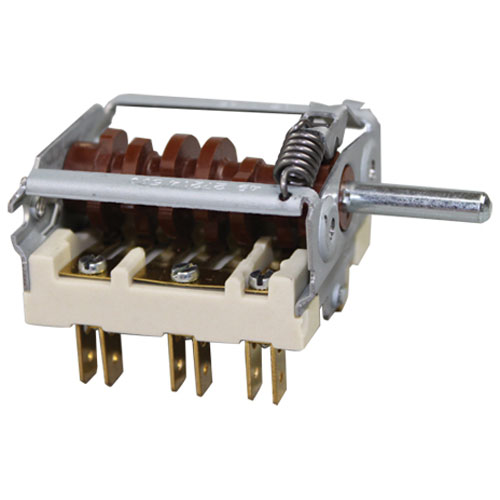

Lang LG2E-30304-09 Rotary Switch W/3/16" D-Stem, 6 Heat; 16A/250V

SKU: LG2E-30304-09 1-LG2E-30304-09 Brand:
Lang
Availability:
In Stock
(0)
$84.15 Price reduced from $158.47
Save $74.32
Have a Question? +1 (866) 863-0907

Specifications:

  • Rotary Switch, 6 Heat
  • 16A/250V, 3/16" D-Stem
  • Star Lang Range 36S-0, 36S-10, 36S-14, 36S-2, 36S-20,
  • 36S-3A,
  • 500S-A, 500S-B, 500S-C, 500S-D, 500S-E, 500S-F, 500S-G,
  • R12-Atg, R12-Ath, R30C-Ap, R30C-Pt, R30S, R30S-M, R60S,
  • Rf21S-A, Rf21S-C, Rf21S-D, Rf21S-G, Rf21S-H, Rt36A, Rt36E,
  • Rtc36A-480Vm, Rtc36E-240Vm

Description

The Lang LG2E-30304-09 Rotary Switch is used in kitchen equipment and it has six positions for the selection of heat levels. It has a small head with a 3/16” D-stem and has a current rating of 16A/250V. This switch is suitable for several models such as the Star Lang Range series. Its main purpose is to enable users to control heat output to improve the cooking process and versatility in meal preparation.

Dimensions:

  • Weight: 0.22 lbs
  • Length: 3.5 in
  • Height: 2 in
  • Width: 2.5 in

LANG:

2E-30304-09 2E30304-09 30304-09 LG2E30304-09 LG30304-09

SOUTHBEND:

1192770

STAR MFG:

2E-30304-09 2E30304-09 30304-09

STERO:

STA2E-30304-09 STA2E30304-09 STA30304-09

Step1: Disconnect electrical power at breaker and unit is de-energized.

Step2: Remove front control panel to access switch assembly.

Step3: Tag and detach wiring from existing rotary switch.

Step4: Unscrew and remove old switch from mounting position.

Step5: Fit new rotary switch into alignment slot.

Step6: Reconnect wires to correct terminals securely.

Step7: Reinstall panel, restore power, and cycle through all heat positions to confirm proper operation.

  • What maintenance is required for the Lang LG2E-30304-09 Rotary Switch?

    Regularly inspect and clean the rotary switch contacts to prevent carbon buildup and poor conductivity. Ensure all wiring connections are tight and free from corrosion. Turn off power before servicing to avoid electrical shock and equipment damage.

  • What are common issues with the Lang LG2E-30304-09 Rotary Switch?

    • Intermittent power loss due to worn or pitted contacts.
    • Overheating from loose or high-resistance connections.
    • Difficulty rotating or sticking equipment from internal wear.
    • Misalignment of the D-stem causing improper switching operates.

Customer Reviews

No reviews yet. Be the first to write one!
