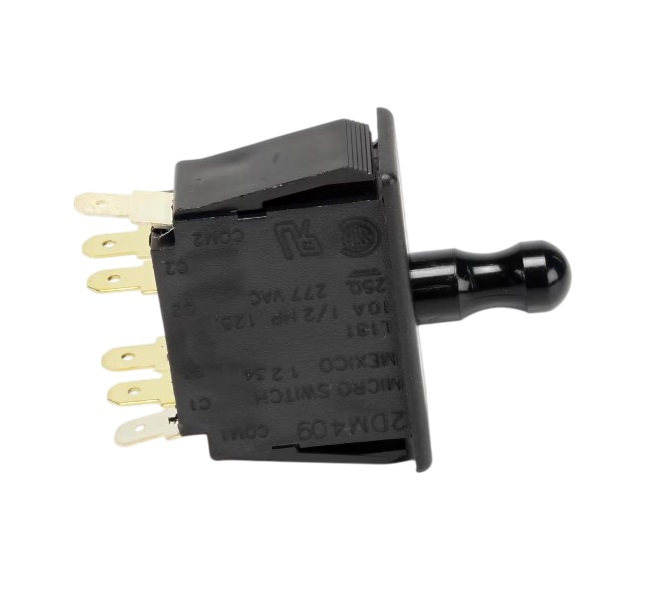

Southbend 1177566 Range Switch Push Button Door W/ 6"x3/16" Black Tab Term, 125/250V 1/2" X 1-1/2"

SKU: 1177566 1-1177566 Brand:
Southbend
Availability:
In Stock
(1)
$68.68 Price reduced from $129.33
Save $60.65
Have a Question? +1 (866) 863-0907

Specifications:

  • Door Switch, [ Black Push Button ] 10 Amp, 125/250V
  • [ Fits Hole 1/2" X 1-1/2" ] 6Ea 3/16" Tab Term.
  • [No, Nc ] [ 2 Pole ] 1/2Hp - 125->277V, Spdt
  • Southbend Eb-10Cch, Eb-10Pc, Eb-10Rt, Eb-10Sc, Eb-20Cch,
  • Eb-20Pc, Eb-20Rt, Eb-20Sc, Eb/10Cch, Eb/10Pc, Eb/10Rt,
  • Eb/10Sc, Eb/20Cch, Eb/20Pc, Eb/20Rt, Eb/20Sc, Eh-10Cch,
  • Eh-10Pc, Eh-10Rt, Eh-10Sc, Eh-20Cch, Eh-20Pc, Eh-20Rt,
  • Eh-20Sc, Es-10Cch, Es-10Pc, Es-10Rt, Es-10Sc, Es-20Cch,
  • Es-20Pc, Es-20Rt, Es-20Sc, Es/10Cch, Es/10Pc, Es/10Rt,
  • Es/10Sc, Es/20Cch, Es/20Pc, Es/20Rt, Es/20Sc, Gb-12Cch,
  • Gb-12Pc, Gb-12Rt, Gb-12Sc, Gb-15Cch, Gb-15Pc, Gb-15Rt,
  • Gb-15Sc, Gb-22Cch, Gb-22Pc, Gb-22Rt, Gb-22Sc, Gb-25Cch,
  • Gb-25Pc, Gb-25Rt, Gb-25Sc, Gs-12Cch, Gs-12Pc, Gs-12Rt,
  • Gs-12Sc, Gs-15Cch, Gs-15Pc, Gs-15Rt, Gs-15Sc, Gs-22Cch,
  • Gs-22Pc, Gs-22Rt, Gs-22Sc, Gs-25Cch, Gs-25Pc, Gs-25Rt,

Description

The Southbend 1177566 Range Switch Push Button Door is a quality electrical part that is useful in managing circuits in different equipments. It works through switching on or off an electrical circuit when the button is pressed enhancing power control in equipment that are 125/250V. This switch is built to last with a 6x3/16” black tab terminal that can be used in residential and commercial places. Advantages include flexibility in application, simple to install and increased safety measures that shields against electrical shocks, which makes it suitable for use in the kitchen and industries.

Dimensions:

  • Weight: 0.04 lbs
  • Length: 2 in
  • Height: 0.5 in
  • Width: 1.5 in

SOUTHBEND:

SOU1177566

Step1: Turn off power to the range at the circuit breaker before starting.

Step2: Remove the control panel or access cover to reach the old switch.

Step3: Disconnect wiring from the existing switch, noting their positions.

Step4: Install the new switch and reconnect wires securely.

Step5: Reattach the control panel and restore power.

Step6: Test all settings to ensure the switch operations correctly.

  • What maintenance is required for the Southbend 1177566 Switch?

    Check the range switch periodically for smooth operation. Remove dust and debris from the terminals and the surrounding area. Tighten any loose connections, and always power down before inspecting or cleaning.

  • What are common issues with the Southbend 1177566 Switch?

    • Button sticks or fails to reset.
    • Loose electrical terminals.
    • Poor or intermittent contact.
    • Mechanical wear causing unreliable activation.
