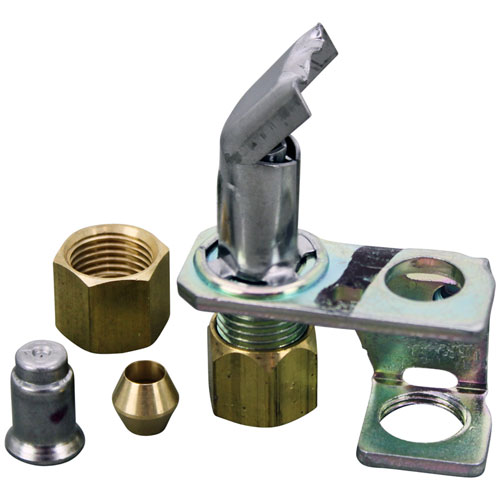

029769 Pilot Kit W/ Orifices, 3/16" & 1/4" Tube Size
Specifications:
- Nat/Lp Pilot, Factory # 2Ch-2, Tube Size 3/16" & 1/4",
- Flame Pattern Right
- Kit Includes : Pilot Orifice .010, Pilot Kit, Sleeve 1/4 X
- 3/16,Nut 1/4 X 3/16
- Lp Orifice # 26-1554
- Nat Orifice # 26-1555
- Garland Grill G24, Fryer G22-14F
- Keating Griddle, Miraclean Gas Griddle Pre-2000 Series
- Wolf Model?
Description
The Keating 029769 Pilot Kit is created to assist in the provision of dependable ignition to the Keating gas griddles and other commercial cooking appliances. The kit supplies a small, sustained pilot flame by its 3/16 and 1/4 gas tubing. The orifice limits and controls the flow of the gas so that the pilot flame is kept constant and of the right size, which is vital to the safe ignition of the main burner. The main gas flow is ignited by the persistence pilot flame when the main burner is switched on so that the startup becomes smooth and safe.
Dimensions:
- Weight: 0.2 lbs
- Length: 2 in
- Height: 2 in
- Width: 0.7 in
Step1: Turn off gas supply and allow unit to cool completely safely.
Step2: Remove existing pilot assembly and access panel.
Step3: Install new pilot kit securely onto mounting bracket.
Step4: Connect gas tubing and tighten fittings properly firmly.
Step5: Check alignment and ensure stable flame path.
Step6: Restore gas and test for leaks using soap solution carefully.
-
What maintenance is required for the Keating 029769 Pilot Kit?
Regularly inspect the pilot kit for debris, soot buildup, or blockages in the orifices and tubing. Clean components carefully to maintain proper gas flow and ignition performance. Ensure fittings are tight and leak-free. Always shut off gas supply before servicing.
-
What are common issues with the Keating 029769 Pilot Kit?
- Clogged orifices restricting gas flow.
- Weak or inconsistent pilot flame.
- Gas leaks at connection points.
- Difficulty igniting pilot.
- Improper flame size due to incorrect orifice usage.
