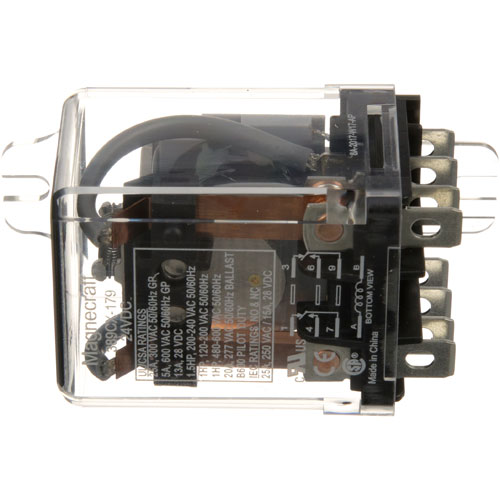

Turbochef TBC101273 2-Pole Relay 30A 24 VDC Class-F 2-Throw

SKU: TBC101273 1-TBC101273 Brand:
TurboChef
Availability:
In Stock
(0)
$66.98
Have a Question? +1 (866) 863-0907

Specifications:

  • Relay, 2 Pole,
  • 24Vdc, (8) 1/4" Tab Term
  • Turbo Chef Convection Oven: Hhb, Hhb2,
  • Convection & Microwave Oven: Ngc, Ngc2, Ngo/Sota, I3, I5

Description

The Turbochef TBC101273 Relay works based on the concept of switching electric circuits on or off with the help of an electromagnetic coil that enables, or disables the flow of current through 2-poles. It has a 2-throw design, which enables routing of power in 24 VDC systems. The 30-AMP relay is made to fit in commercial cooking equipment, where it is combined with the current electrical parts to control operations effectively. Its small size and standardized connections ensure that it can fit in the small spaces without the need to make changes of existing arrangement.

Dimensions:

  • Weight: 0.23 lbs
  • Length: 5 in
  • Height: 2.5 in
  • Width: 3 in

Step1: Disconnect electrical power to the oven and follow lockout/tagout procedures.

Step2: Open the service panel and locate the existing relay.

Step3: Label and disconnect all wires from the old relay terminals.

Step4: Remove the mounting hardware and take out the old relay.

Step5: Install the new relay in the same position and secure it firmly.

Step6: Reconnect the wiring according to the equipment wiring diagram.

Step7: Reinstall the panel, restore power, and test the relay for proper switching operation.

  • What maintenance is required for the Turbochef TBC101273 Mechanical Relay?

    Regularly inspect the relay for secure mounting and tight electrical connections to ensure accurate switching performance. Keep the unit free from dust, grease, and moisture buildup. Check for signs of overheating or contact wear. Always disconnect power before servicing to prevent electrical hazards.

  • What are common issues with the Turbochef TBC101273 Mechanical Relay?

    • Contact wear leading to intermittent switching.
    • Coil failure preventing relay activation.
    • Overheating under continuous load.
    • Loose or corroded terminal connections.
    • Sticking or delayed relay response.
