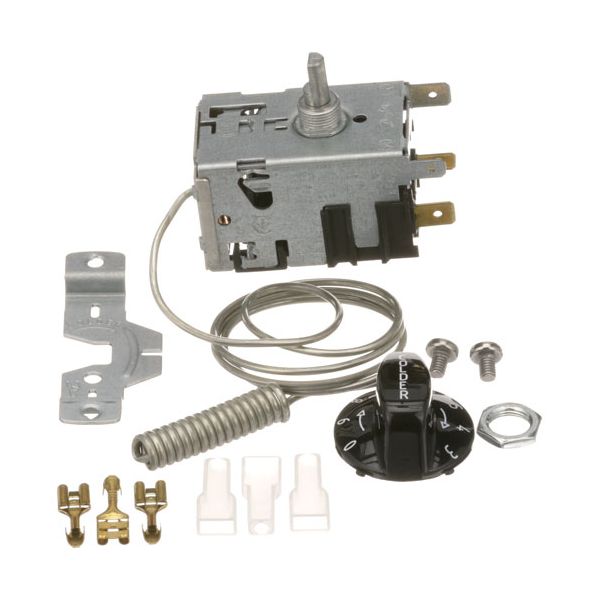

TRUE 800345 Freezer Temperature Control W/ Dial Coiled Bulb 25" Capillary

Rating:
5 5 11
11  Reviews Add Your Review
Special Price $232.29 Regular Price $357.93
In stock
SKU
800345
Add to Wish List
Fryer Parts, Deep Fryer Temperature Controls, Shop by manufacturers
Manufacturer:
The True 800345 Freezer Temperature Control Kit 25" Capillary controls the internal temperature by changing the cooling cycle based on the conditions detected in the freezer. It operates by using a capillary tube and sensor bulb which reacts to the temperature changes and sends a signal to turn on or turn off the refrigeration. This control kit is mounted in the control compartment of the freezer and the sensing bulb is located in the inside of the cabinet and the adjustment mechanism is available to adjust the preferred range of temperatures.

Dimensions

  • Length: 3.5 In
  • Width: 1.5 In
  • Height: 4.5 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/t/r/true-800345-freezer-temperature-control-w-dial-coiled-bulb-25-capillary-56470-2.jpg

Product Notes

  • Freezer T'Stat, W/ Dial, Temp -25 To +8 F,
  • Cut In -8 F, Cut Out -14 F
  • Cap 25", W/ Coiled Bulb
  • True Freezer T-24-Gc, T-36-Gc
Regulates freezer temperature by sensing changes in the cabinet environment and controlling the operation of the refrigeration system. The temperature control uses a dial adjustment and coiled sensing bulb to monitor temperature conditions and provide mechanical control signals based on the selected setting. Installed within the freezer control system, it manages cooling cycles by allowing the refrigeration system to operate according to the detected temperature level during normal equipment operation.

Temperature Monitoring:
The control responds to temperature conditions within the freezer through its coiled-bulb sensing arrangement. As the freezer temperature changes, the sensing component provides the temperature response used by the control to determine the appropriate control state. This sensing function works with the selected dial setting to coordinate the connected refrigeration control circuit according to the freezer's temperature-control arrangement. The 25-inch capillary specification identifies the stated capillary configuration associated with the sensing assembly.

Replacement Guidelines:
Replace the freezer temperature control if it is damaged, responds inconsistently, or no longer provides reliable temperature regulation. The part number 800345 should be verified before replacement to ensure the correct control is selected. Replace the component if deterioration affects temperature sensing, control response, cooling regulation, or normal freezer operation.

Common Failure Symptoms:

  • Freezer temperature fluctuates outside the selected setting
  • Cooling cycles do not start or stop at the expected temperature
  • Dial adjustment does not change the operating temperature
  • Compressor runs continuously or fails to cycle properly
  • Temperature control response becomes inconsistent

Equipment Compatibility:
The TRUE 800345 Freezer Temperature Control is designed for compatible TRUE commercial freezers. Verify the equipment model number, part number, sensing bulb style, capillary length, and specifications before purchase to ensure the correct application.

Technical Specifications:
Brand: TRUE
Part Number: 800345
Component Name: Temperature Control
Equipment Type: Freezer
Adjustment Type: Dial
Capillary Length: 25" CAP

Replaces Parts
TRUE:
800312, 800345, 800358, 988271, E800345, E800358, E988271, TRUE800312, TRUE800345, TRUE800358, TRUE988271
Reviews 11
Write Your Own Review
You're reviewing:TRUE 800345 Freezer Temperature Control W/ Dial Coiled Bulb 25" Capillary
Your Rating
FAQS
Customer Questions
What maintenance is required for the TRUE 800345 Temperature Control With Dial?

Inspect the dial and coiled bulb regularly for damage, kinks, or loss of calibration that affects temperature accuracy. Ensure the 25" capillary tube is properly positioned and securely mounted for accurate sensing. Clean surrounding areas to prevent debris buildup that may interfere with control performance. Always disconnect power before servicing to maintain safety.

What are the common issues with the TRUE 800345 Temperature Control With Dial?

  • Inaccurate temperature readings.
  • Frozen or stuck dial.
  • Compressor failing to cycle on or off correctly.
  • Electrical connection faults are causing intermittent operation.

What type of freezer temperature control is the TRUE 800345?

The TRUE 800345 is a dial-operated freezer temperature control with a coiled bulb for compatible TRUE freezer equipment.

How does the coiled bulb relate to temperature control?

The coiled bulb forms part of the sensing arrangement that allows the control to respond to temperature conditions within the freezer.

What does the capillary specification refer to on the TRUE 800345?

The capillary is the sensing connection associated with the coiled-bulb configuration, and this model has a specified 25-inch CAP.

How does the dial interact with the thermostat's operation?

The dial provides the adjustment interface used to select the temperature-control setting for the thermostat.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Unplug the freezer to prevent electrical shock.

Step2: Remove the interior panel to access the old temperature control.

Step3: Disconnect the wiring harness from the existing control.

Step4: Carefully remove the coiled bulb from its mounting clip.

Step5: Install the new control, positioning the bulb in the clip securely.

Step6: Reconnect the wiring harness, replace the panel, and restore power.

Step7: Test the control dial to ensure proper temperature adjustment.
