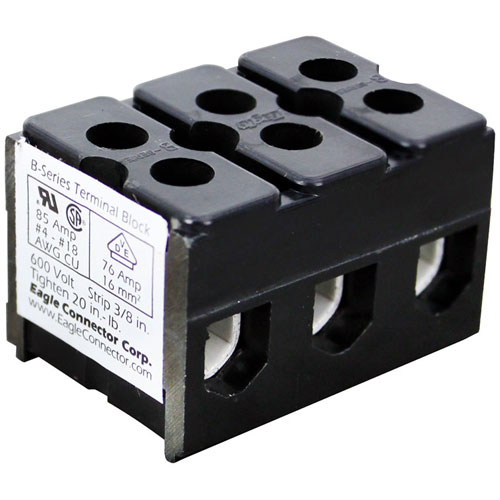

Southbend 1177361 Combi Oven Terminal Block 3-Pole 85A 600V

SKU: 1177361 1-1177361 Brand:
Southbend
Availability:
In Stock
(1)
$23.70 Price reduced from $48.36
Save $24.66
Have a Question? +1 (866) 863-0907

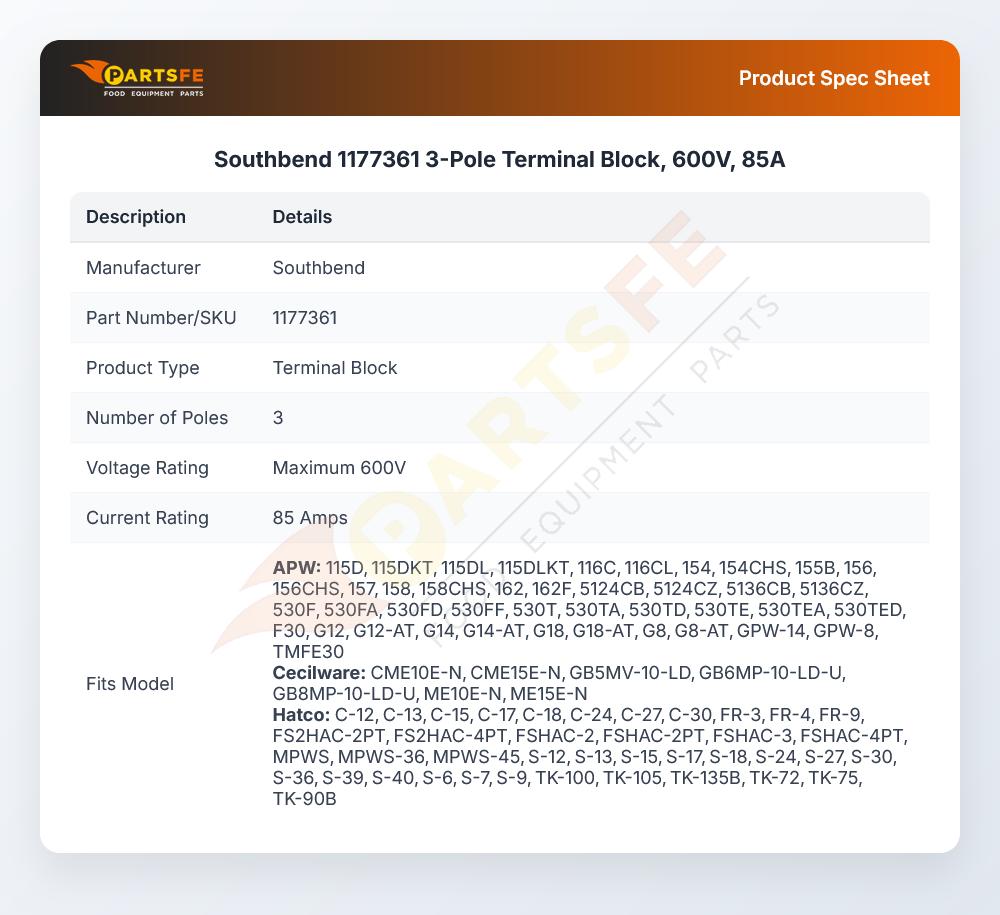

Specifications:

  • Terminal Block, 3 Pole
  • Max 600V, 85 Amp
  • Alto-Shaam Food Warmers
  • Hatco
  • Booster Compact (480V Units: 4 To 18Kw & 24 To 45Kw),
  • Imperial & Powermite (480V Units: 24 To 45Kw).
  • Series: 3Cs, Fr.
  • Star Broiler 155, 157
  • Griddle 154, 156

Description

Southbend 1177361 Terminal Block is an essential electrical connector that is used to securely handle the high power connections in commercial combi ovens. It is a 3-pole terminal block that can operate up to 85 amps at 600 volts, which enables efficient electrical current to be distributed to various parts of an oven. It is used to safely support of electrical wires and to maintain a stable flow of power with minimal possibility of electrical faults or overheating. This terminal block has been designed to be accurate and stable in order to keep high-capacity cooking equipment safe and functional kitchens.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 1.2 in
  • Width: 1.2 in

ALTO-SHAAM:

BK-3019

APW WYOTT:

2E-P1003A

CECILWARE:

B000A B000AL

GRINDMASTER:

B000A

HATCO:

02-15-003 02-15-003-00 02-15-046 02-15-046-00 02.15.003 02.15.003.00 02.15.046 02.15.046.00 R02-15-003 R02-15-003-00 R02-15-046 R02-15-046-00 R02.15.003 R02.15.003.00 R02.15.046 R02.15.046.00

STAR MFG:

2E-Y2849 Y2849

Step1: Disconnect power completely and verify zero voltage before opening the unit.

Step2: Remove rear panel to access the existing terminal block and wiring connections.

Step3: Label and carefully disconnect all wires from the old terminal block.

Step4: Remove mounting screws and take out the damaged terminal block.

Step5: Install the new terminal block in the same position and secure tightly.

Step6: Reconnect wires firmly to correct terminals and inspect for tight, clean contacts.

Step7: Restore power and test for stable electrical operation and no overheating.

  • What maintenance is required for the Southbend 1177361 Terminal Block?

    Regularly inspect the oven terminal block for loose connections, corrosion, or heat damage. Tighten terminals to proper torque specifications and ensure wiring insulation remains intact. Keeping connections secure prevents electrical faults. Always disconnect power before servicing to ensure safety during maintenance.

  • What are common issues with the Southbend 1177361 Terminal Block?

    • Overheating due to excessive current or poor contact.
    • Corrosion or oxidation on terminals affecting conductivity.
    • Cracked or damaged housing leading to electrical exposure risks.
