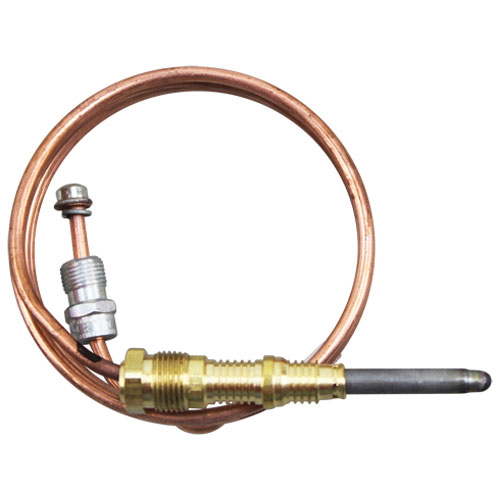

Blodgett 41163 Gas Broiler Thermocouple 36" Long 20-30mV

SKU: 41163 1-41163 Brand:
Blodgett
Availability:
In Stock
(0)
$18.68 Price reduced from $24.25
Save $5.57
Have a Question? +1 (866) 863-0907

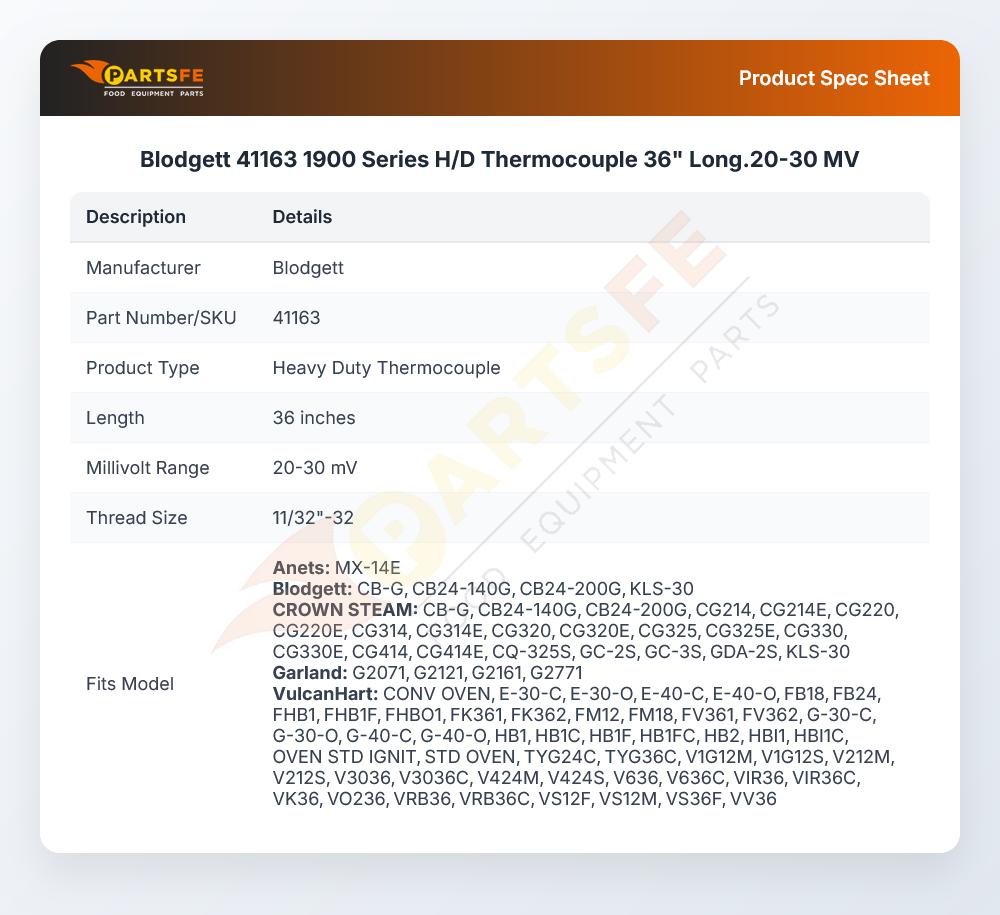

Specifications:

  • 1900 Series Heavy Duty Thermocouple 36" Long.20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32
  • Anets Fryer 14Gs(U)
  • Garland Bake/Roast Deck Oven G2071, G2121, G2161, G2771
  • Market Forge
  • Steamer Where Applicable
  • Southbend Nodel?
  • Vulcan Hart Model?
  • Wolf Model F4-27

Description

The Blodgett 41163 Gas Broiler Thermocouple 36" Long 20-30mV is a component that measures the temperature of equipment used in commercial cooking. It is gas-fired by producing a small electrical voltage that varies with the heat at the sensing tip. It is inserted between the pilot or burner assembly and the control module of compatible Series ovens and other appliances. It is a high-duty thermocouple and is applied in such applications where a length and voltage output are mostly required.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 4.25 in
  • Height: 1 in
  • Width: 1 in

ANETS:

P8903-48

CROWN STEAM:

6-36TB PE-145

GARLAND:

1019436

HOBART:

00-715005 00-880828 15005 18328 715005 718328 880828 HOB00-715005 HOB00-880828 HOB15005 HOB18328 HOB715005 HOB718328 HOB880828

MARKET FORGE:

10-6048 97-5493 975493 MAR10-6048

PITCO:

P8903-48

SOUTHBEND:

1161521 6-36TB PE-145 SOU1161521 SOU6-36TB

U-LINE:

1900-036

VULCAN HART:

00-715005 00-880828 15005 18328 715005 718328 880828 VH00-880828 VH718328 VH880828

Step1: Turn off gas and power to the appliance for safety.

Step2: Remove the old thermocouple from the gas valve and pilot assembly.

Step3: Insert the new thermocouple into the pilot bracket securely.

Step4: Connect the thermocouple lead to the gas valve.

Step5: Ensure all connections are tight and test ignition.

  • What maintenance is required for the Blodgett 41163 Thermocouple?

    Keep the thermocouple tip clean and check electrical connections. Ensure the sensor is properly aligned with the flame. Regular inspection ensures safe operation and accurate temperature sensing.

  • What are common issues with the Blodgett 41163 Thermocouple?

    • Applinace fails to ignite.
    • Sensor not detecting flame.
    • Loose or corroded wiring.
    • Tip misalignment affecting operation.
