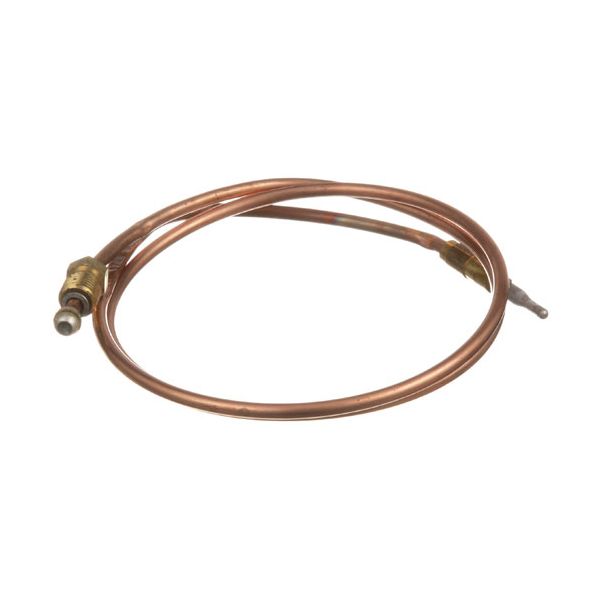

main product photo

Garland 2200602 Range Thermocouple 24" 20-30mV 9mm

Be the first to review this product
Special Price $39.59 Regular Price $70.69
In stock
SKU
2200602
Add to Wish List
Fryer Parts, Fryer Thermocouples, Shop by manufacturers
Manufacturer:
The Garland 2200602 Range Thermocouple 24" produces a minute electrical signal when the sensing tip is heated by a flame, and this signal can be used by the control system to sense the presence of a flame. Its length of 24 inches and diameter of 9 mm are extended to the heat source and generate the necessary 20 -30 mV output. This thermocouple is fitted in the combustion chamber of suitable Garland equipment, and the sensing element is placed in the flame path, and the lead is connected to the gas valve or controller.

Dimensions

  • Length: 6 In
  • Width: 3 In
  • Height: 0.7 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/g/a/garland-2200602-sit-type-24-metric-thermocouple-20-30-mv-9mm-thread-for-oven-38374-2.jpg

Product Notes

  • 24" Metric Thermocouple, Sit Type, 20-30 Mv
  • 9Mm Thread (M9-1.0)
  • Garland
  • Oven Gd24Gff,
  • G24-15Hfsd, Gd-152Hff, Gd-303Hff, Gd-304-Hff, Ms54R, Ms54Rc,
  • Ms54Rce, Ms54Re, Ms54S, Ms54Se, Ms54T, Ms54Te, Mst43R,
  • Mst43Rc, Mst43Rce, Mst43Re, Mst43S, Mst43Se, Mst43T,
  • Mst43Te, Mst44R, Mst44Rc, Mst44Rce, Mst44Re, Mst44S,
  • Mst44Se, Mst44T, Mst44Te, Mst4S, Mst4Se, Mst4T, Mst4Te,
  • Mst54R, Mst54Rc, Mst54Rce, Mst54Re, Mst54S, Mst54Se, Mst54T,
  • Mst54Te
Reviews
Write Your Own Review
You're reviewing:Garland 2200602 Range Thermocouple 24" 20-30mV 9mm
Your Rating
Related Posts
  1. Thermocouples Explained: Types, Functions, Installation & Maintenance Guide for Commercial Equipment
FAQS
Customer Questions
What maintenance is required for the Garland 2200602 Thermocouple?

Inspect the thermocouple for grease buildup, corrosion, or loose connections that could impact performance. Clean the sensing tip to ensure accurate flame detection. Verify proper placement in the pilot flame. Always disconnect the gas supply before servicing to ensure better handling.

What are common issues with the Garland 2200602 Thermocouple?

  • Pilot flame not staying lit accurately.
  • Low or unstable millivolt output.
  • Misalignment with the pilot flame.
  • Worn or damaged thread connections.
  • Residue buildup affecting sensing accuracy.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off oven power and gas supply, and allow unit to cool completely to ensure safety.

Step2: Remove access panel and place existing thermocouple near burner assembly.

Step3: Disconnect old threaded thermocouple using proper tools.

Step4: Install SIT Type thermocouple, hand-tighten then secure.

Step5: Reconnect leads and ensure proper alignment and secure fit.

Step6: Restore power and test ignition and flame sensing for proper operation.
