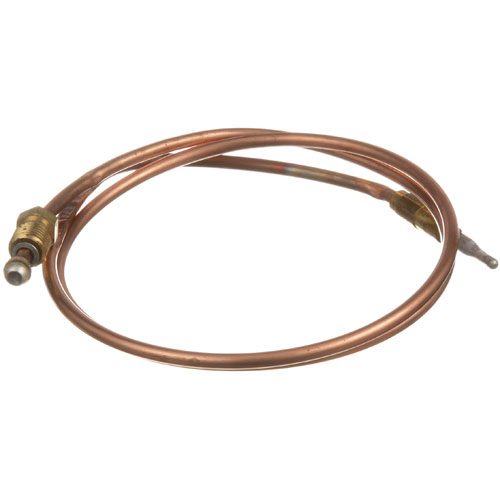

Garland 2200602 Range Thermocouple 24" 20-30mV 9mm

SKU: 2200602 1-2200602 Brand:
Garland
Availability:
In Stock
(0)
$39.59 Price reduced from $70.69
Save $31.10
Have a Question? +1 (866) 863-0907

Specifications:

  • 24" Metric Thermocouple, Sit Type, 20-30 Mv
  • 9Mm Thread (M9-1.0)
  • Garland
  • Oven Gd24Gff,
  • G24-15Hfsd, Gd-152Hff, Gd-303Hff, Gd-304-Hff, Ms54R, Ms54Rc,
  • Ms54Rce, Ms54Re, Ms54S, Ms54Se, Ms54T, Ms54Te, Mst43R,
  • Mst43Rc, Mst43Rce, Mst43Re, Mst43S, Mst43Se, Mst43T,
  • Mst43Te, Mst44R, Mst44Rc, Mst44Rce, Mst44Re, Mst44S,
  • Mst44Se, Mst44T, Mst44Te, Mst4S, Mst4Se, Mst4T, Mst4Te,
  • Mst54R, Mst54Rc, Mst54Rce, Mst54Re, Mst54S, Mst54Se, Mst54T,
  • Mst54Te

Description

The Garland 2200602 Range Thermocouple 24" produces a minute electrical signal when the sensing tip is heated by a flame, and this signal can be used by the control system to sense the presence of a flame. Its length of 24 inches and diameter of 9 mm are extended to the heat source and generate the necessary 20 -30 mV output. This thermocouple is fitted in the combustion chamber of suitable Garland equipment, and the sensing element is placed in the flame path, and the lead is connected to the gas valve or controller.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 6 in
  • Height: 0.7 in
  • Width: 3 in

GARLAND:

GL2200602

Step1: Turn off oven power and gas supply, and allow unit to cool completely to ensure safety.

Step2: Remove access panel and place existing thermocouple near burner assembly.

Step3: Disconnect old threaded thermocouple using proper tools.

Step4: Install SIT Type thermocouple, hand-tighten then secure.

Step5: Reconnect leads and ensure proper alignment and secure fit.

Step6: Restore power and test ignition and flame sensing for proper operation.

  • What maintenance is required for the Garland 2200602 Thermocouple?

    Inspect the thermocouple for grease buildup, corrosion, or loose connections that could impact performance. Clean the sensing tip to ensure accurate flame detection. Verify proper placement in the pilot flame. Always disconnect the gas supply before servicing to ensure better handling.

  • What are common issues with the Garland 2200602 Thermocouple?

    • Pilot flame not staying lit accurately.
    • Low or unstable millivolt output.
    • Misalignment with the pilot flame.
    • Worn or damaged thread connections.
    • Residue buildup affecting sensing accuracy.
