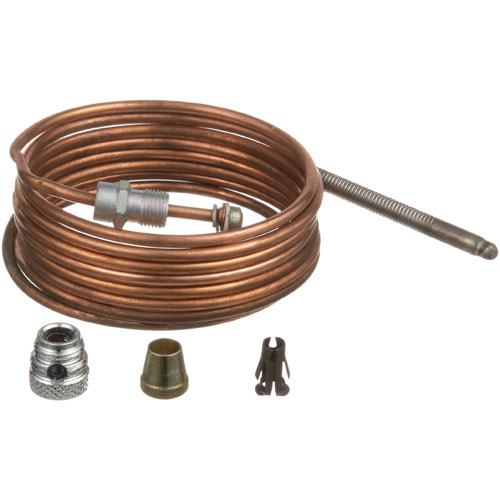

Imperial 1265 Coaxial Thermocouple 72" 20-30mV

SKU: 1265 1-1265 Brand:
Imperial
Availability:
In Stock
(1)
$37.53 Price reduced from $48.75
Save $11.22
Have a Question? +1 (866) 863-0907

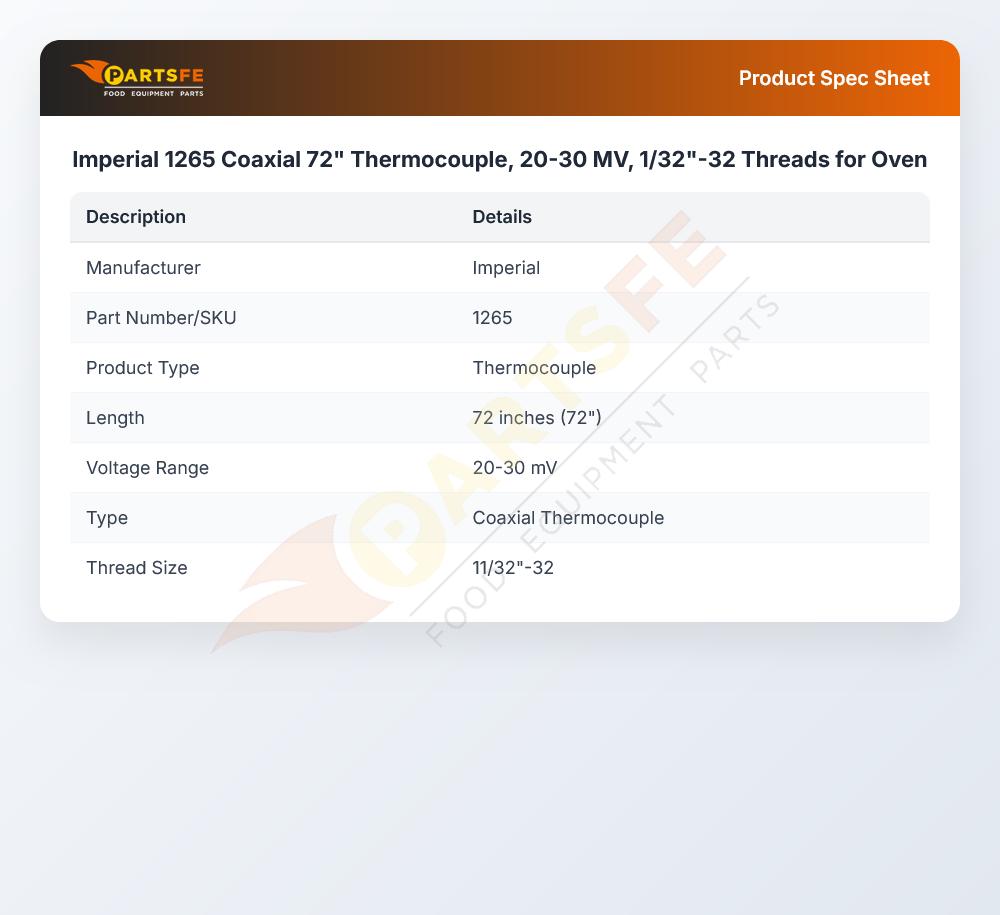

Specifications:

  • 1970 Series, 72" Thermocouple, 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32.
  • Imperial
  • Oven Where Applicable

Description

The Imperial 1265 Coaxial Thermocouple 72" 20-30 mV is a part that is used to measure temperature in gas appliances in such a way that it produces a small electrical signal when it is exposed to heat. The signal is transmitted to the control system of the appliance, where it can detect and react to the burner temperature change. This thermocouple is a thermocouple that is installed close to the flame or heat source and is extended to the control connection in such a way that it can easily sense the temperature.

Dimensions:

  • Weight: 0.22 lbs
  • Length: 4 in
  • Height: 2.75 in
  • Width: 1 in

Step1: Turn off the appliance and allow it to cool.

Step2: Remove the old thermocouple by loosening the connection at the gas valve and burner.

Step3: Insert the new thermocouple in the same position.

Step4: Secure the threaded end to the gas valve.

Step5: Check the tip alignment with the flame.

Step6: Restore power/gas and test operation safely.

  • What maintenance is required for the Imperial 1265 Thermocouple?

    Check the thermocouple for soot, corrosion, or physical damage. Clean gently and confirm secure electrical connections. Always disconnect gas or power before servicing. Proper maintenance ensures accurate flame sensing and stable appliance operation.

  • What are common issues with the Imperial 1265 Thermocouple?

    • Burners may fail to light or extinguish unexpectedly.
    • Inaccurate flame detection due to contamination or damage.
    • Loose or corroded terminals at the control module.
    • Delayed response to temperature changes.
    • Calibration drift is causing inconsistent flame operation.
