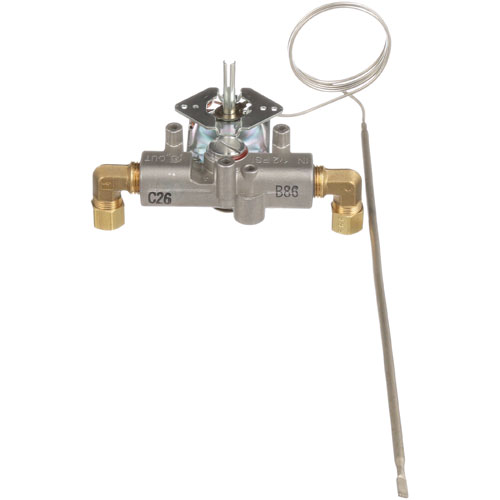

Southbend 1195304 Range Gas Thermostat Cap 30" Bulb 11-1/2" X 3/16" 3/8" 600°F
Specifications:
- Thermostat, Gs, 600F
- Cap = 30", Bulb = 11-1/2" X 3/16", 3/8" Cct In/Out (90
- Degrees Off Outlet)
- Southbend
Description
Dimensions:
- Weight: 0.81 lbs
- Length: 13 in
- Height: 3 in
- Width: 6 in
This Part Fits the Following Models
2 modelsProvides mechanical control of gas flow for temperature regulation. The Southbend 1195304 Gas Thermostat responds to temperature changes through its sensing bulb and adjusts the gas supply to the burner to maintain the selected cooking temperature. The thermostat features a 30-inch capillary, 11-1/2" x 3/16" sensing bulb, and 3/8" CCT inlet and outlet connections with a 90° offset outlet.
Equipment Compatibility:
Designed for use with Southbend equipment requiring a gas thermostat for temperature control of the cooking or heating system.
Product Specifications:
Manufacturer: Southbend
SKU: 1195304
Product Type: Gas Thermostat
Maximum Temperature: 600°F
Capillary Length: 30"
Bulb Size: 11-1/2" x 3/16"
Connection Type: 3/8" CCT Inlet/Outlet
Key Features:
- Regulates gas flow in response to temperature conditions.
- Provides temperature-responsive control of the burner gas supply.
- Functions as part of the mechanical gas control system.
- Supports adjustable cooking temperature control.
The thermostat was not responding accurately to temperature changes, and replacing it helped restore consistent gas regulation and temperature control.
SOUTHBEND:
Step1: Shut off gas and electrical supply and let the range cool completely, wear protective gloves.
Step2: Remove control panel to access thermostat and sensing bulb assembly.
Step3: Label and disconnect wiring terminals to avoid incorrect reconnection.
Step4: Remove old thermostat and mount the new unit securely in place.
Step5: Insert sensing bulb into the tube or well without kinks or strain.
Step6: Reconnect wiring, restore gas and power, then test ignition, temperature control, and safety cutoff operation.
-
What maintenance is required for the Southbend 1195304 Gas Thermostat?
Regularly inspect the range capillary tube and sensing bulb for damage, as they control gas flow and temperature accuracy. Keep the thermostat area clean from grease buildup. Check connections for tightness and corrosion. Always shut off gas and power before servicing to ensure better maintenance.
-
What are common issues with the Southbend 1195304 Gas Thermostat?
- Failure to regulate gas flow properly.
- Damaged capillary or sensing bulb affecting accuracy.
- Delayed or no response to temperature adjustments.
- Internal damage causing intermittent operation.
