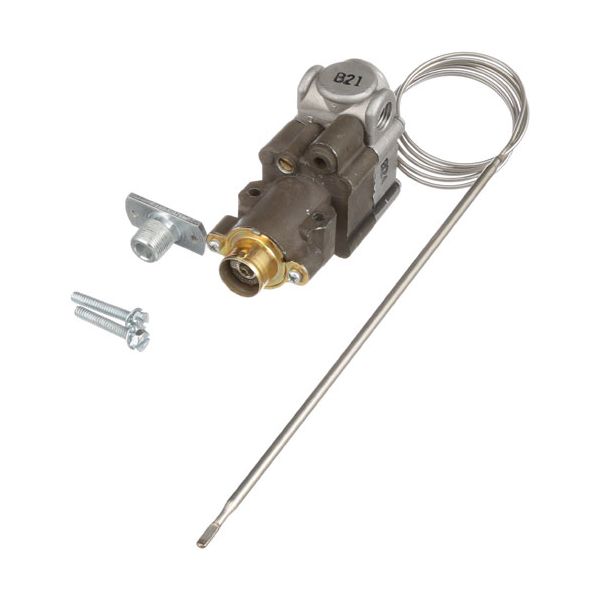

Southbend 1174709 RangeThermostat Kit W/ 250°F - 500°F BJWA

Rating:
5 5 7
7  Reviews Add Your Review
Special Price $424.11 Regular Price $826.73
In stock
SKU
1174709
Add to Wish List
Electrical & Hardware, Thermostats, Shop by manufacturers
Manufacturer:
The Southbend 1174709 Range Thermostat Assembly is a temperature control part that is installed in commercial cooking ranges to regulate heat outputs by controlling the heat on/off button. It works by monitoring the temperature of ovens inside and modulating the burner to ensure the same cooking conditions. This thermostat assembly is used in gas ranges, and ovens and is necessary to provide accurate thermal control needed in food preparation in restaurant and kitchens.

Dimensions

  • Length: 9 In
  • Width: 1.7 In
  • Height: 3 In
  • Weight: 0.73 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1174709-rangethermostat-kit-w-250-f-500-f-bjwa-85117-2.jpg

Product Notes

  • Thermostat, Bjwa Kit,[Off-L0-250-500] Housing Rotation
  • 180°,Outlet Position "B", Outlet Size 1/4", 36" Cap Tube,
  • 3/16 X 7-1/2" Bulb. W/By-Pass Adjustment.
  • For Knob Use Ap# 22-1381 Oven
  • For Southbend Models~
  • 360Aa,Ad,Dd-2Rr~
  • 4241C,E~
  • 424E,4361A-1G,2C,2G-T~
  • 4361,1G,2C,Eg-T~
  • 4361D,1G,2C,2G-T~
  • 4361R~
  • 4362A,2C~
  • 4362C,2C~
  • 4362D,2C~
  • 4362R~
  • 4363A,C,D,R~
  • 4364A,C,D,R,~
  • 4365A,C,D,R~
  • 4366A,C,D,R~
  • 4367A,C,D,R~
  • 436A,1Gl,2Gl,2Gr,2Tl,2Tr,3C,3G,
  • 3G-T,3T~
  • 436C-3C,3G-T~
  • 436D,1Gl,2Gl,2Gr,2Tr,3C,3G,3G-T,3T~
  • 4481Ac-2C,2G-T,3G-T~
  • 4481Dc,2C,2G-T,3G-T~
  • 4481Ee,Ec,2G-T,3G-T~
  • 4482Ac-3C~
  • 4482Dc-3C, 4482Ee-3C, 448Ac-4G-T, 448Dc-4G-T,
  • 448Ee,2Gl,2Gr,2Tl,2Tr,3Gl,3Gr,3Tl,3Tr.4G-T,Hh~
SOUTHBEND:
Reviews 7
Write Your Own Review
You're reviewing:Southbend 1174709 RangeThermostat Kit W/ 250°F - 500°F BJWA
Your Rating
FAQS
Customer Questions
What maintenance is required for the Southbend 1174709 Thermostat Kit?

Inspect the thermostat kit regularly for dirt, corrosion, or loose electrical connections. Cleaning and checking calibration ensure accurate temperature control. Routine maintenance prevents uneven heating, reduces wear, and supports safe, reliable operation.

What are the common issues with the Southbend 1174709 Thermostat Kit?

  • Inaccurate temperature regulation during cooking
  • Thermostat failing to cycle burners properly
  • Temperature settings not matching the actual oven heat
  • Capillary tube damage is interfering with temperature sensing
  • Delayed response to temperature adjustments.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the power to the appliance to prevent electric shock.

Step2: Remove the old thermostat by disconnecting wires and unscrewing mounting hardware.

Step3: Compare the new thermostat with the old one to ensure compatibility.

Step4: Attach the new thermostat using screws and reconnect the wires exactly as before.

Step5: Secure any covers and ensure no wires are exposed.

Step6: Restore power and test the range to confirm proper operation.

Step7: Follow all safety guidelines in the manufacturer’s manual.
