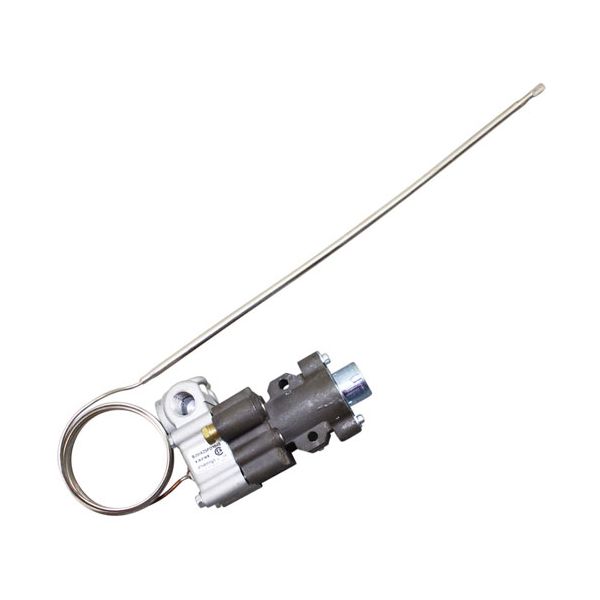

Vulcan Hart 00-417424-000G5 Griddle Thermostat Assembly BJWA

Rating:
5 5 1
1  Review Add Your Review
Special Price $176.91 Regular Price $272.58
In stock
SKU
00-417424-000G5
Add to Wish List
Oven Parts, Oven Thermostats, Shop by manufacturers
Manufacturer:
The Vulcan Hart 00-417424-000G5 Range Thermostat BJWA is a highly efficient, precision temperature control device for use with ovens in commercial kitchen applications. The 3/16" x 11" bulb and 48" capillary tube results in precise temperature regulation from 250°F to 550°F, making this a better thermostat for all sorts of cooking methods, including baking and broiling. The 90-degree clockwise rotation makes it easy to adjust, and the distinctive black oven dial and red oven dial allow for clear visibility which increases operational efficiency. This thermostat will work with Vulcan oven series 59, 64, 70, etc.

Dimensions

  • Length: 11 In
  • Width: 4.5 In
  • Height: 11 In
  • Weight: 1 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-00-417424-000g5-range-thermostat-bjwa-3-16-x-11-48-cap-23466-2.jpg

Product Notes

  • Viewed From Rear:See "Bj Outlet Positions" Image
  • [ Type - Bjwa ] [ Temp Low-550 ] [ Bulb 3/16 X 11 ]
  • [Cap 48 ] [Rotation 90 Cw, 1/4"Npt Out "D" ]
  • 3/16" Cct Pilot,
  • Black Oven Dial # 22-1028, Off-Low-250-550-Broil
  • Red Oven Dial # 22-1213, Off-Low-250-500
  • Black Bj T'Stat Knob, [ 2" Dia ] [ Off-Low-250-500]
  • [Mount 11/16"] [ Notch Down ], 5/8" Protrusion On Back Of
  • Knob # 22-1210
  • Vulcan Oven Series 59, 64, 70, Eg60
  • Standard Oven 24, 36, 48, 60, 148, 160, 260, (L,)
  • Eg, Vg
Write Your Own Review
You're reviewing:Vulcan Hart 00-417424-000G5 Griddle Thermostat Assembly BJWA
Your Rating
FAQS
Customer Questions
What maintenance is required for the Vulcan Hart 00-417424-000G5 Thermostat Assembly?

Inspect griddle thermostat wiring connections and calibration regularly. Clean external contacts to prevent grease buildup affecting sensing accuracy. Ensure secure mounting to maintain temperature consistency. This helps prevent uneven heating and control failures during operation.

What are common issues with the Vulcan Hart 00-417424-000G5 Thermostat Assembly?

  • Inaccurate griddle temperature readings due to sensor wear.
  • Intermittent heating from faulty wiring connections.
  • Thermostat failure causing inconsistent griddle temperatures.
  • Sticking or unresponsive control knob mechanism.
  • Loss of calibration leading to uneven heat zones.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and gas supply, and ensure griddle is completely cool before servicing.

Step2: Remove front control panel to access thermostat assembly carefully.

Step3: Note wiring positions clearly and disconnect electrical leads carefully.

Step4: Unscrew mounting hardware and remove faulty old thermostat assembly.

Step5: Install new thermostat Assembly, secure mounting and reconnect wiring as labeled.

Step6: Reassemble control panel, restore power, and test temperature calibration for safe operation.
